CuRveS / IQ TID
IndIquest
Technical Installation Data

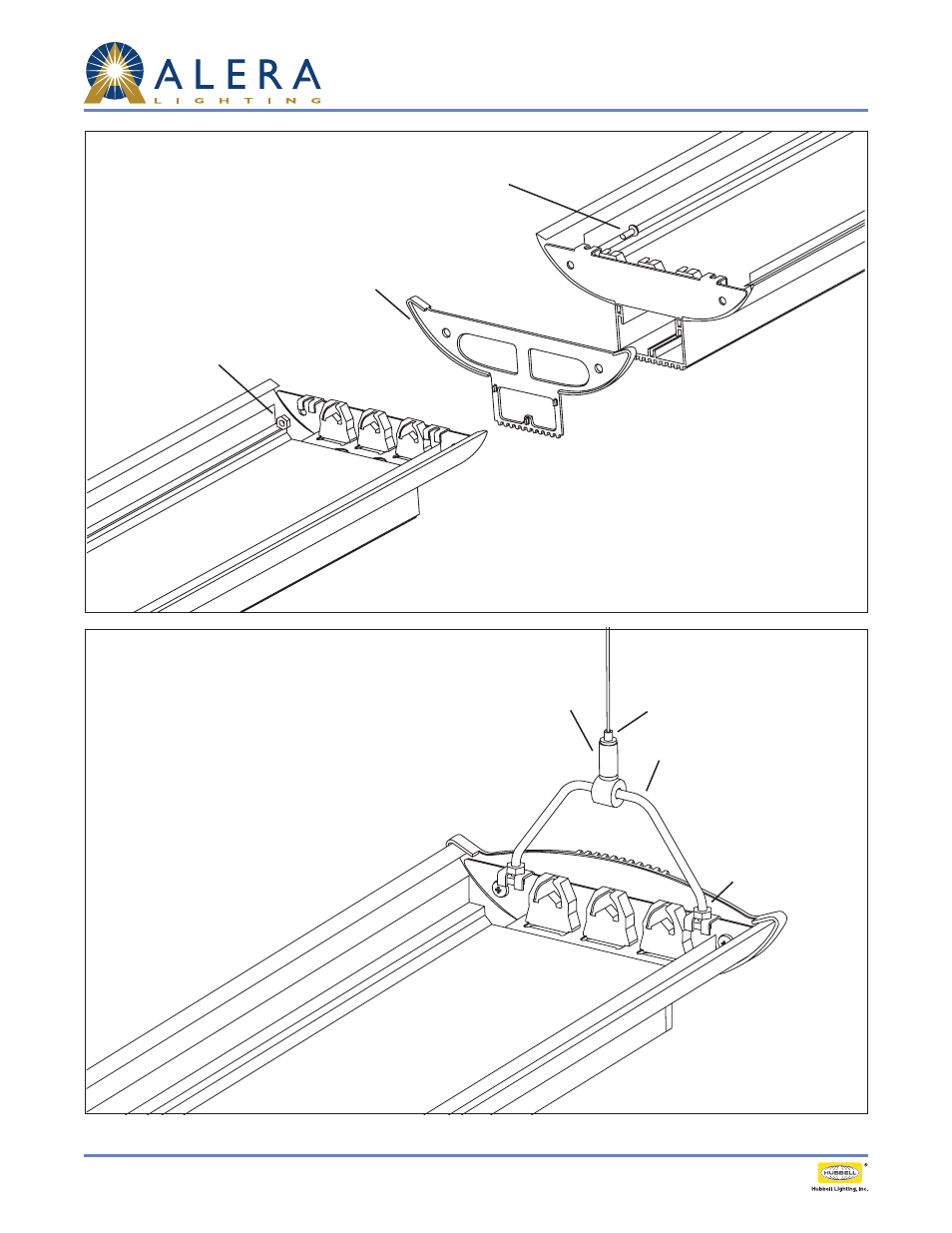

Connection Instructions:
1. Install first fixture of row with two hangers.
2. Place bolts through openings in internal end cap.
3. Slide diecast coupler over end of fixture with bolts.
4. Slide other fixture onto bolts and attach nuts.
5. Repeat steps 2, 3 and 4 until row is complete.
6. At the end of the row attach diecast end caps with
appropriate nuts.
Suspension Instructions:
1. Set bottom nut to desired fixture height.
2. Slide cable hanger into hanger slot
3. Secure and tighten upper nut.
4. Push plunger down to adjust cable to proper
suspension. Cut excess cable.
5. For fine-tuning of fixture balance, slide knuckle across
yoke. Hand tighten cable gripper to lock in place.
SCREW 10-32 × 1/2"
Nut 10-32
Diecast Coupler
Nut
Yoke
Plunger
Cable Gripper
