MAxiM
Technical Installation Data

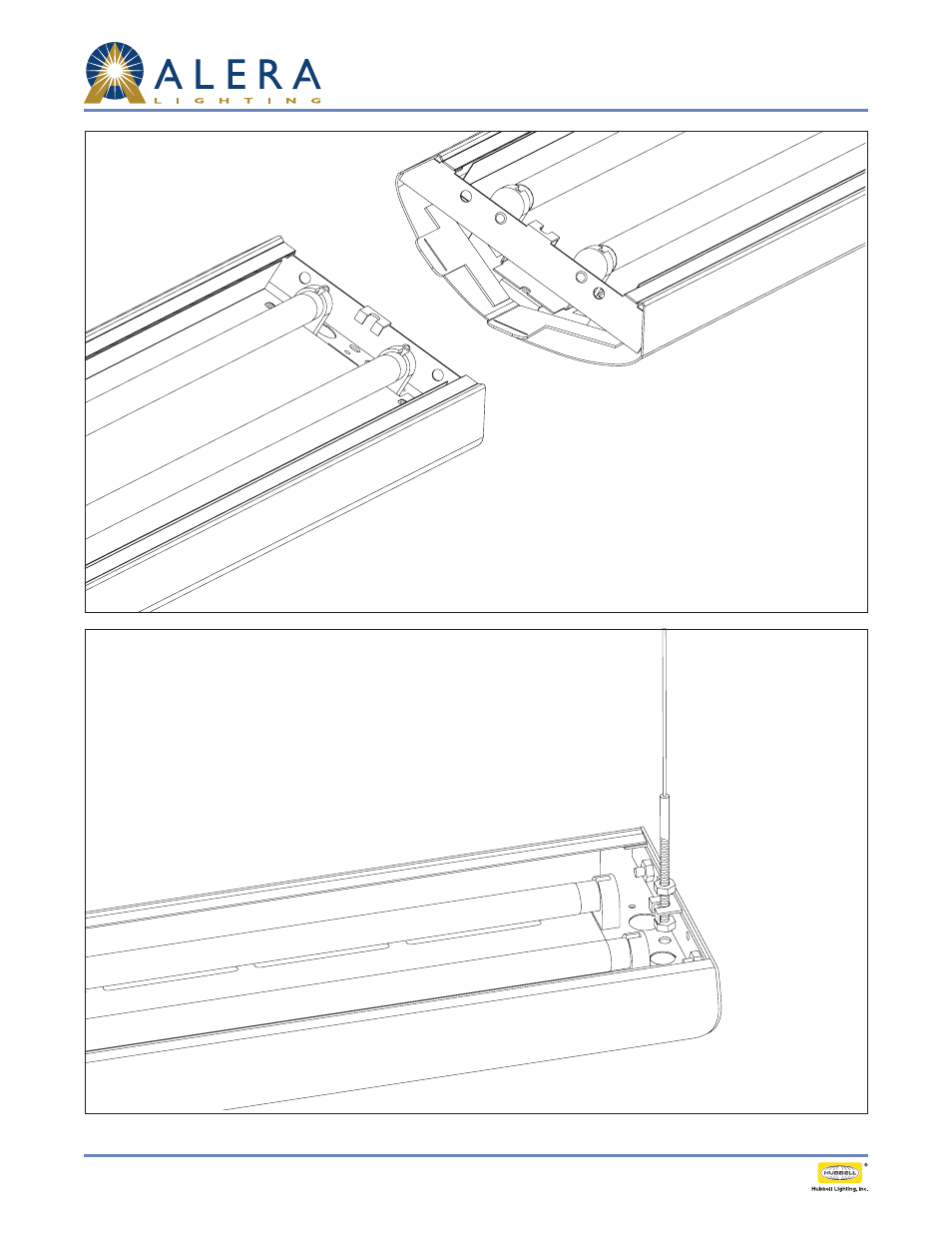

Connection Instructions:
1. Install first fixture of row with two hangers.
2. Engage the aligner fingers at the joint by rotating the next
fixture into position and then attaching hanger.
3. Secure and adjust fixture joints with two bolts and nuts.
4. Repeat steps 2 and 3 until row is complete.
5. At the end of the row, bend the three aligner fingers into the
fixture housing.
6. Attach and align end cap with 2 nuts.
Suspension Instructions:
1. Set bottom nut to desired fixture height.
2. Adjust upper nut for a minimum of 3/8" between
upper and lower nuts.
3. Slide cable hanger into hanger slot.
4. Secure and tighten upper nut.
