Page 2/2 Rev. 01/15/10 CuRveS / CV WM TID
Curv Wall Mount
Technical Installation Data

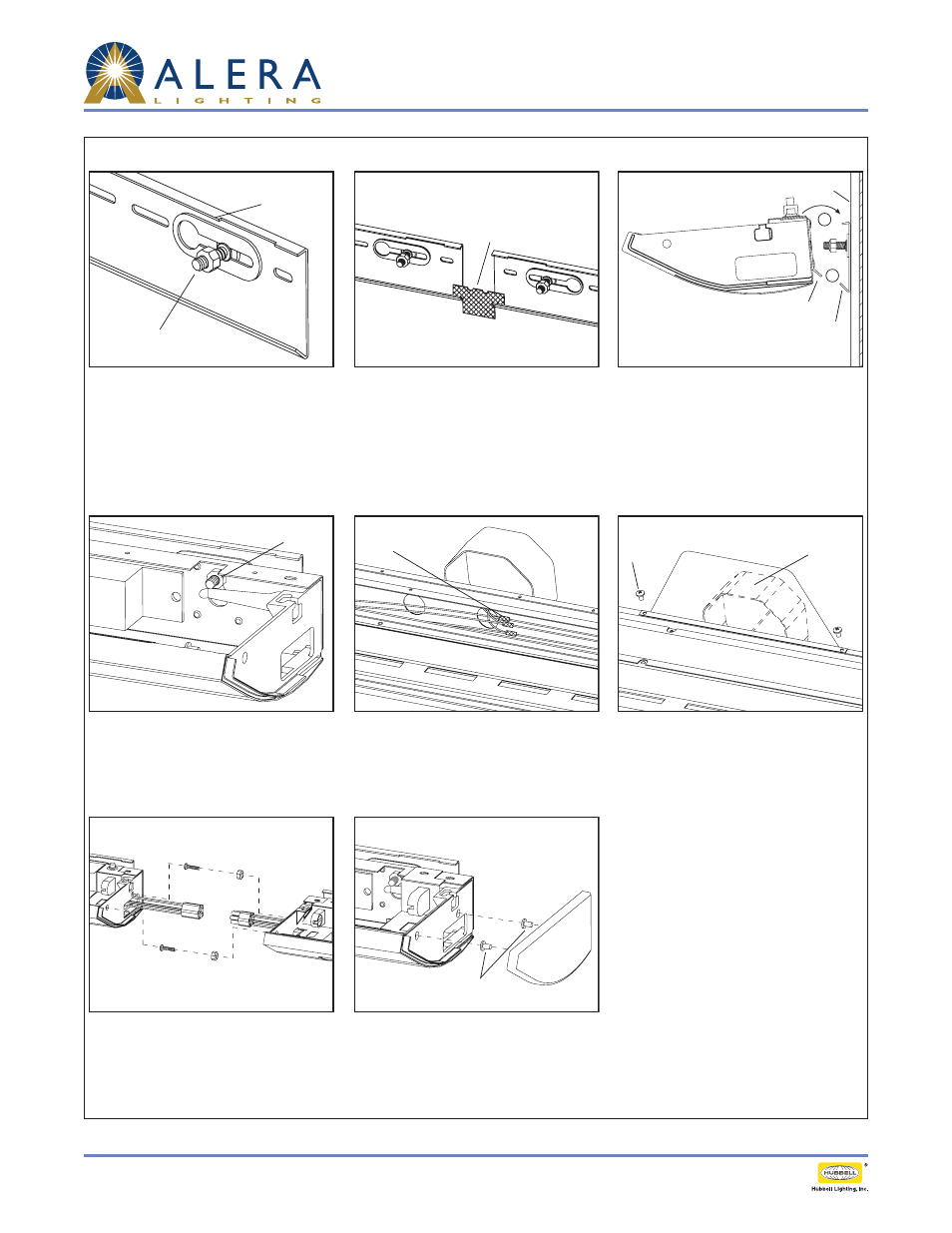

Step 1
Using mounting information and data chart from
previous page, install bracket to wall using continuous
slots. Ensure bracket is level. Insert stud/nut assembly
into hole on embossed slots of mounting bracket and
slide to edge of flange.
Step 2
Place spacer into v-groove to align and install next
wall bracket. Continue mounting brackets until row is
complete.
Step 3
Remove ballast cover on fixture. Slip cleat into lower
v-groove on mounting bracket (1) and push stud
through keyhole slot (2).
Step 4
Level fixtures by adjusting nut on stud at each end of
fixture.
Step 5
Pull wires from J-box into fixture housing and splice to
harness as required.
Step 6
Install J-Box cover to mounting bracket with screws as
required.
Step 7
Repeat step 3 for next fixture. Connect harness plugs
together. Slide fixture to mate with previous fixture in
row. Secure fixtures using supplied nut and bolt.
Step 8
When all fixtures in row have been installed and leveled,
slide bracket into internal end cap as shown. Attach and
align external end cap with screws provided. Replace all
ballast covers.
Groove
Wall
End of Flange
Wire Connectors
J-Box
Screw
Clip
Stud/Nut Assembly
Spacer
Cleat
Nut
Bracket
Screws
1
2
