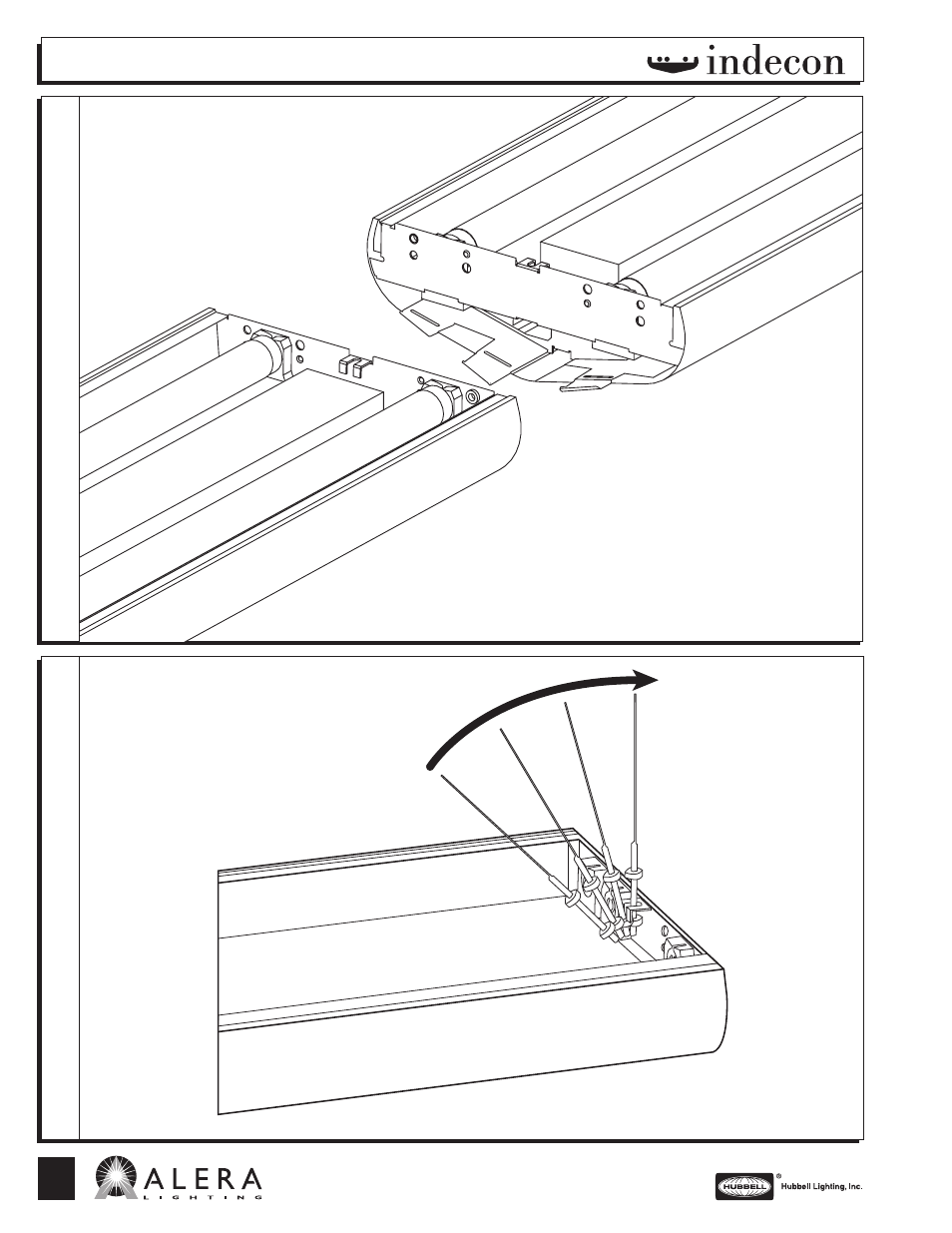

Connection Instructions:
1. Install first fixture of row with two hangers.
2. Engage the aligner fingers at the joint by
rotating the next fixture into position and
then attaching hanger.
3. Secure and adjust fixture joints with two
bolts and nuts.
4. Repeat steps 2 and 3 until row is
complete.
5. At the end of the row, bend the three
aligner fingers into the fixture housing.
6. Attach and align end cap with 2 nuts.
Suspension Instructions:
1. Set bottom nut to desired fixture
height.
2. Adjust upper nut for a minimum of 3 /
8
″
between upper and lower nuts.
3. Slide cable hanger into hanger slot.
4. Secure and tighten upper nut.
A
LL
P
ERFORATED
H
OUSING
