Alera Lighting ASC - Wall Mount User Manual

Page 2

ECHNICAL

NSTALLATION

ATA

19-2.1

AL 09/07

, W

ALL

OUNT

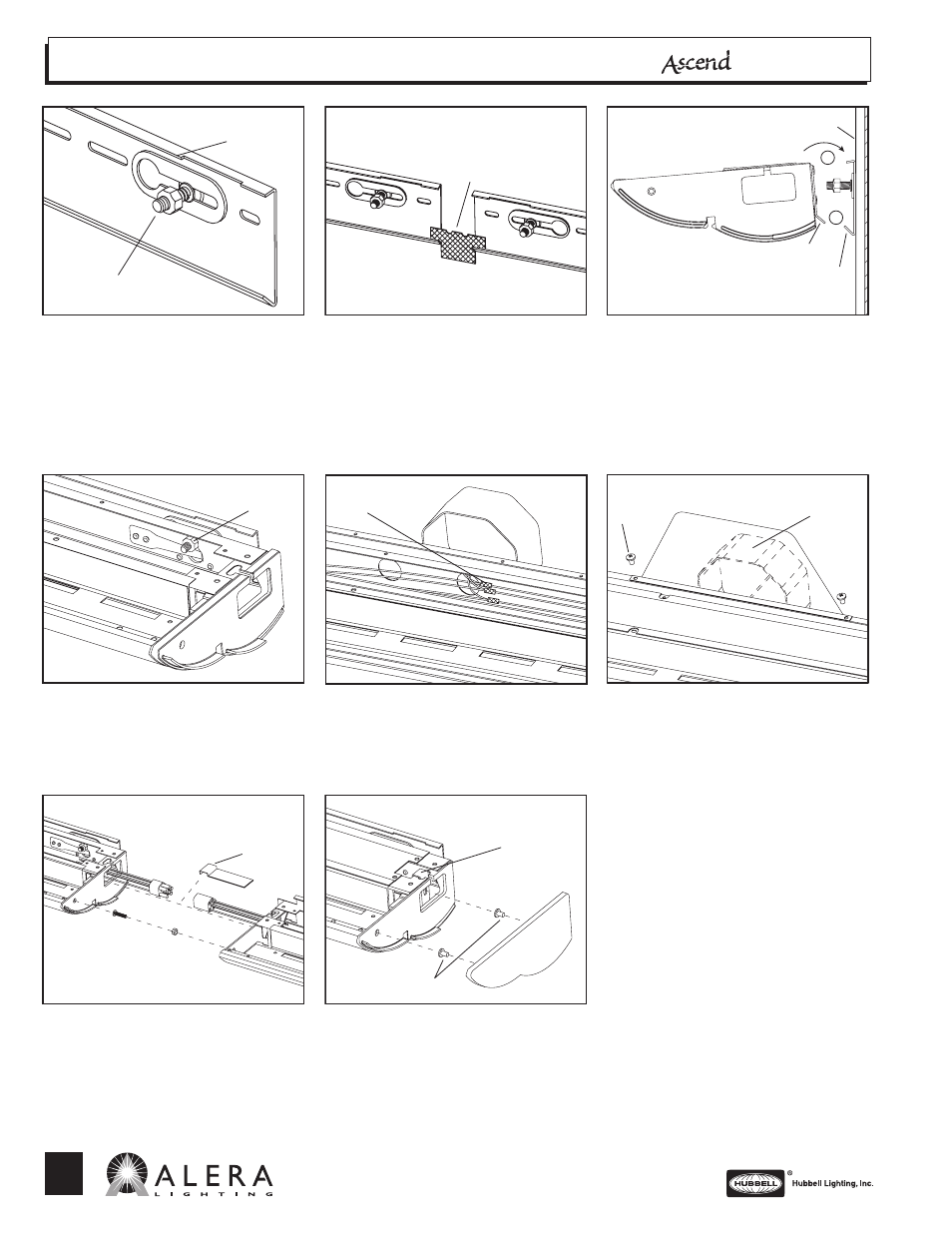

Step 1

Using mounting information and data chart
from previous page, install bracket to wall
using continuous slots. Ensure bracket is
level. Insert stud/nut assembly into hole on
embossed slots of mounting bracket and slide
to edge of flange.

Step 2

Place spacer into v-groove to align and install
next wall bracket. Continue mounting brackets
until row is complete.

Step 3

Remove ballast cover on fixture. Slip cleat
into lower v-groove on mounting bracket (1)
and push stud through keyhole slot (2).

Step 4

Level fixtures by adjusting nut on stud at each
end of fixture.

Step 5

Pull wires from J-box into fixture housing and
splice to harness as required.

Step 6

Install J-box cover to mounting bracket with
screws as required.

Step 7

Repeat step 3 for next fixture. Connect
harness plugs together. Slide fixture to mate
with previous fixture in row. Secure fixtures
using supplied nut and bolt. Snap wire
channel clip on bottom edge of wireway as
shown.

Step 8

When all fixtures in row have been installed
and leveled, slide bracket into internal end cap
as shown. Attach and align external end cap
with screws provided. Replace all ballast
covers.

Edge of Flange

Stud/Nut
Assembly

Spacer

Wall

Cleat

Groove

Nut

Screw

J-box

Clip

Bracket

Screws

Wire
Connectors
