15-1.1
C

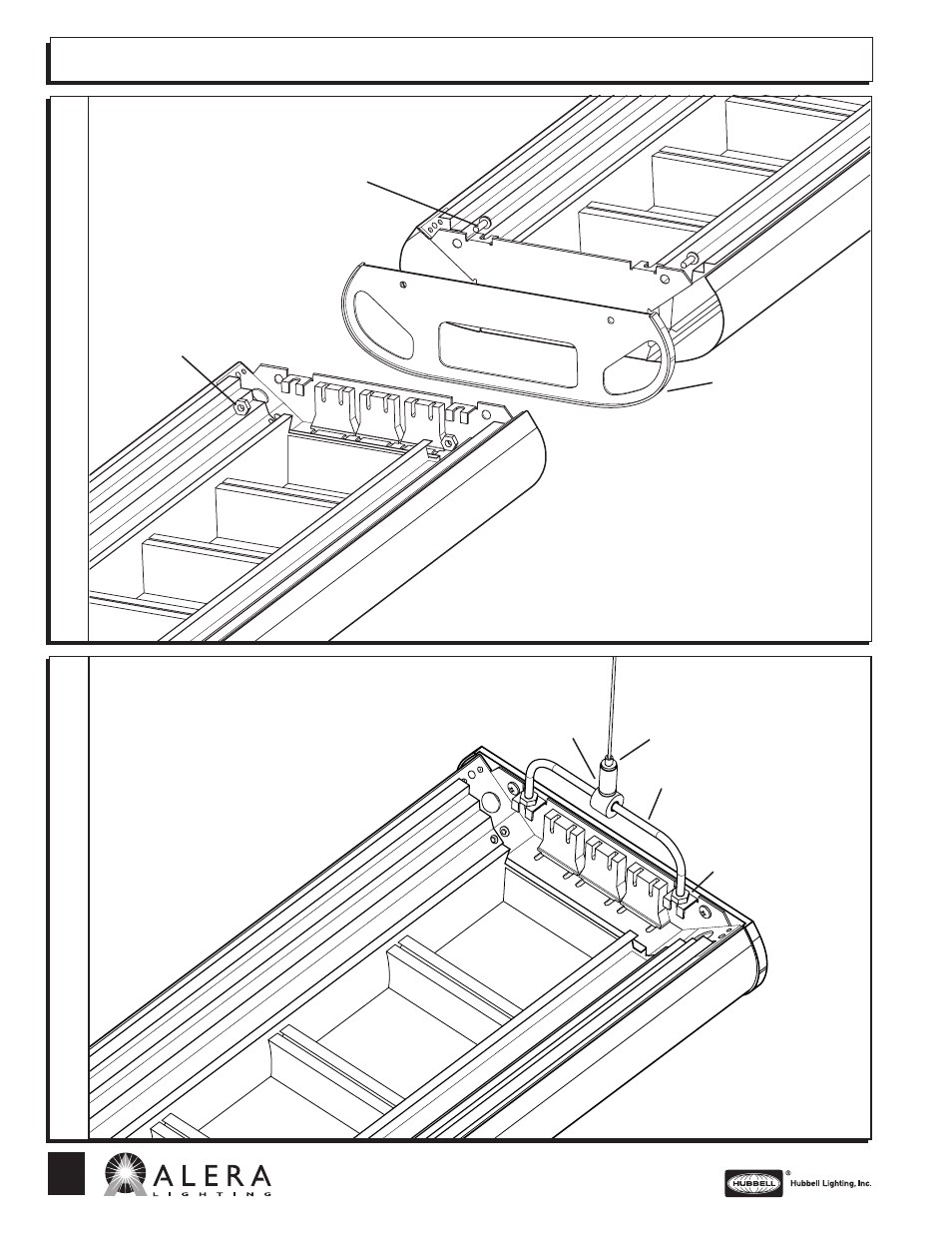

Suspension Instructions:
1. Set bottom nut to desired fixture height.
2. Slide cable hanger into hanger slot.
3. Secure and tighten upper nut.
4. Push plunger down to adjust cable to
proper suspension. Cut excess cable.
5. For fine-tuning of fixture balance, slide
knuckle across yoke. Twist cable
gripper to lock in place.
Connection Instructions:
1. Install first fixture of row with two hangers.
2. Place bolts through openings in internal end cap.
3. Slide diecast coupler over end of fixture with bolts.
Screw bolts through threaded holes in coupler to
retain coupler.
4. Slide other fixture onto bolts and attach nuts.
5. Repeat steps 2, 3 and 4 until row is complete.
6. At the end of the row attach diecast end caps with
appropriate nuts.
Diecast Coupler
Plunger
Cable
Gripper
Yoke
Nut
SCREW 10-32 X 1 /
2
″
PART #136710
NUT 10-32
PART #112392
