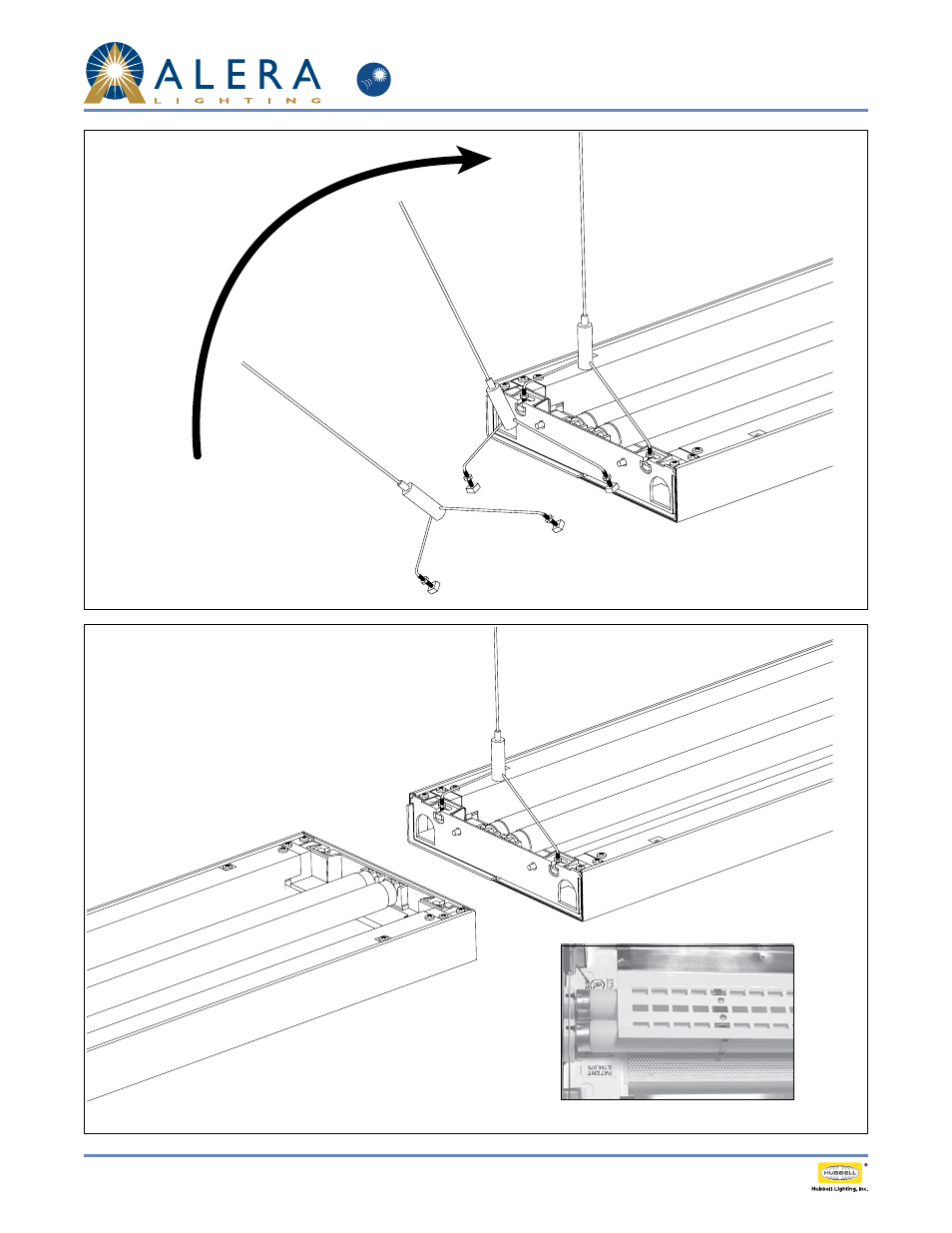

Suspension Instructions:
1. Set bottom nut to desired fixture height.
2. Adjust upper nut for a minimum of 3/8"
between upper and lower nuts.
3. Slide cable hanger into hanger slot.
4. Secure and tighten upper nut.
Connection Instructions:
1. Install first fixture of row with two hangers.
2. Slide inner die cast plates together.
3. Secure fixture joints with two bolts and nuts and attach hanger
at opposite end.
4. Repeat steps 2 and 3 until row is complete.
5. At each end of the row, attach and align end cap with screws.
Center upper reflector and clip directly onto lamps
