Page 2/2 Rev. 08/28/12 curves / PAL ArchitecturAL sensors tiD
Paleta
installed Architectural sensors technical installation Data
© 2012 Alera Lighting, a division of Hubbell Lighting, Inc. Because of continuing product improvement programs, Alera Lighting reserves the right to change specifications
without notice. 701 Millennium Blvd. Greenville, SC 29607 / Tel 864.678.1000 / Website www.aleralighting.com
A
R
C
H
IT
E C T
U R A L S
E
N
S
O
R
S

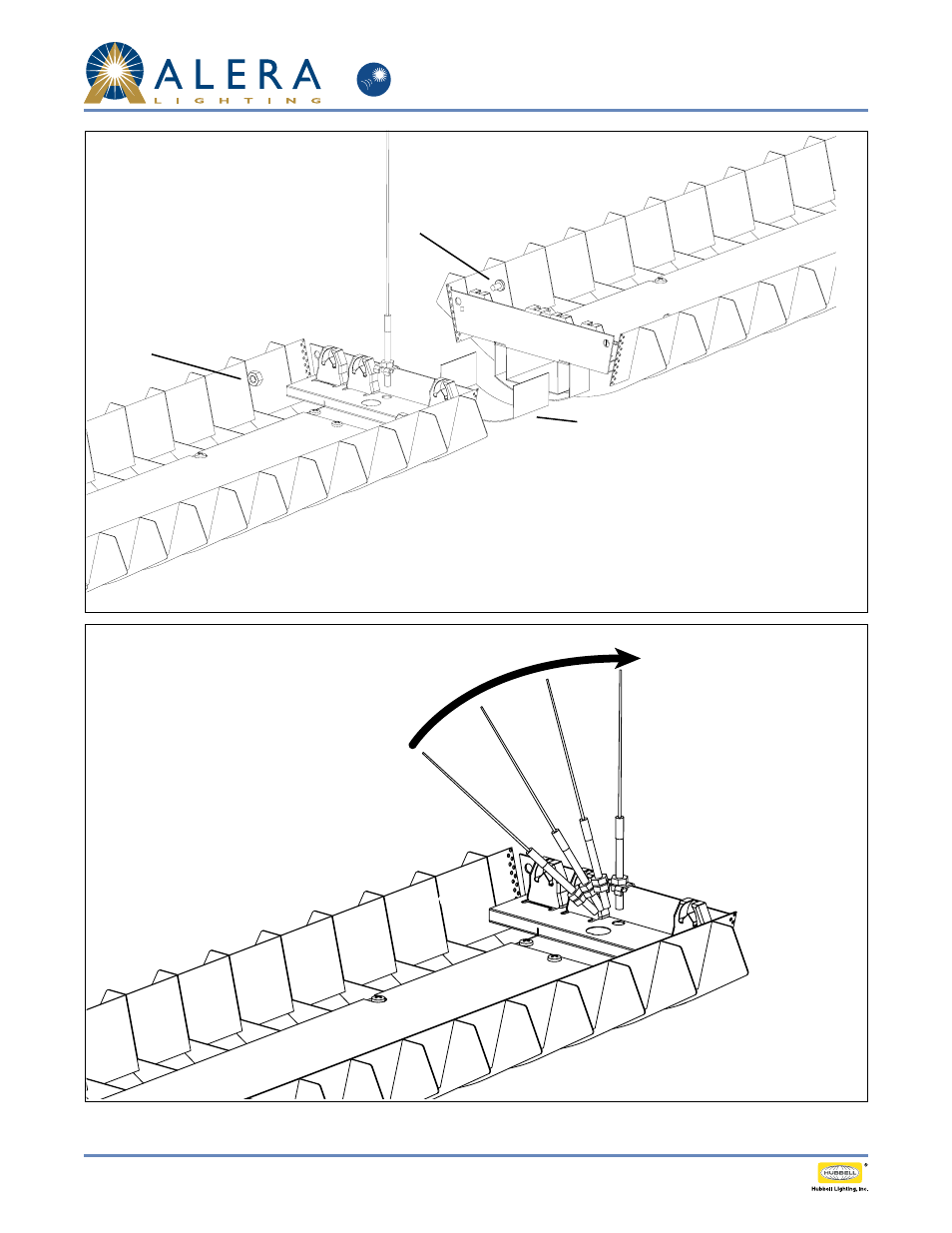

Suspension Instructions:
1. Set bottom nut to desired fixture height.
2. Adjust upper nut for a minimum of 3/8" between upper
and lower nuts.
3. Slide cable hanger into hanger slot.
4. Secure and tighten upper nut.
Connection Instructions:
1. Install first fixture of rows with two hangers.
2. Slide aligner into channel.
3. Attach next fixture with nuts and bolts.
4. Repeat steps 2 and 3 until row is complete.
5. At each end of the row, attach end caps with
appropriate nuts.
Nut 10-32
Aligner
Screw 10-32 Ч 1/2"
