curves / NPLS ArchitecturAL SeNSorS tiD

Nevis Plus liso

installed Architectural Sensors technical installation Data

© 2012 Alera Lighting, a division of Hubbell Lighting, Inc. Because of continuing product improvement programs, Alera Lighting reserves the right to change specifications
without notice. 701 Millennium Blvd. Greenville, SC 29607 / Tel 864.678.1000 / Website www.aleralighting.com

A

R

C

H

IT

E

C T

U R A L S

E

N

S

O

R

S

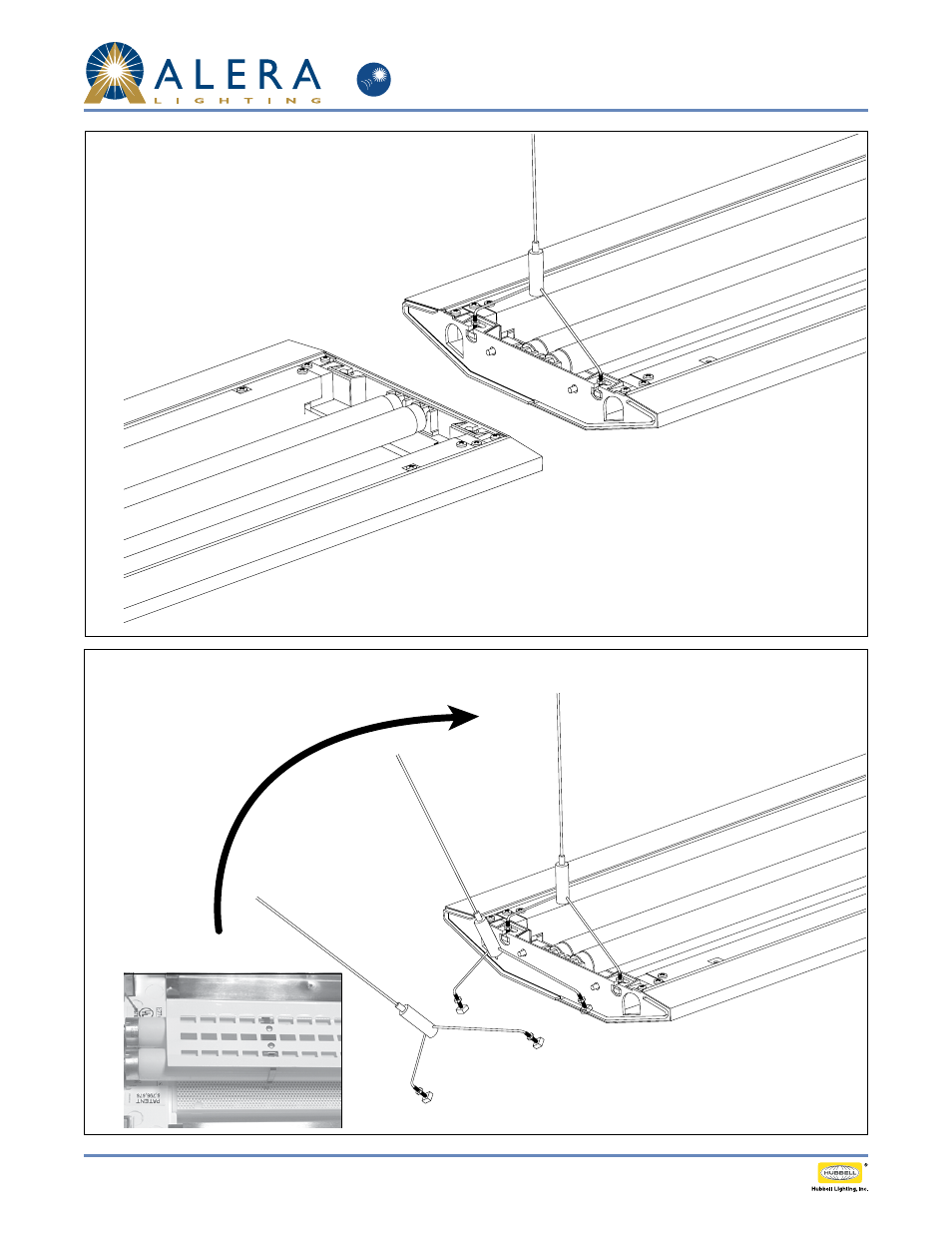

Connection Instructions:

1. Install first fixture of row with two hangers.
2. Slide inner die cast plates together.
3. Secure and adjust fixture joints with two bolts and nuts and

attach hanger at opposite end.
4. Repeat steps 2 and 3 until row is complete.
5. At the end of the row, attach and align endcap with two screws.

Suspension Instructions:

1. Set bottom nut to desired fixture height.
2. Adjust upper nut for a minimum of 3/8" between

upper and lower nuts.
3. Slide cable hanger into hanger slot.
4. Secure and tighten upper nut.

Center upper reflector and clip directly onto lamps.
