Installed Architectural Sensors Technical Installation Data A
R
C
H
IT
E C T
U R A L S
E
N
S
O
R
S

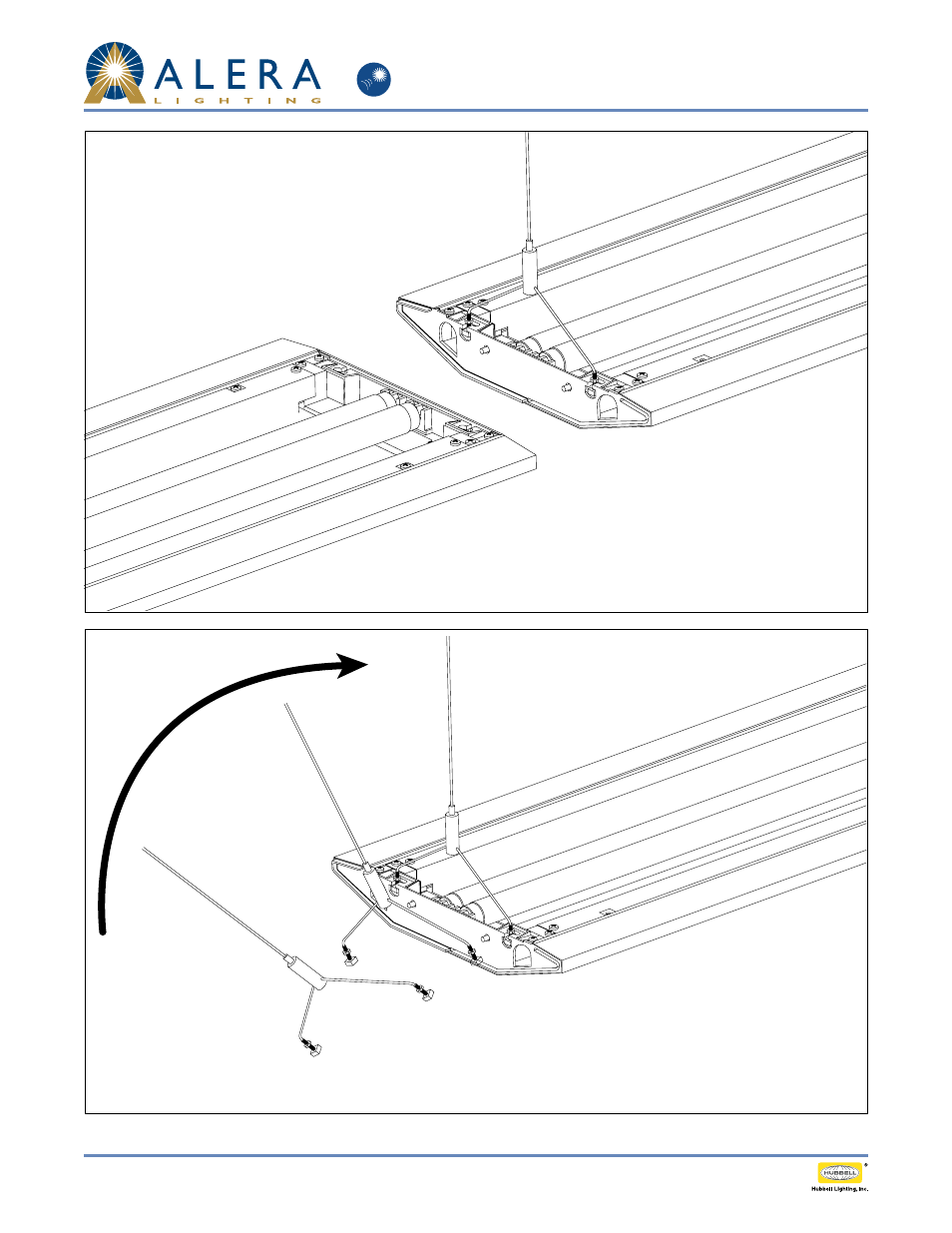

Suspension Instructions:
1. Set bottom nut to desired fixture height.
2. Adjust upper nut for a minimum of 3/8" between
upper and lower nuts.
3. Slide cable hanger into hanger slot.
4. Secure and tighten upper nut.
Connection Instructions:
1. Install first fixture of rows with two hangers.
2. Slide inner die cast plates together
3. Secure fixture joints with two bolts and nuts and
attach hanger at opposite end.
4. Repeat steps 2 and 3 until row is complete.
5. At each end of the row, attach and align endcap with
two screws.
