Page 2/2 Rev. 08/28/12 curves / CPLS arChiteCturaL SenSorS tiD
Curv Plus liso
installed architectural Sensors technical installation Data
© 2012 Alera Lighting, a division of Hubbell Lighting, Inc. Because of continuing product improvement programs, Alera Lighting reserves the right to change specifications
without notice. 701 Millennium Blvd. Greenville, SC 29607 / Tel 864.678.1000 / Website www.aleralighting.com C
A
R
C
H
IT
E C T
U R A L S
E
N
S
O
R
S

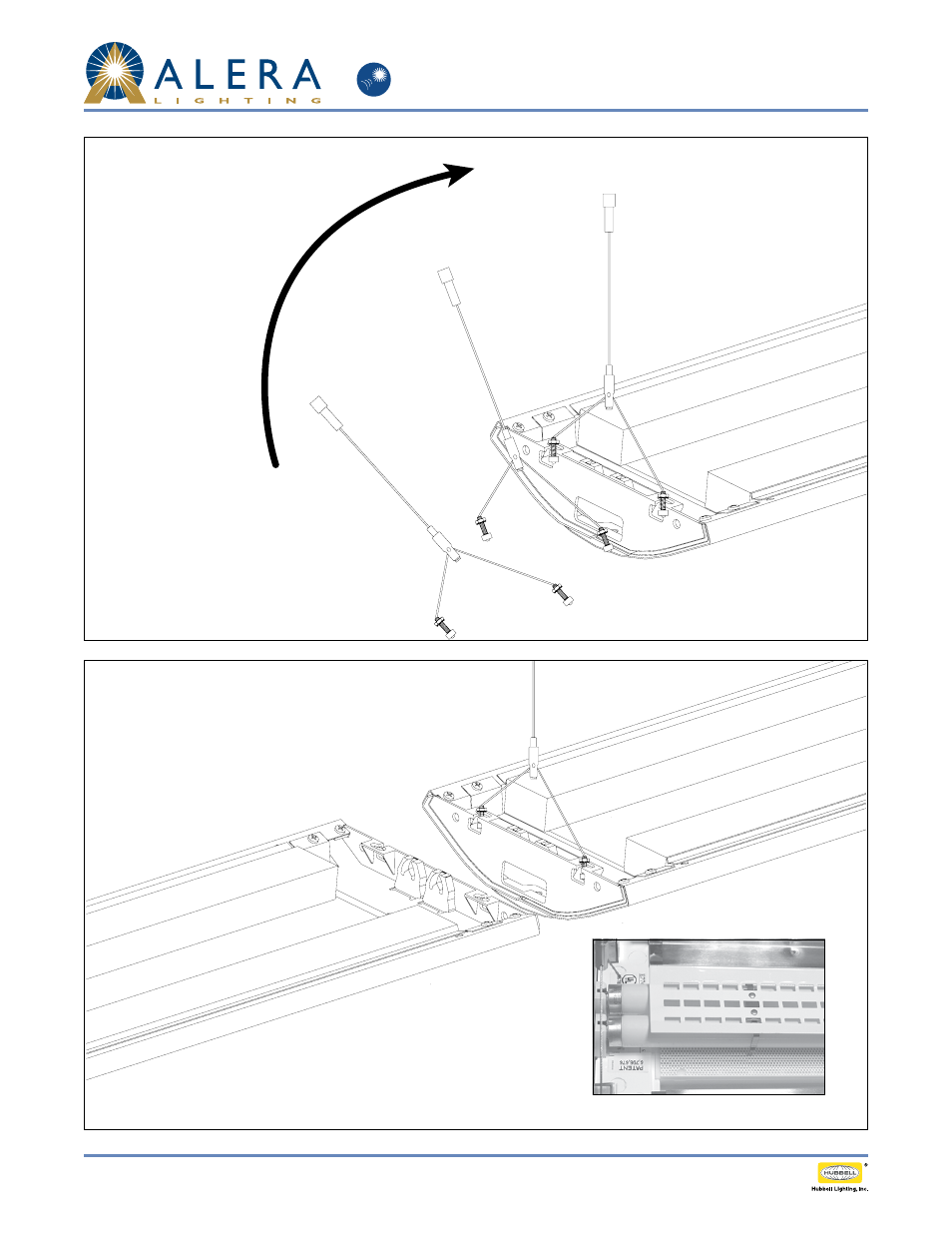

suspension attachMent
Suspension Instructions:
1. Set bottom nuts to desired fixture height.
2. Adjust upper nuts for a minimum of 3/8"
between upper and lower nuts.
3. Slide cable hanger into hanger slots.
4. Secure and tighten upper nuts.
FixtuRe connections
Connection Instructions:
1. Install first fixture of row with two hangers.
2. Slide inner die cast plates together.
3. Secure fixture joints with two bolts and nuts
and attach hanger at opposite end.
4. Repeat steps 2 and 3 until row is complete.
5. At each end of the row, attach and align end
cap with two screws.
Center upper reflector and clip directly onto lamps.
