Page 2/2 Rev. 08/28/12 curves / CV arChiteCtural sensors tiD
Curv
installed architectural sensors technical installation Data A
R
C
H
IT
E C T
U R A L S
E
N
S
O
R
S

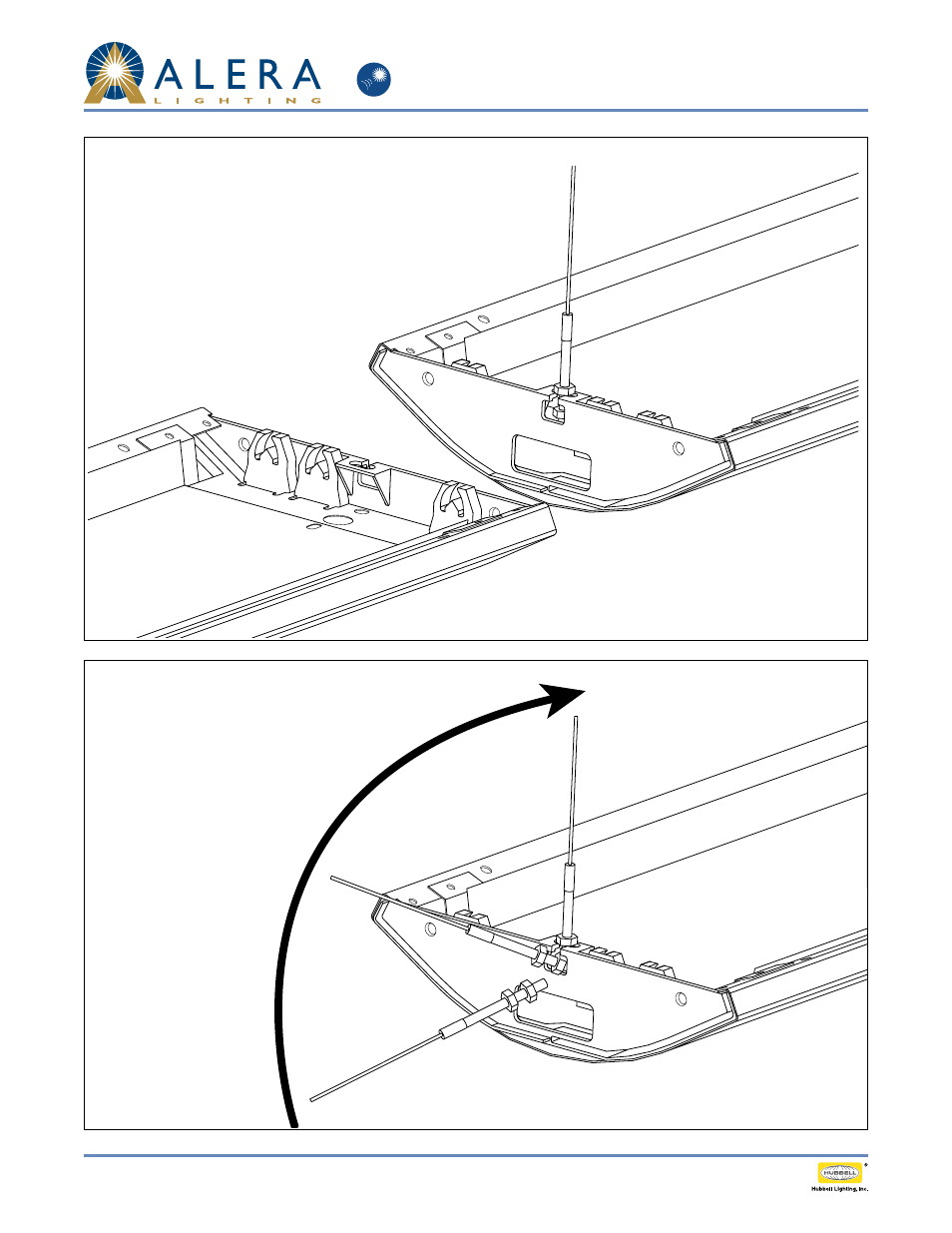

FixtuRE connEctions
Suspension Instructions:
1. Set bottom nuts to desired fixture height.
2. Adjust upper nuts for a minimum of 3/8"
between upper and lower nuts.
3. Slide cable hanger into hanger slots.
4. Secure and tighten upper nuts.
suspEnsion attachMEnt
Connection Instructions:
1. Install first fixture of row with two hangers.
2. Slide inner die cast plates together.
3. Secure fixture joints with two bolts and nuts
and attach hanger at opposite end.
4. Repeat steps 2 and 3 until row is complete.
5. At each end of the row, attach and align end
cap with two screws.
