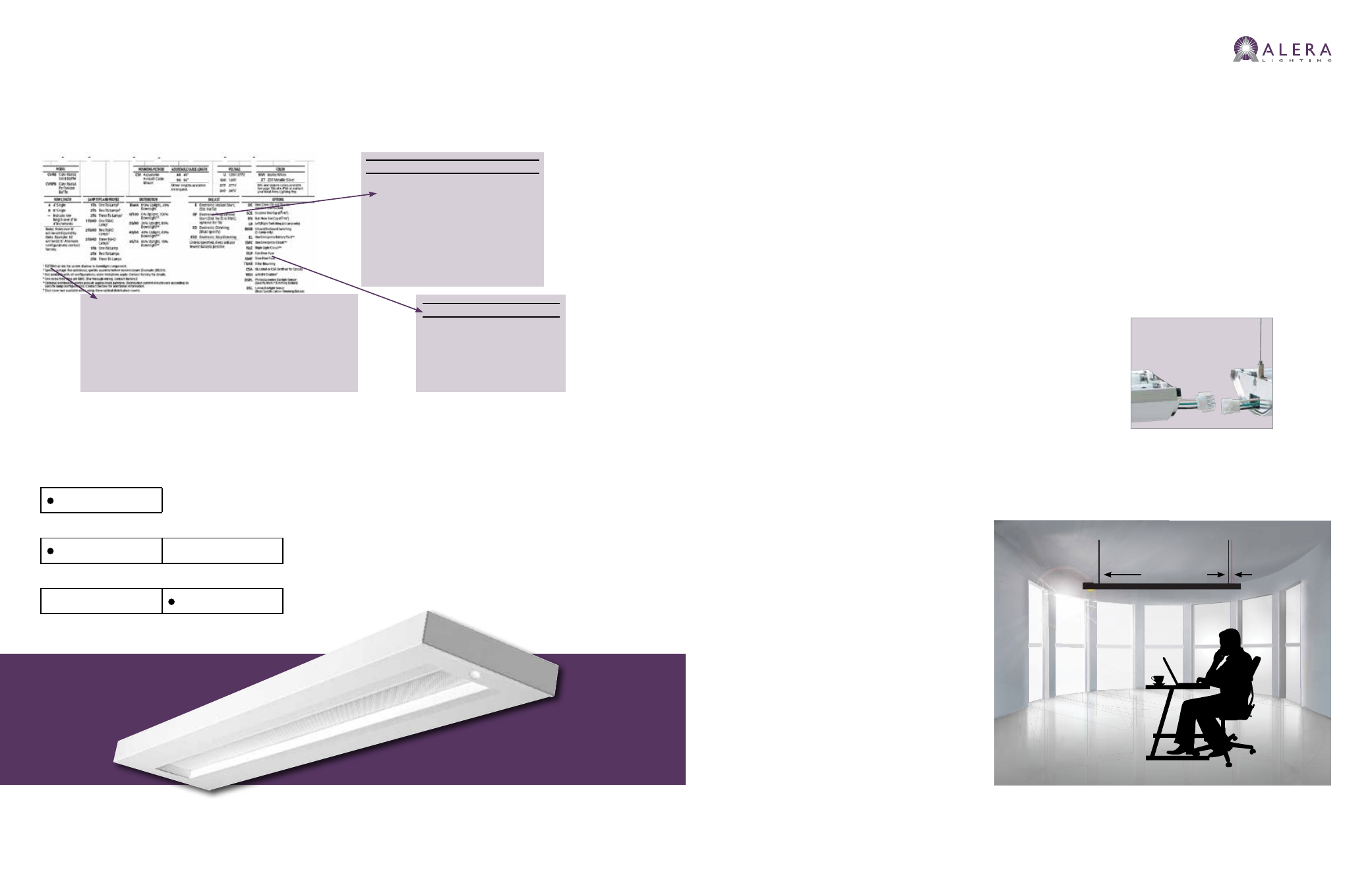

EXAMPLE OF A PRIVATE OFFICE WITH
SUSPENDED LUMINAIRE WITH SENSOR
Suspended Alera Lighting Luminaire
12-18" Suspension
8' Mounting Height from Floor to Sensor
2.5' from Floor to Desktop
Aircraft Cable Feed Cord
7 6
BALLAST
EDUMK7 Universal Voltage
Electronic Dimming
Advance Mark 7 (0-
10V)
3, 4
EDULUTES Universal Voltage
Electronic Dimming
Lutron EcoSystem
(EC5 Series)
4,7
3 Philips Mark 7 required with DSPL Option.
Contact factory for other compatible Philips ballasts.
4 Not available with all configurations; some limitations apply.
Contact factory for details.
7 Lutron EcoSystem series ballast required for DSL option.
Contact factory for other compatible Lutron ballasts.
OPTIONS
DSPL Philips LuxSense
Daylight Sensor 3, 4
DSL Lutron Daylight Sensor
(Must Specify Lutron
Dimming Ballast)
4, 7
STEP 3
PLACE ORDER
Example shown below is Curv Radial Baffle product.
For additional product availability, see back cover or contact Alera Lighting for additional details.
STEP 4
DESIGN ROOM
Examples below show installed sensor locations. Products will be wired to your specifications.
Single 4', 8' or 12' * Fixture with Sensor.
Row of two or more 4', 8' or 12' * Fixtures with Sensors where Sensor is placed at row end.
Row of two or more 4', 8' or 12' * Fixtures with Sensors where Sensor is placed within row.
*Available lengths vary by product family.
Short rows typically require a single feed where control wiring is carried through the
luminaires via quick-connect wiring to dramatically reduce complexity and on-site wiring
errors. Power feed wires are also handled via the installer-friendly Quick-Connect method.
QUICK-CONNECT
IN-ROW CONTROL AND FIXTURE WIRING
Product becomes an element of the EcoSystem family and the installed sensor is commissioned using Lutron's
proprietary interfaces. Ballast and sensor are pre-installed by Alera to facilitate on-site simplicity of sensor installation
and connection to ballast(s). For details, see pages 6 and 7 of this brochure.
DSL OPTION
LUTRON ECOSYSTEM® SENSOR
System is pre-commissioned by Philips and assumes 45fc out-of-the-box. For on-site adjustments, if desired, simply
twist sensor to set at new level. For details, see page 9 of this brochure.
DSPL OPTION
PHILIPS LUXSENSE
STEP 5
EASY INSTALL
Sensors arrive pre-installed
5 STEPS TO DAYLIGHTING SUCCESS
SHOWN WITH PLANK
