Aeromotive 17156 - COBRA JET ENGINE KIT User Manual
Page 6

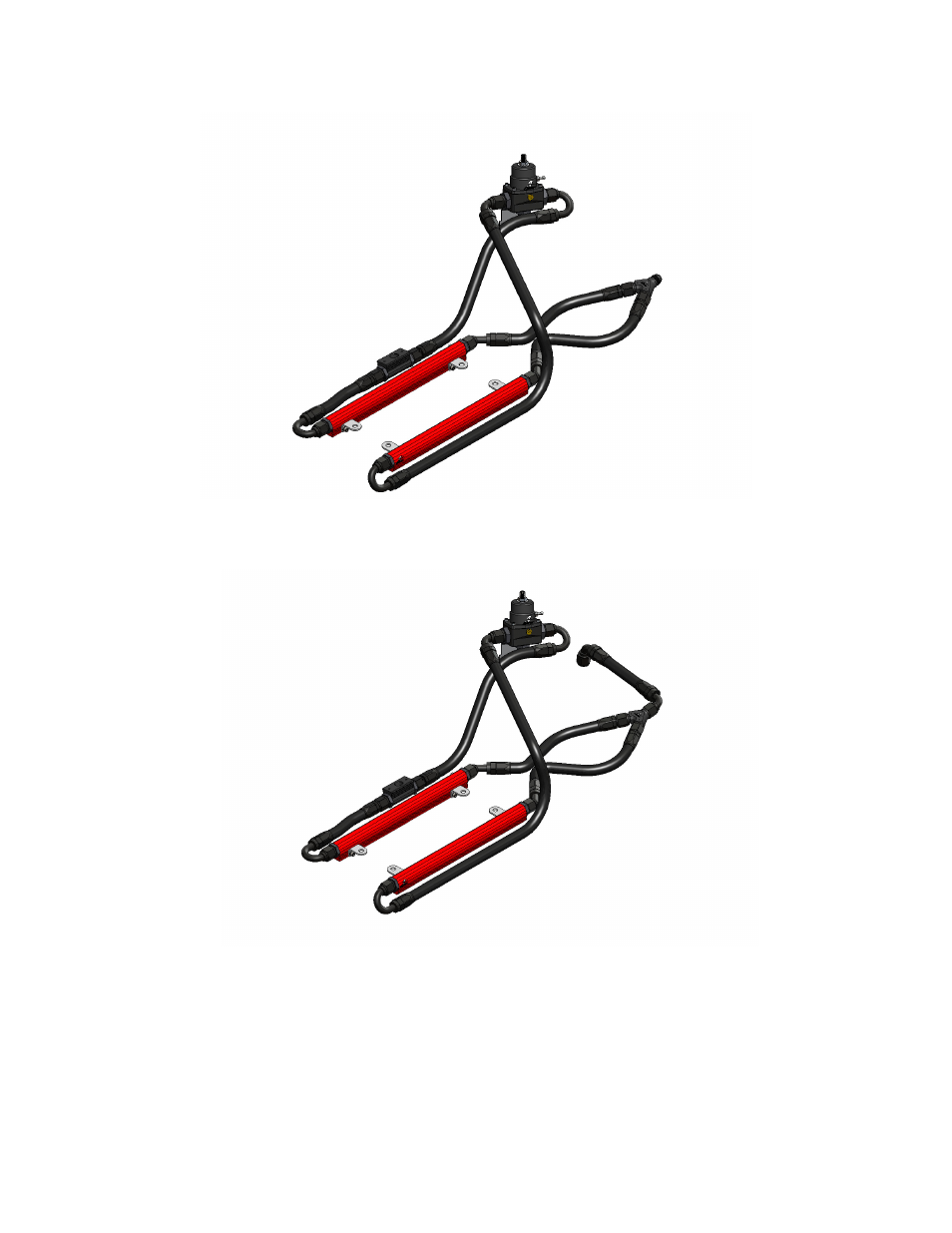

30. Finish the pressure side of the system by assembling a hose with 90 degree hose ends at both ends.
This will make the connection between the feed bulk head and y-block.
31. Now connect the return side of the regulator (bottom port) to the return bulk head. This is done by
using two 90 degree hose ends. This completes the engine bay fuel lines.
