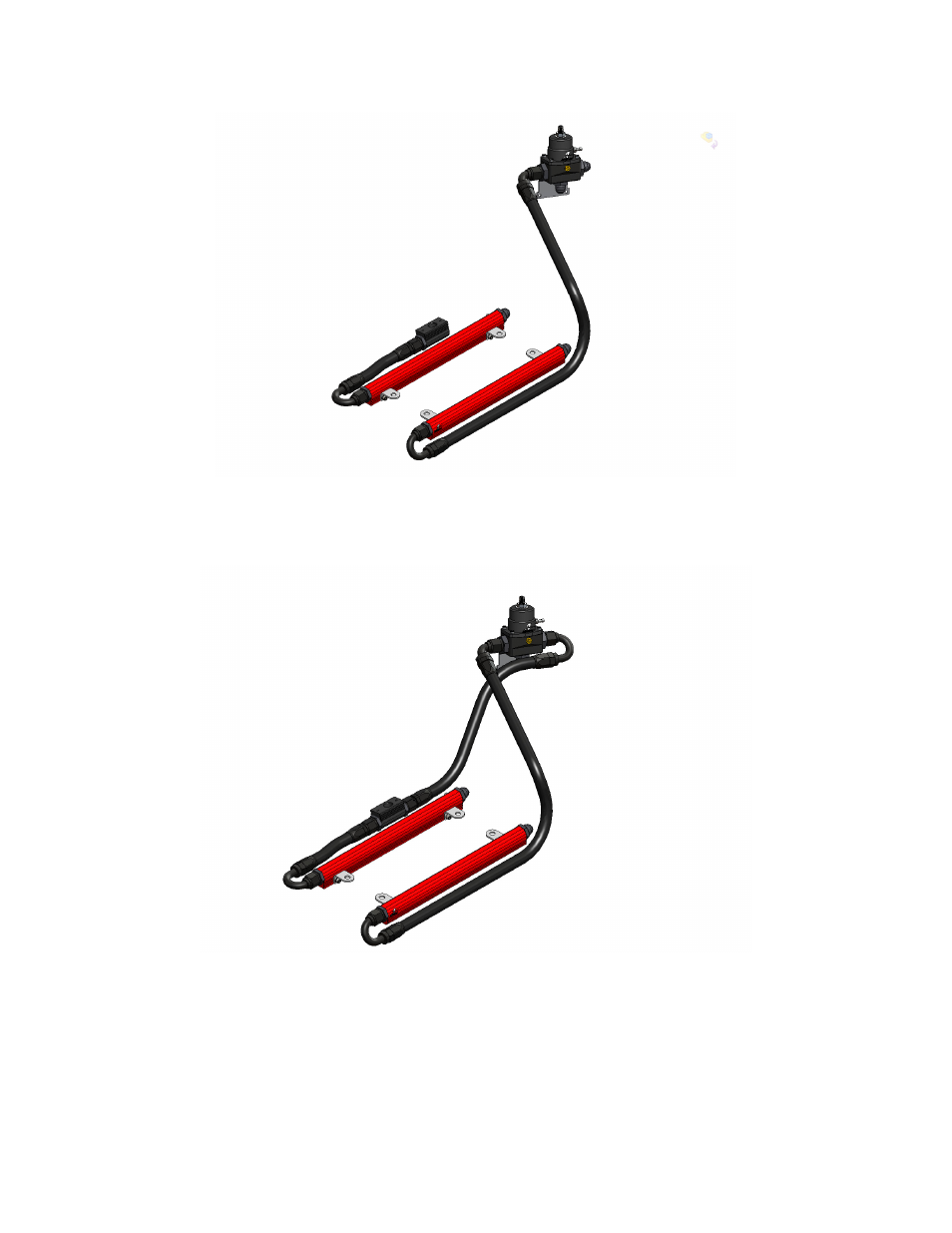

27. Assemble a hose with a straight AN-08 hose end on one end with a 180 degree hose end on the
other. Attach this hose to the front of the passenger side rail using the 180 degree end. Place the
pressure sensor re-locator on the other end as pictured.
28. Make up another hose with a straight/180 degree hose end to complete the feeds to the regulator.
29. Assemble two identical hoses from the Y-Block (15674) using 45 degree fittings on one end and
straights on the other.
Make sure these lines are not resting against wires or hoses as they will chaff them over time.
