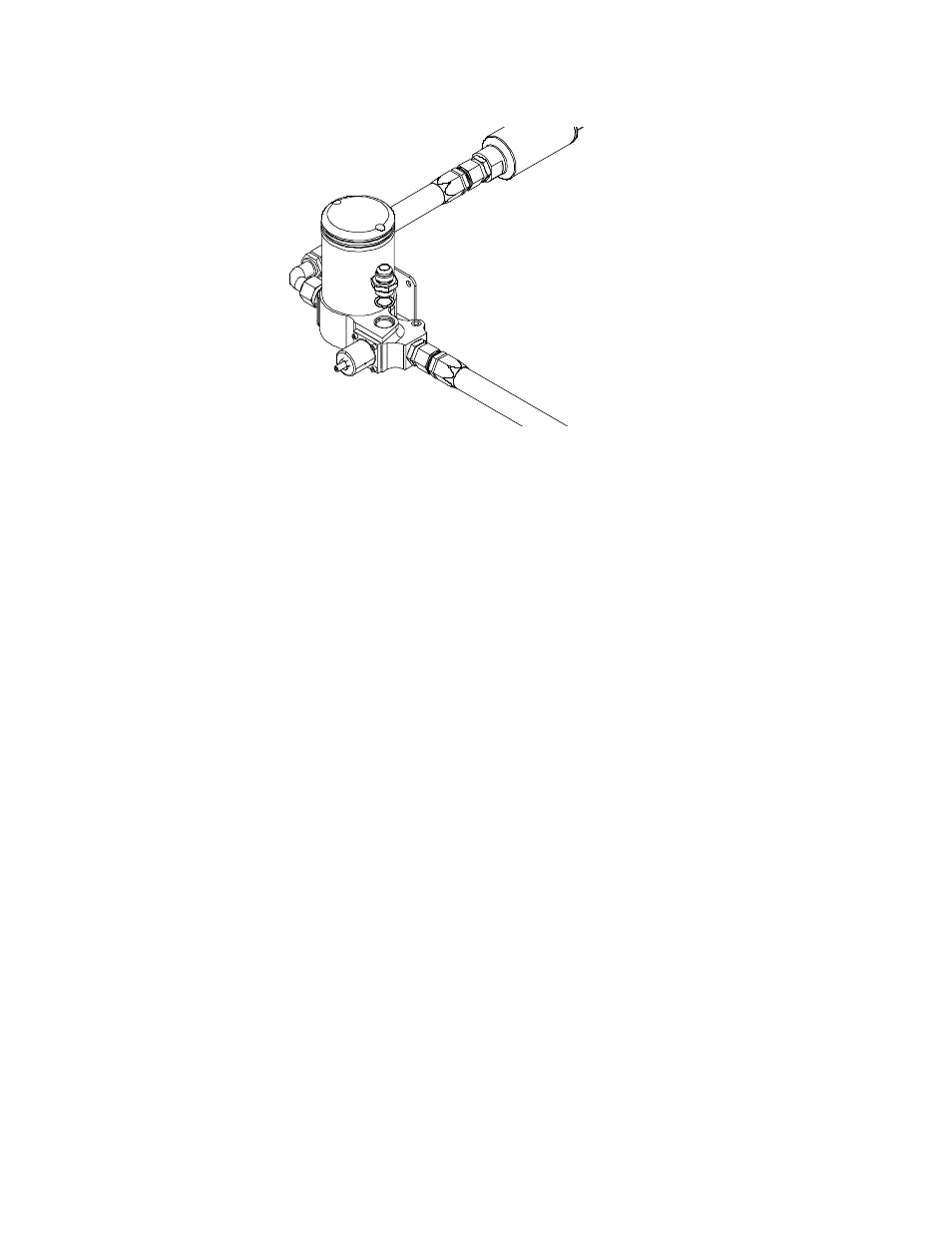

1-19. Thread the AN-08 fitting with o-ring into the by-pass port located on top of the fuel pump.
1-20. Using the supplied 90-degree AN-08 hose end and the supplied AN-08 straight hose end as a guide, measure the
length of AN-08 steel braided line needed to connect the fuel pump by-pass port to the top of the fuel cell.
Note: Be sure to route all fuel lines clear of any moving suspension or drivetrain components, and any exhaust
components! Protect fuel lines from abrasion and road obstructions or debris.
1-21. Cut and assemble the steel braided hose and hose ends as shown in Section 2.
1-22. Using the above steel braided hose assembly, connect the hose ends to their appropriate locations and tighten.
