21
English

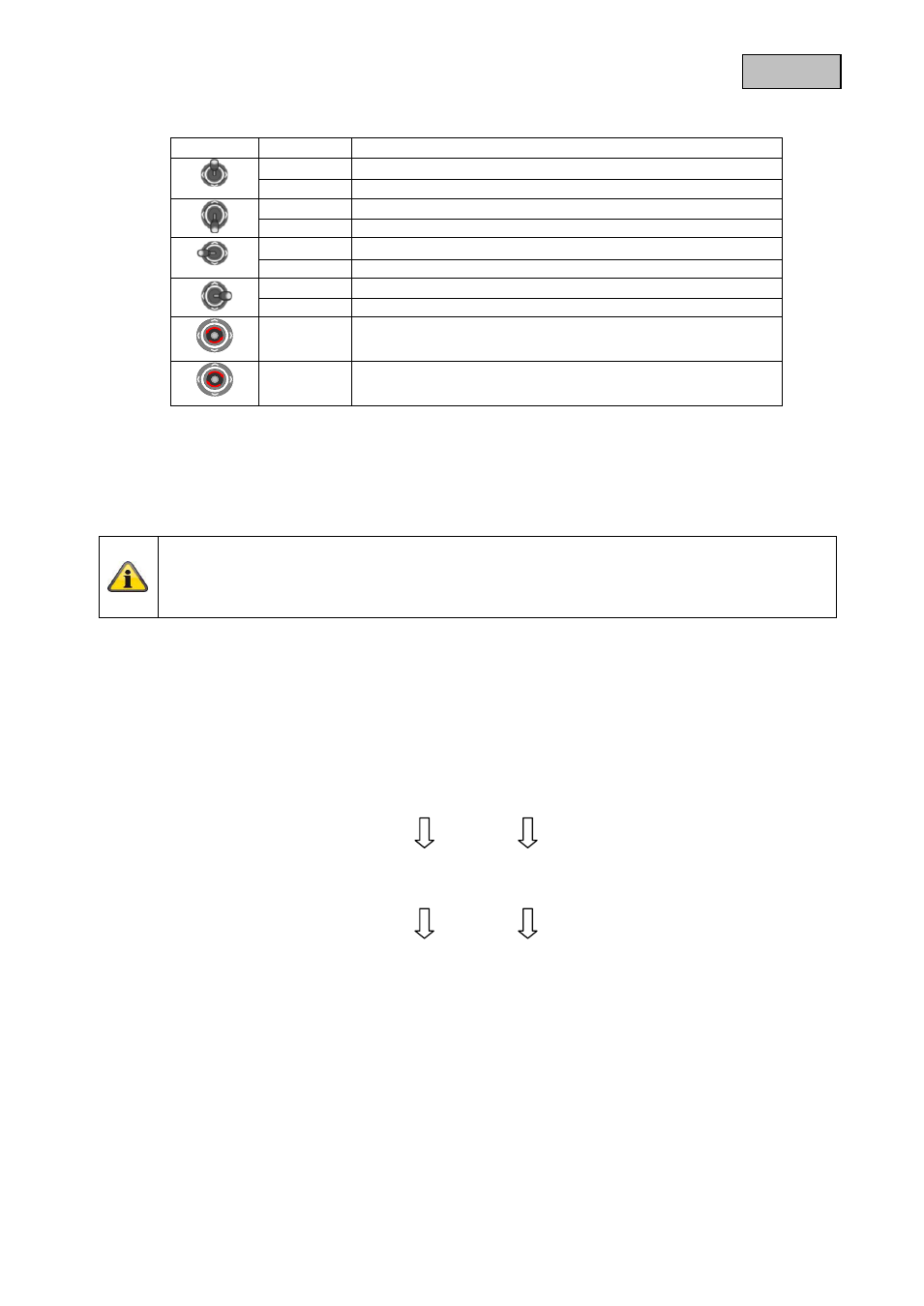

4.3 Joystick control
Picture Command Explanation
Up In PTZ operating mode: move camera upwards
In DVR operating mode: watch fast playback
Down In PTZ operating mode: move camera downwards
In DVR operating mode: watch slow playback
Left In PTZ operating mode: move camera to the left
In DVR operating mode: start reverse playback
Right In PTZ operating mode: move camera to the right
In DVR operating mode: start forward playback
Rotates
left
Increase zoom factor
Rotate
right
Reduce zoom factor
4.4 LCD display
Each operation is detected and displayed by the LCD display. The LCD display goes into energy-saving
mode (minimises the illumination) if there is no operation for 30 seconds.
Pressing the F4 key does not start a tour with the PTZ TV7600-05 cameras.
Start tour 1~8 by pressing the 71~78 + Preset key combination.
The menu key does not open the OSD menu with the PTZ TV7600-05 cameras.
Open the OSD menu by pressing the 95 + Preset key combination.
5. Control panel configuration
5.1 Control panel menu
Any control panel configurations and queries can be done using the joystick and some essential keys.
Controller setup
PTZ Setup SYS Setup
PASSWORD SETUP
CAM: 001 DEFAULT SETUP
PROTOCOL SOUND SETUP
BAUD RATE KEYBOARD ID SETUP
