1. Intended Use
The TVAC26000 control panel is used for centrally controlling PTZ cameras and DVRs with the RS-485
interface.
The following DVRs are compatible: TVVR4xxxx, TVVR50xxx and TVVR60xxx.
2. Scope of delivery
No. Items
Quantity
1
Control panel
1
2
12 V DC power supply unit
1
3
5-pin terminal connector strip
2
4
User manual
1
3. Features and functions
• PTZ Speed Dome control
• DVR control
• Control panel can operate up to 31 DVRs
• Control panel can operate up to 255 PTZ devices
4. Description of device

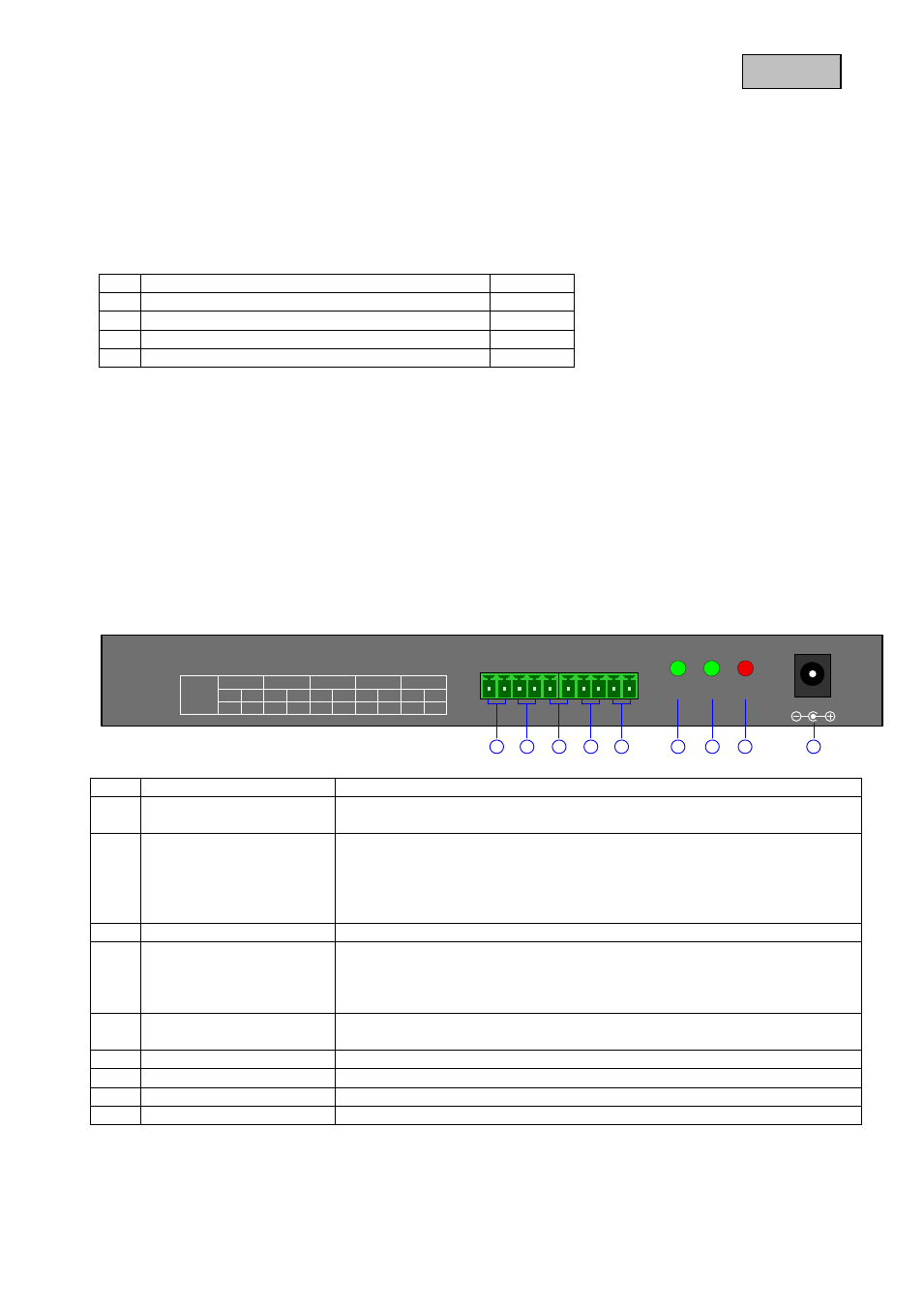

4.1 Rear view of control panel
10
1
PTZ DVR
PW
DC-12V
1
2
3
4
5
RS485-EXPORT
6
7
8
9
RS485
EXPORT
PTZ-CON PTZ-AUX
Ground
DVR-AUX DVR-CON
10
9
8
7
6
5
4
3
2
1
Ta
Tb
Ra
Rb
G
G
Ra
Rb
Ta
Tb
No.
Connection
Explanation
1
Output for PTZ control
PTZ-CON
RS485 connection for linking control panel and PTZ Speed Dome. Ta is
for RS485+ and Tb is for RS485-.
2
Input for additional
control panel for PTZ
control
PTZ-AUX
Connect the control panel and additional control panel for PTZ control.
Connect control panel PIN8 (Ra) with additional control panel PIN10 (Ta),
and connect control panel PIN7 (Rb) with additional control panel PIN9
(Tb). The additional control panel can now also control the PTZ Speed
Dome.
3
Earth
Earth connection
4
Input for additional
control panel for DVR
control
DVR-AUX
Connect the control panel and additional control panel for DVR control.
Connect control panel PIN4 (Ra) with additional control panel PIN2 (Ta),
and connect control panel PIN3 (Rb) with additional control panel PIN1
(Tb). The additional control panel can now control a DVR.
5
Output for DVR control
DVR-CON
Connect control panel PIN2 (Ta) with DVR KB PIN D+, and connect
control panel PIN1 (Tb) with DVR KB PIN D-.
6
PTZ indicator lamp
In the PTZ operating mode, the green LED lights up and flashes.
7
DVR indicator lamp
In the DVR operating mode, the green LED lights up and flashes.
8
Power LED PW
The Power LED lights up red once the power supply is connected.
9
DC-12 V voltage supply
Power supply connection
