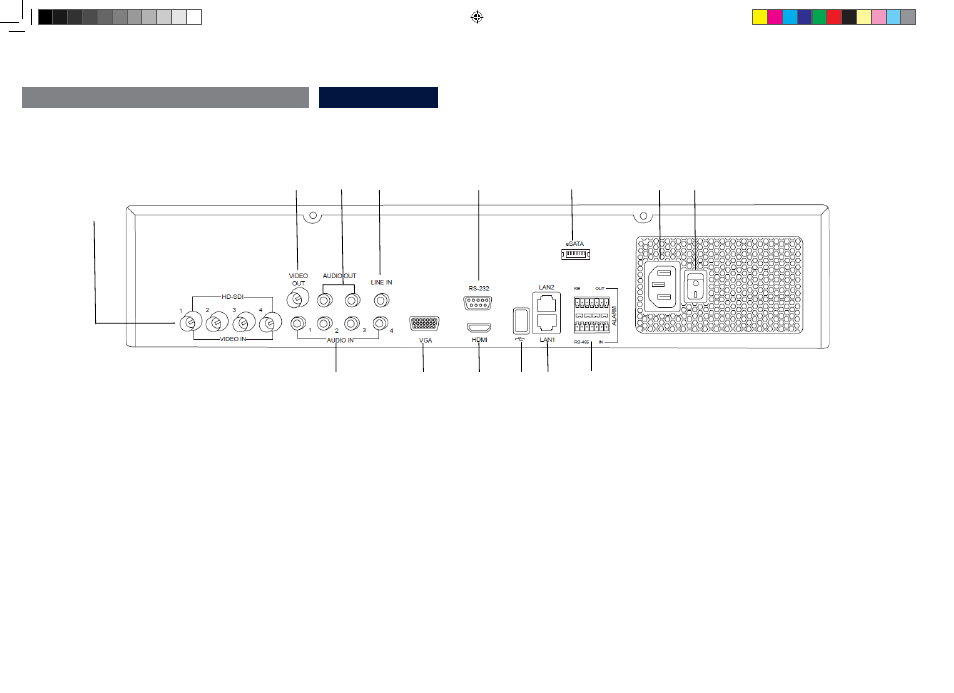

Overview
8. Video IN:
BNC (HD-SDI) input for HD-SDI cameras with
images.
9. Video out:
BNC connector for video output (used for
connecting a monitor as an alternative to the
VGA / HDMI output (no. 17 / no. 18)).
10. Audio Out:
Cinch audio output (synchronised with main video signal
output).
11. Line IN:
Cinch audio input (is not recorded, only for network
transmission).
12. RS-232:
Serial port – no functionality.
.
13. eSATA:
Connection for an external HDD.
14. Mains power connection:
100–240 V AC, 50–60 Hz.
15. Power on/off:
Connection for power supply (230 V) and on/off
switch.
16. Audio IN:
Cinch inputs
Assigned to camera inputs 1 - 4.
17. VGA:
VGA monitor connection (9-pin), video output
signal.
18. HDMI:
HDMI monitor connection.
19. USB:
Optional USB connection (not at all devices!)
20. LAN:
2 x RJ45 connection (for connecting to a network).
21. Alarm IN / Alarm OUT:
RS-485 connection for PTZ cameras, Max. 4
alarm inputs, Max. 2 relay outputs.
