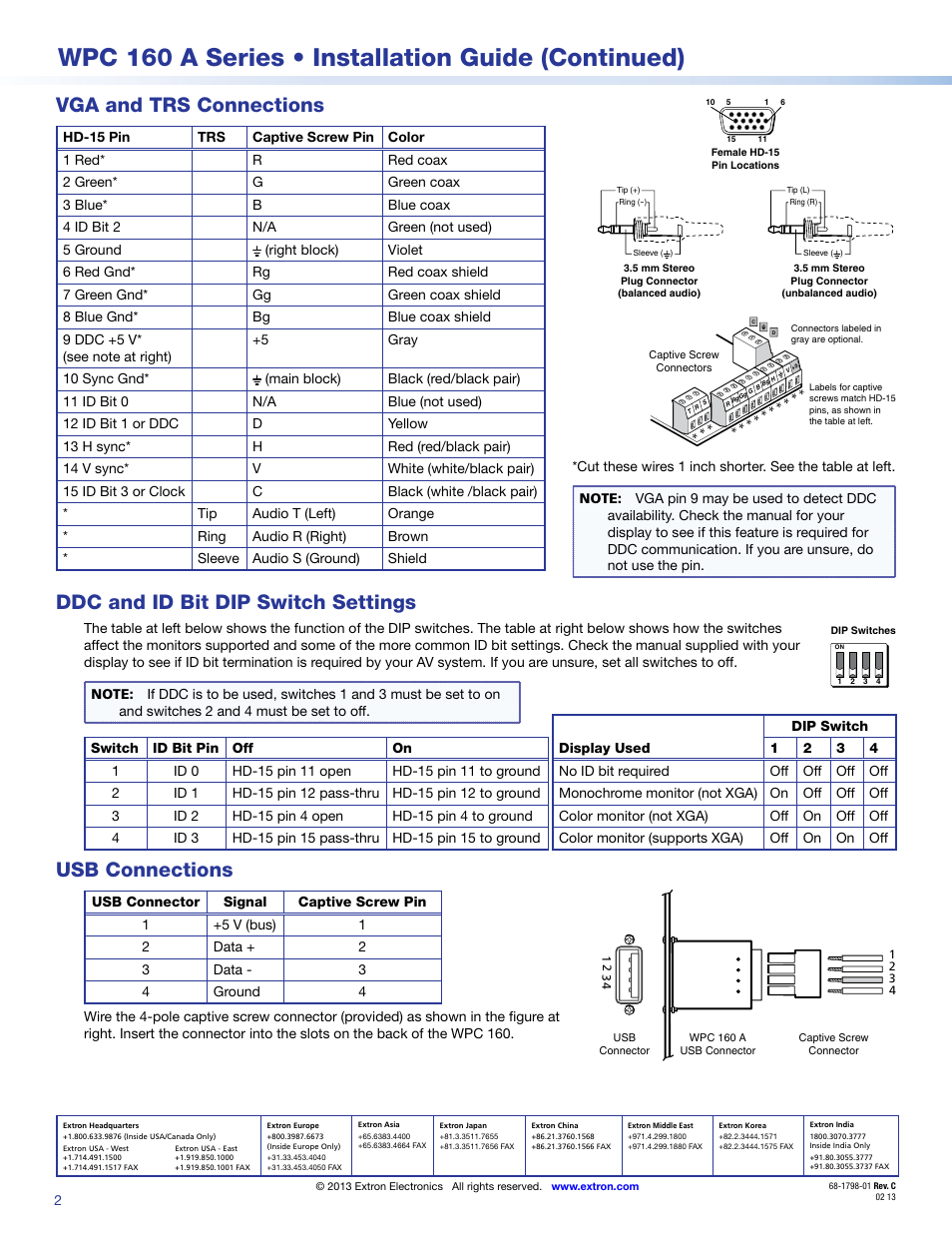

Wpc 160 a series • installation guide (continued), Vga and trs connections, Ddc and id bit dip switch settings – Extron Electronics WPC 160 A Series User Manual
Page 2: Usb connections
