TP Cable Termination
NOTE: RJ-45 termination must comply with TIA/EIA T568A or TIA/EIA T568B wiring
standards for all connections.

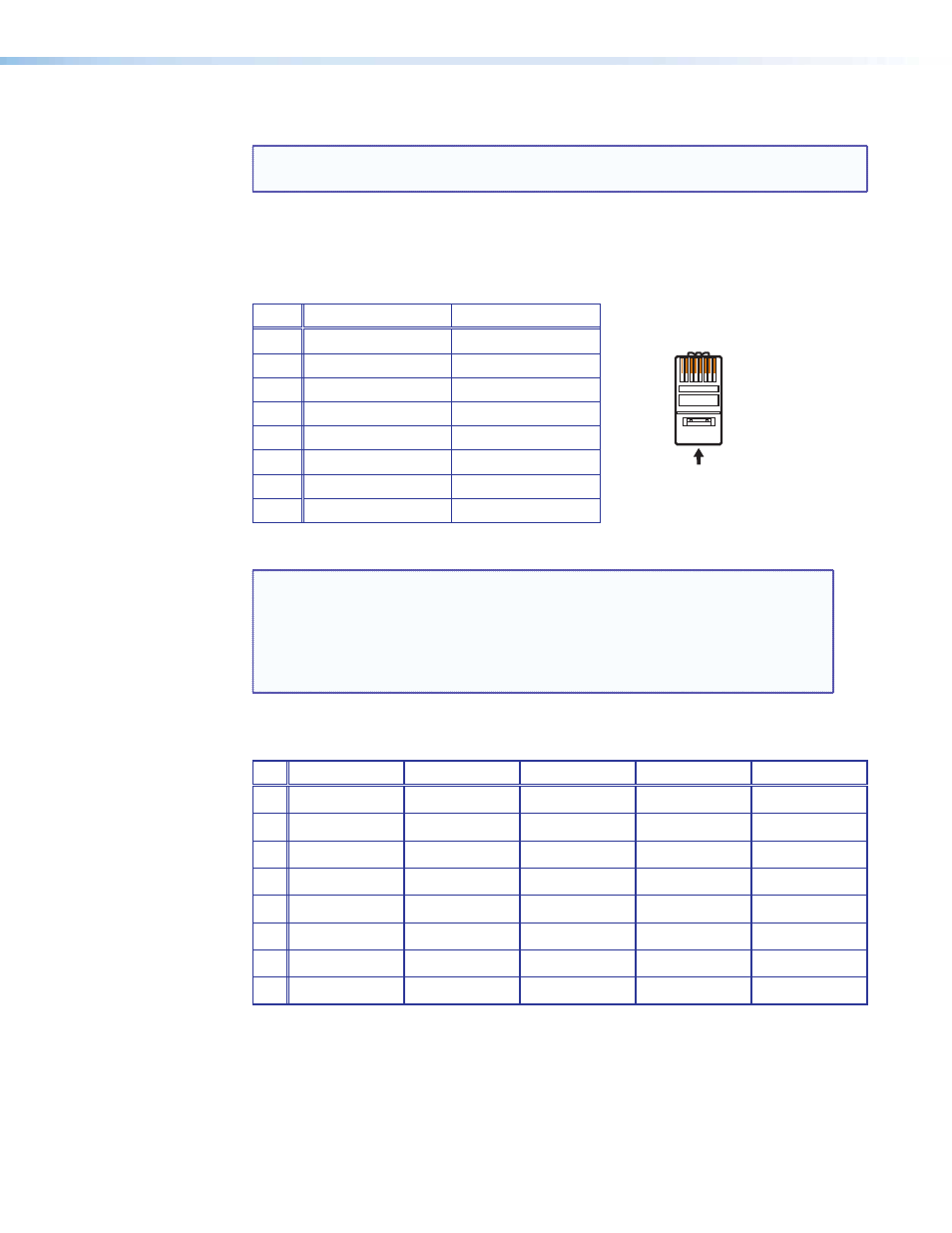

The figure below details the recommended termination of TP cables with RJ-45 connectors
in accordance with the TIA/EIA T568A or TIA/EIA T568B wiring standards. Either standard
can be used with CAT 5 cable, but the same standard must be used on both ends of the
cable.
Pin T568A Wire Color T568B Wire Color
1 White-green White-orange
2 Green Orange
3 White-orange White-green
4 Blue Blue
5 White-blue White-blue
6 Orange Green
7 White-brown White-brown
8 Brown Brown
Figure 6. TP Cable Termination
NOTES: • Enhanced Skew-free AV cable is not recommended for Ethernet/LAN
applications.
• DO NOT connect the RJ-45 input to LAN, Ethernet, outside plant
communications, or any telecommunications networks
• This cable is specially designed for compatibility with Extron Twisted Pair
products that are wired using the TIA/EIA T568A standard.
The table below shows the MTP RJ-45 pin assignments for video signals and data
communication.
Pin RGBHV RGBS Composite S-video Component
1 Red/V Sync + Red + No Signal Chroma + R-Y +
2 Red/V Sync - Red - No Signal Chroma - R-Y -
3 Serial Data + Serial Data + Serial Data + Serial Data + Serial Data +
4 Green + Green + Video + Luma + Y +
5 Green - Green - Video - Luma - Y -
6 Serial Data - Serial Data - Serial Data - Serial Data - Serial Data -
7 Blue/H Sync + Blue/C Sync + No Signal No Signal B-Y +
8 Blue/H Sync - Blue/C Sync - No Signal No Signal B- Y -
Figure 7. MTP RJ-45 Pin Assignments
RJ-45 Connector
12345678
Insert Twisted
Pair Wires
Pins:
