Twisted Pair Cable Termination
Figure 9 details the recommended termination of twisted pair cables with RJ-45 connectors
in accordance with the TIA/EIA-T568A or TIA/EIA-T568B wiring standards. You can use
either standard with CAT 5, 5e, 6, 7, and STP201 cable, but ensure that you
use the same
standard on both ends of the cable.
RJ-45
Connector
Insert Twisted
Pair Wires
12345678
Pins:
Pin Signal
1 Red/V. sync +
2 Red/V. sync -
3
Green + 4
Blue/H. sync +
5
Blue/H. sync -
6
Green -
7
Mono audio +
8
Mono audio -
Wire color
White-green
Green
White-orange
Blue
White-blue
Orange
White-brown
Brown
Wire color
TIA/EIA-T568A TIA/EIA-T568B
White-orange
Orange
White-green
Blue
White-blue
Green
White-brown
Brown
NOTE: When using Enhanced Skew-Free
AV UTP cable, use the TIA/EIA-T568A
standard only.

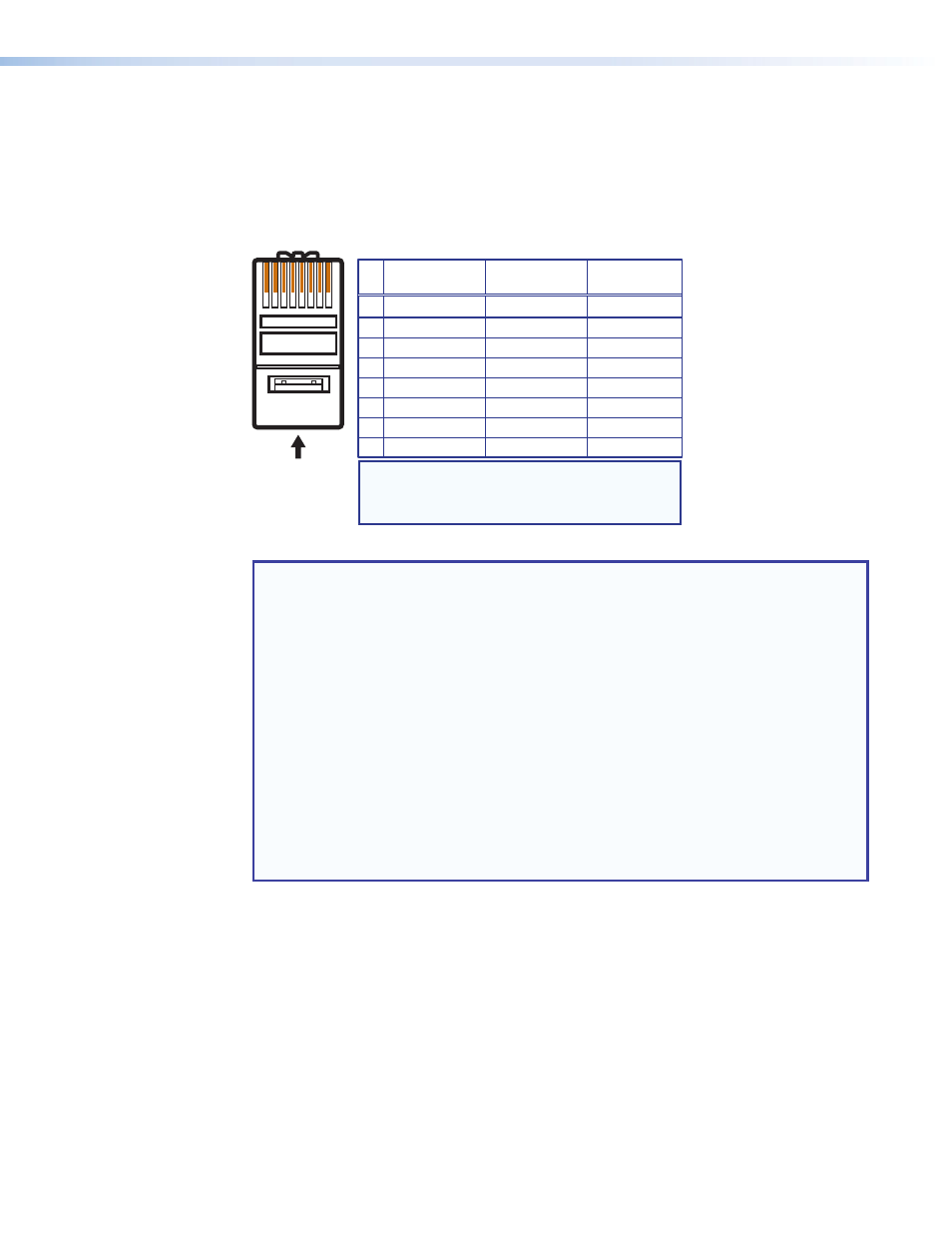

Figure 9. Twisted Pair Cable Termination Diagram
NOTES:
• RJ-45 termination with CAT 5, 5e, 6 cable must comply with the
TIA/EIA-T568A or TIA/EIA-T568B wiring standards for all connections.
• RJ-45 termination with Skew-Free AV UTP cable must comply with
TIA/EIA-T568A only.
• For proper grounding of shielded twisted pair cable, ensure the shield around
each wire pair is all tied to the RJ-45 connectors on both ends, in accordance with
the connector specifications provided by the manufacturer.
• Extron Enhanced Skew-Free AV cable is not recommended for
Ethernet/LAN applications. This cable is specially designed for compatibility with
Extron Twisted Pair products that are wired using the TIA/EIA-T568A standard.
• The green, brown, and blue wire pairs of this cable have virtually identical lengths
and should be used to transmit the RGB signals.
• The orange wire pair of this cable has a different length and should not be used to
transmit the RGB signals.
MTP 15HD A Series • Installation and Operation 15
