MTP 4T 15HD RS • Installation and Operation

7

e

Pre-Peak switch — The Pre-Peak switch alters the TP signal output to correct for

long cable runs. See the

table on page 3

for suggested switch settings based on the

transmitted video format and transmission distance.

f

Transmitter Output connector — Connect one end of a TP cable to this RJ-45 female

connector on the transmitter. Connect the free end of the same TP cable from the
transmitter to the receiver’s Input RJ-45 female connector. See “

TP Cable Termination

below to properly wire the RJ-45 connectors.

CAUTION: Do not connect this device to a computer data or telecommunications

network.

TP Cable Termination

NOTE: RJ-45 termination with CAT 5, CAT 5e, or CAT 6 cable must comply with the

TIA/EIA T568A or TIA/EIA T568B wiring standards for all connections.

RJ-45 termination with Skew-Free AV UTP cable must comply with TIA/EIA
T568A only.

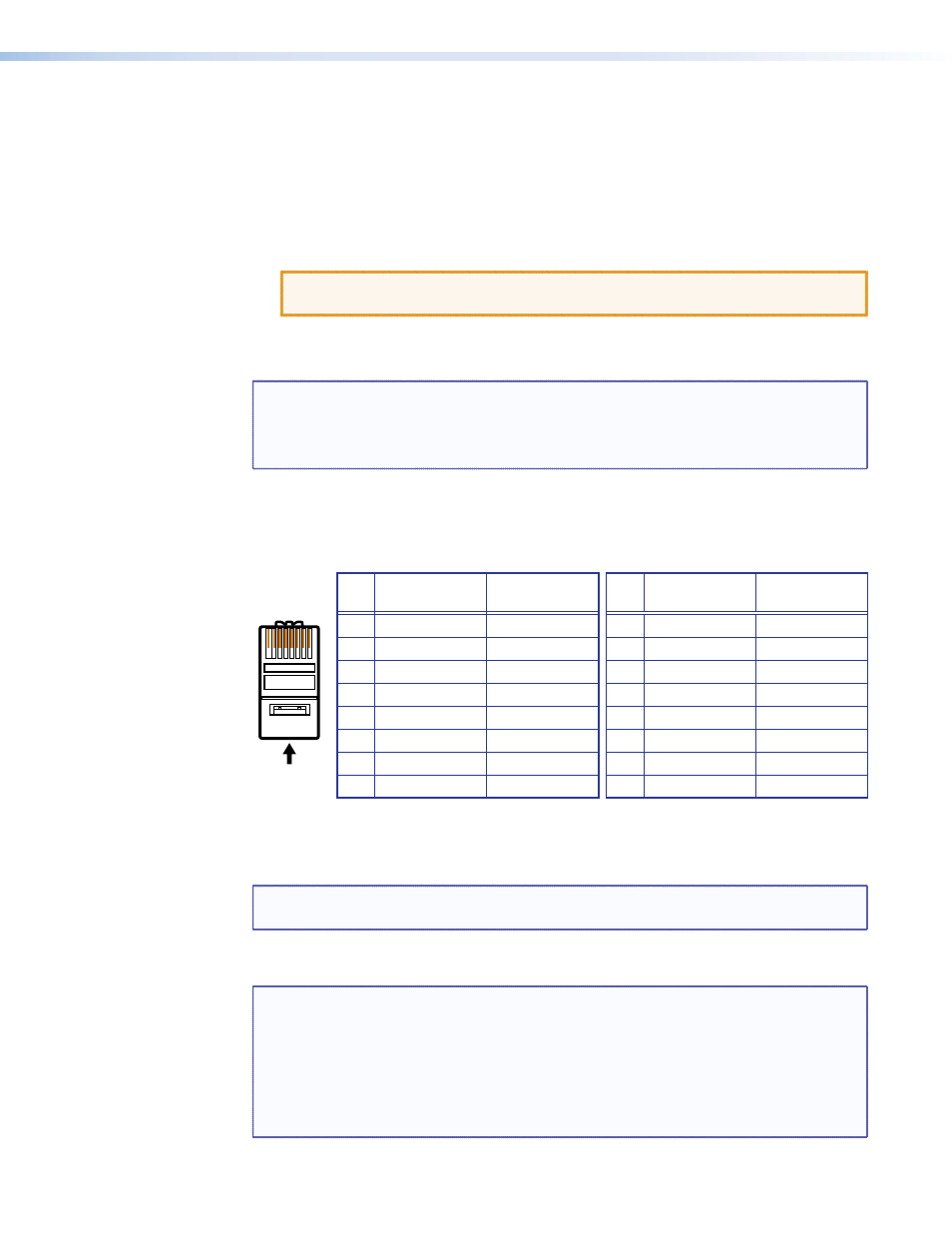

Figure 4 shows the recommended termination of TP cables in accordance with the TIA/EIA
T568A or TIA/EIA T568B wiring standards. You can use either standard with CAT 5, 5e, or 6
cable, but use the same standard on both ends of the cable.

NOTE: If you are using Enhanced Skew-Free AV cable, use the TIA/EIA T568A standard

only.

Figure 4.

TP Cable Termination

NOTE: Enhanced Skew-free AV cable is not recommended for Ethernet/LAN

applications. This cable is specially designed for compatibility with Extron
twisted pair products that are wired using the TIA/EIA 568 A standard.

The green, brown, and blue pairs of this cable have virtually identical lengths and
should be used to transmit the RGB signals.

The orange pair of this cable has a different length and should not be used to
transmit the RGB signals.

Crossover Cable

Straight-through Cable

Pin

End 1

Wire Color

End 2

Wire Color

Pin

End 1

Wire Color

End 2

Wire Color

1

White-green

White-orange

1

White-orange

White-orange

2

Green

Orange

2

Orange

Orange

3

White-orange

White-green

3

White-green

White-green

4

Blue

Blue

4

Blue

Blue

5

White-blue

White-blue

5

White-blue

White-blue

6

Orange

Green

6

Green

Green

7

White-brown

White-brown

7

White-brown

White-brown

8

Brown

Brown

8

Brown

Brown

T658A

T568B

T568B

T568B

A cable that is wired as T568A at one end and

T568B at the other (Tx and Rx pairs reversed)
is a “crossover” cable.

A cable wired the same at both ends is called

a “straight-through” cable, because no pin/
pair assignments are swapped.

1234567 8

RJ-45

Connector

Insert Twisted

Pair Wires

Pins:
