Extron • Model 8 PLUS & Model 10 PLUS Switchers • User’s Manual

Page A-2

Configuring Features and Options

KP-10 Remote Control

The optional E

XTRON

KP-10 hard wired remote controller

consists of a keypad, a 25 foot cable and a 25 pin D male
connector that connects to the MANUAL REMOTE connector

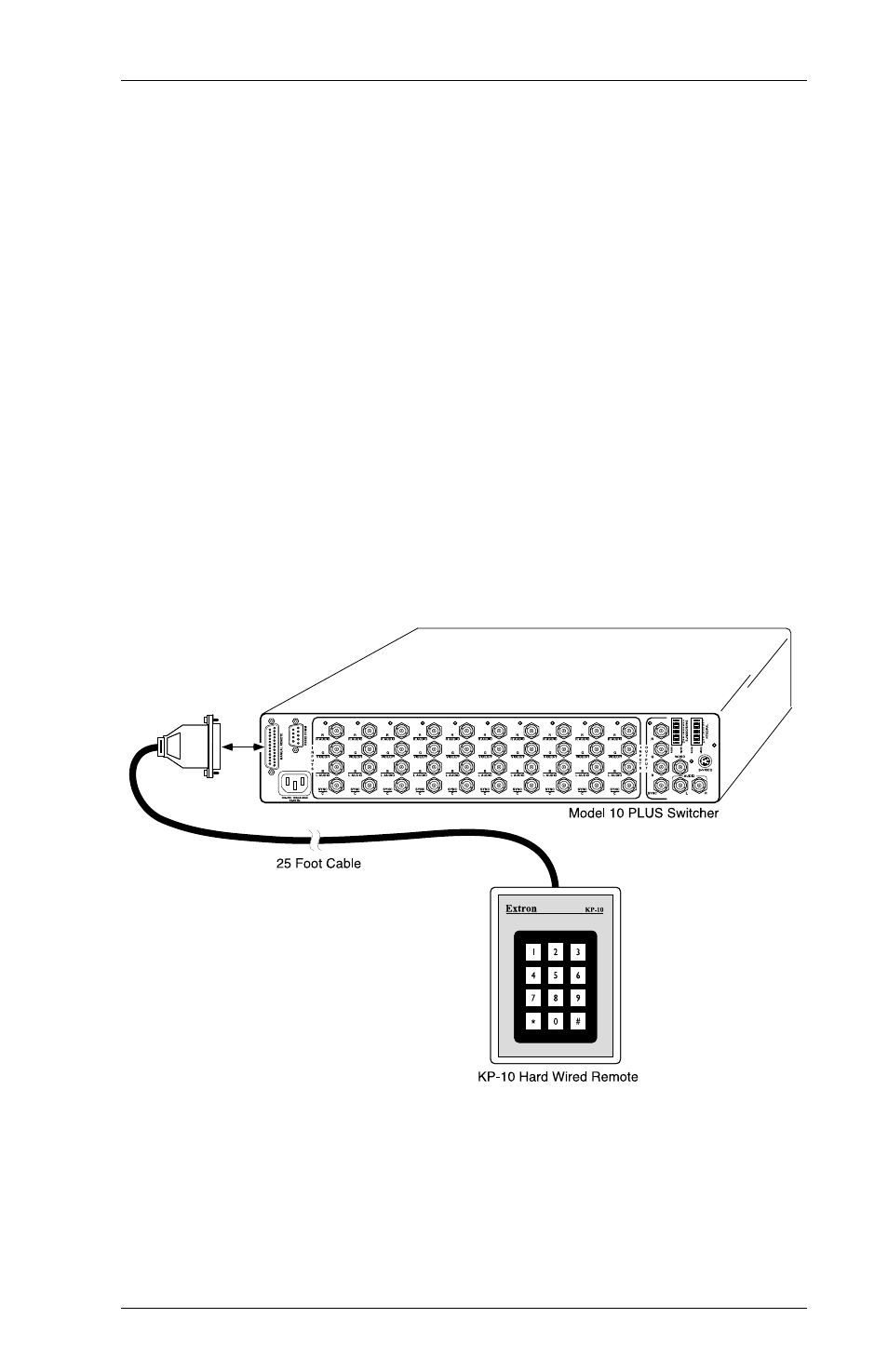

on the rear panel of the switcher (see drawing below).

With the KP-10 connected, all Model 8 PLUS and Model 10
PLUS front panel operations can be duplicated using keys 0
through 9 on the KP-10 keypad.

The KP-10 operates in parallel with the front panel and the
RS-232 port. The Model 8/10 PLUS Switchers can be
controlled from any one of these three sources and no one
source has priority over the other.

The E

XTRON

part number for the KP-10 is 60-111-01.

1

2

3

4

5

6

7

8

9

1 0
