Extron • Model 8 PLUS & Model 10 PLUS Switchers • User’s Manual Page 2-1
Model 8/10 Switcher Operation
The Model 8/10 PLUS switchers enable the output to be
switched from anyone of 8 or 10 inputs (A)* and the following
formats are supported:
• RGBS – RGB with separate composite sync
• RGsB – RGB with sync on green
• Monochrome Composite Video
• NTSC/PAL (Composite) Video w/Stereo Audio follow
• S-Video (SVHS) w/Stereo Audio follow
When an input is selected, an LED will illuminate green next
to the selected BNC input connectors on the rear panel (H)*.
Three sets of output connectors are used for the four different
video format outputs. They are:
• RGB (RGBS or RGsB) – 4 BNC connectors (B)*
• VIDEO (NTSC/PAL) – 1 BNC connector (C)*
• S-Video (SVHS) – 1 S-Video DIN connector (D)*
Audio, if used, is available on the two output BNC connectors
labeled AUDIO (L and R) (E)*.
Only one set of output connectors is active at a time. The
current active set is identified by an illuminated LED next to
the active output connector(s) (F)*.
The Output Select DIP Switch (G)* settings will determine
which of the three output connectors that the selected input
will be directed to. These switches must be set for each input
to match the incoming format. There are two switch modules,
the left switch module is for RGBS/S-Video selection and the
right switch module is for RGBS/NTSC-PAL selection. The
switch modules are numbered from top to bottom to match the
input number.
Front Panel
The POWER LED (see front panel drawing below), when
illuminated, indicates that the switcher power is on. If AC
voltage is available to the switcher, it is powered on.
Front Panel switches 1 – 10 (Model 8 = 1 – 8) shown in the
drawing below may be used to select the input. The LED in
the front panel switch for the selected input will be illuminated.
* – (A) thru (K) refer to the drawing and descriptions on the
facing page.

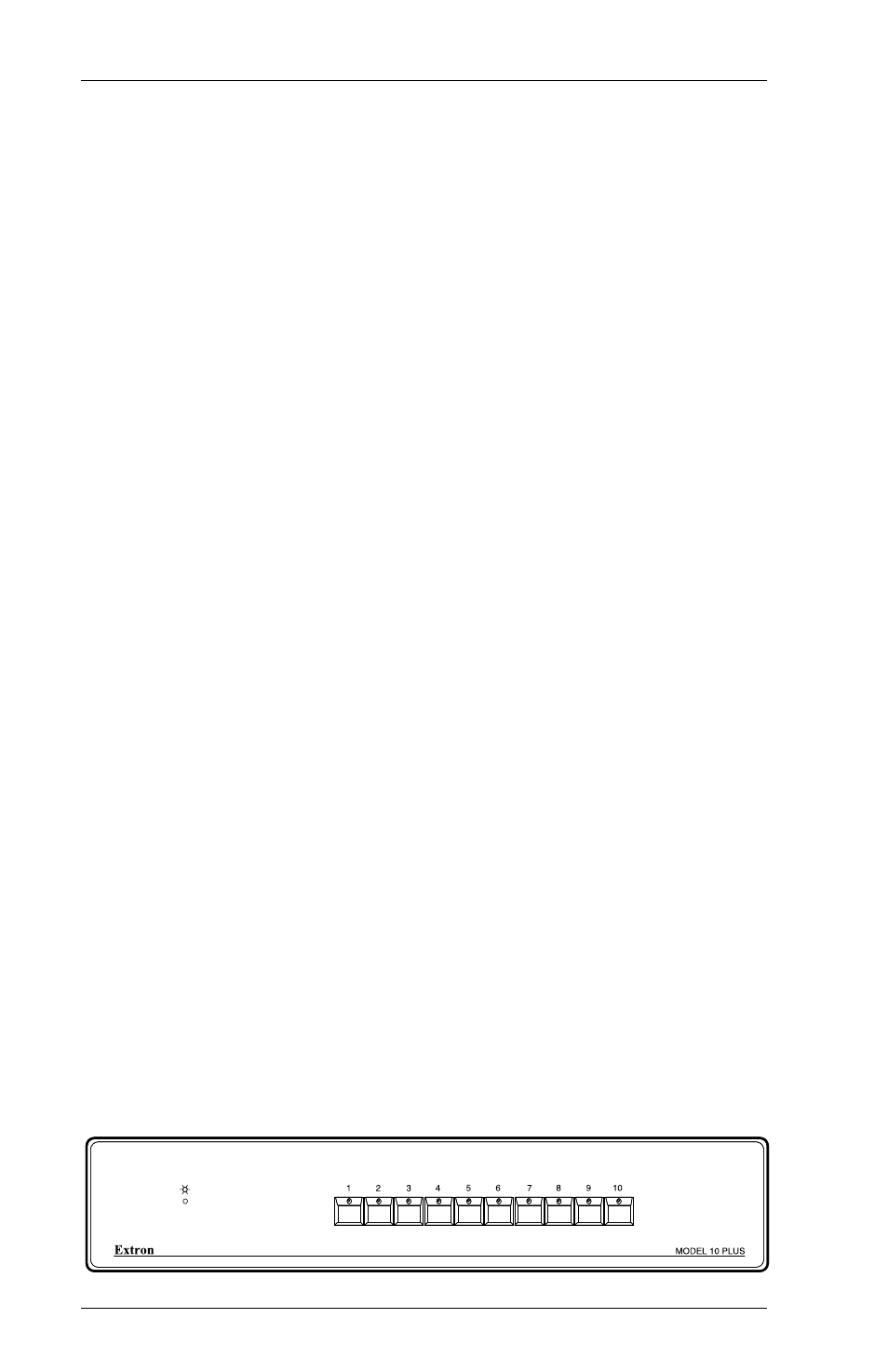

Model 10 PLUS Front Panel
Model 8/10 PLUS Operation and Configuration
