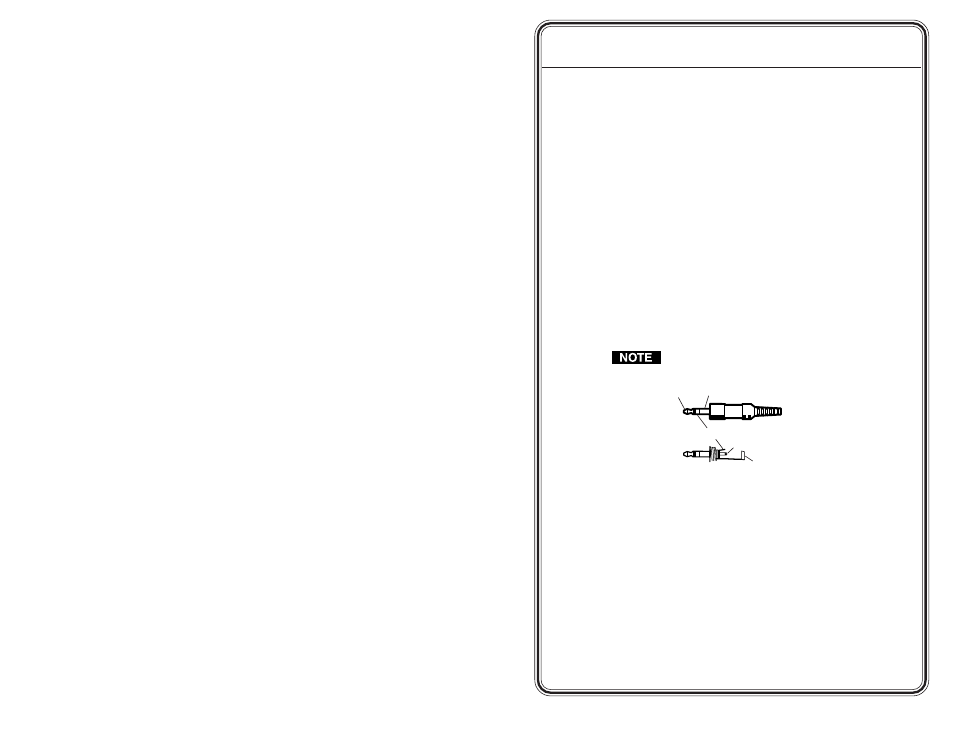

background image

IN1124/28/30 Transmission System • Quick Start Guide

Quick Start Guide — IN1124/1128/1130

Transmission System

Step 1

Turn the equipment off

and disconnect the equipment from the

power source.

Step 2

If desired, rack mount the transmitter

. Use the optional 1U rack-

mount shelf, part #IN9080, for rack mounting.

Step 3

If desired, furniture mount the receiver

. Use the optional mounting

brackets, part #IN9089, to mount the receiver to any flat surface.

Step 4

Video input

— Connect the VGA-UXGA RGBHV, RGBS, RGsB video

input to the 15-pin HD Input connector on the transmitter.

Step 5

Audio input

— Connect a PC audio source (such as a computer or a

CD player) to the 3.5 mm mini stereo audio connector for unbalanced
audio input on the transmitter. See the figure below for wiring.

Input only analog, line level, audio signals on the audio
input connector.

Tip (Left)

Sleeve (Gnd)

Tip (Left)

Ring (Right)

Sleeve (Gnd)

Step 6

Local monitor video output

If desired, connect a local monitor or

other device to this 15-pin HD female connector on the transmitter
for a buffered output.

Step 7

Local audio output

If desired, connect the PC audio output on

this 3.5 mm stereo jack on the transmitter to local powered speakers.

Step 8

Transmitted signal cabling

— Connect up to 4 or 8 Extron skew-free

A/V or CAT 5 (minimum) cables, terminated with RJ-45 connectors,
between the transmitter and all receivers. Terminate the cables in
accordance with the TIA/EIA T 568A or TIA/EIA T 568B wiring
standards. You can use either standard, but use the same standard
on both ends of the cable. See the figure on the next page for wiring.
