IN3254 • Introduction
Introduction
1-2
About this Manual
This manual describes the function and installation of the Extron
IN3254 Distribution Amplifier (DA).
About the IN3254 Distribution Amplifier
The Extron IN3254 is a high performance RGBHV distribution
amplifier. This DA includes one input and four outputs on BNC
connectors. It features a two-position gain switch that affects
the output level on all RGB channels, and compensates for
signal level loss that occurs over long cable runs. There is also a
two-position sync level selector.
The IN3254 offers flexible video distribution/line driving
capabilities to suit a wide variety of applications including
boardrooms, training facilities, home theater, command and
control centers, and rental and staging environments.
The IN3254 is powered by an internal power supply.
PE AK
PE AK
VID EO
GA IN
SY NC
LE VE L

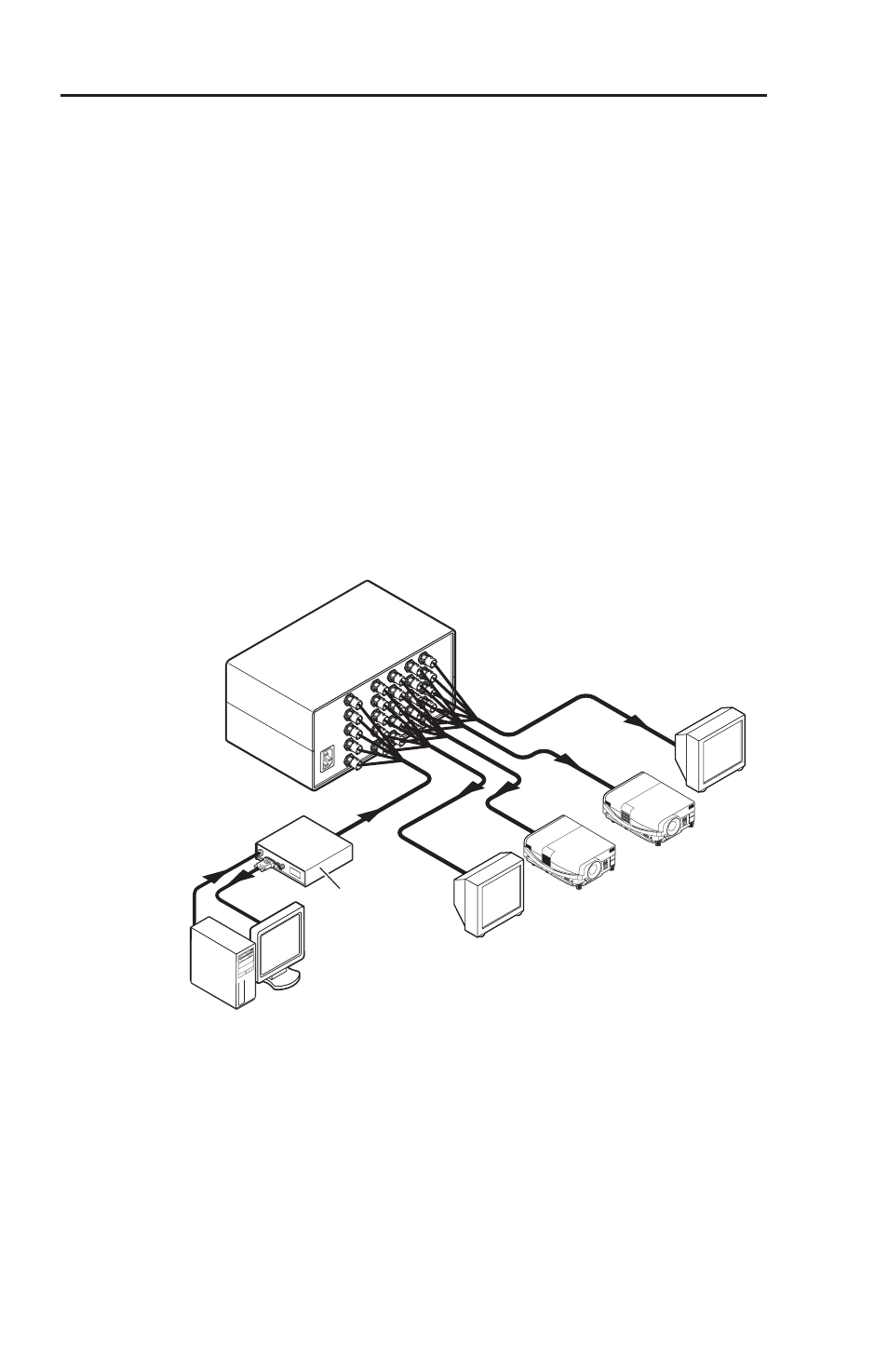

Extron
IN3254
RGBHV
Distribution Amplifier
Projector
PC
Monitor
Monitor
BUFF ERED LOC AL MON ITOR OUT PUT
INPU T
H. SH IFT
RGB 109 x i
ID P IN 4 ID P IN 1 1
BUFF ERED LOC AL MON ITOR OUT PUT
INPU T
H. SH IFT
RGB 109 x i
ID P IN 4 ID P IN 1 1
Extron
RGB 109xi
VGA–UXGA
Interface
Projector
Features
400 MHz (-3 dB) video bandwidth — Provides outstanding
video performance.
Wide compatibility —
Compatible with RGBHV, RGBS, RGsB,
RsGsBs, tri-level sync component video (HDTV), bi-level
sync component video, S-video, as well as high resolution
monochrome video and composite video baseband signals.
