IN3254 • Introduction

Introduction, cont’d

1-6

Sync Level:

Set this switch to adjust the

sync

portion of the video with the sync signal.
HI

— Applies 5 volts peak-to-peak.

LOW

— Applies 3 volts peak-to-peak.

N

Adjustments apply to all four

outputs.

Input and output connections

RGB and component video inputs

— Connect an RGBHV,

RGBS, RGsB, RsGsBs component video, S-video, composite

video source to these BNC connectors.
RGB and component video outputs

— Connect RGB or

component video displays or other devices to these BNC

connectors for each video output.

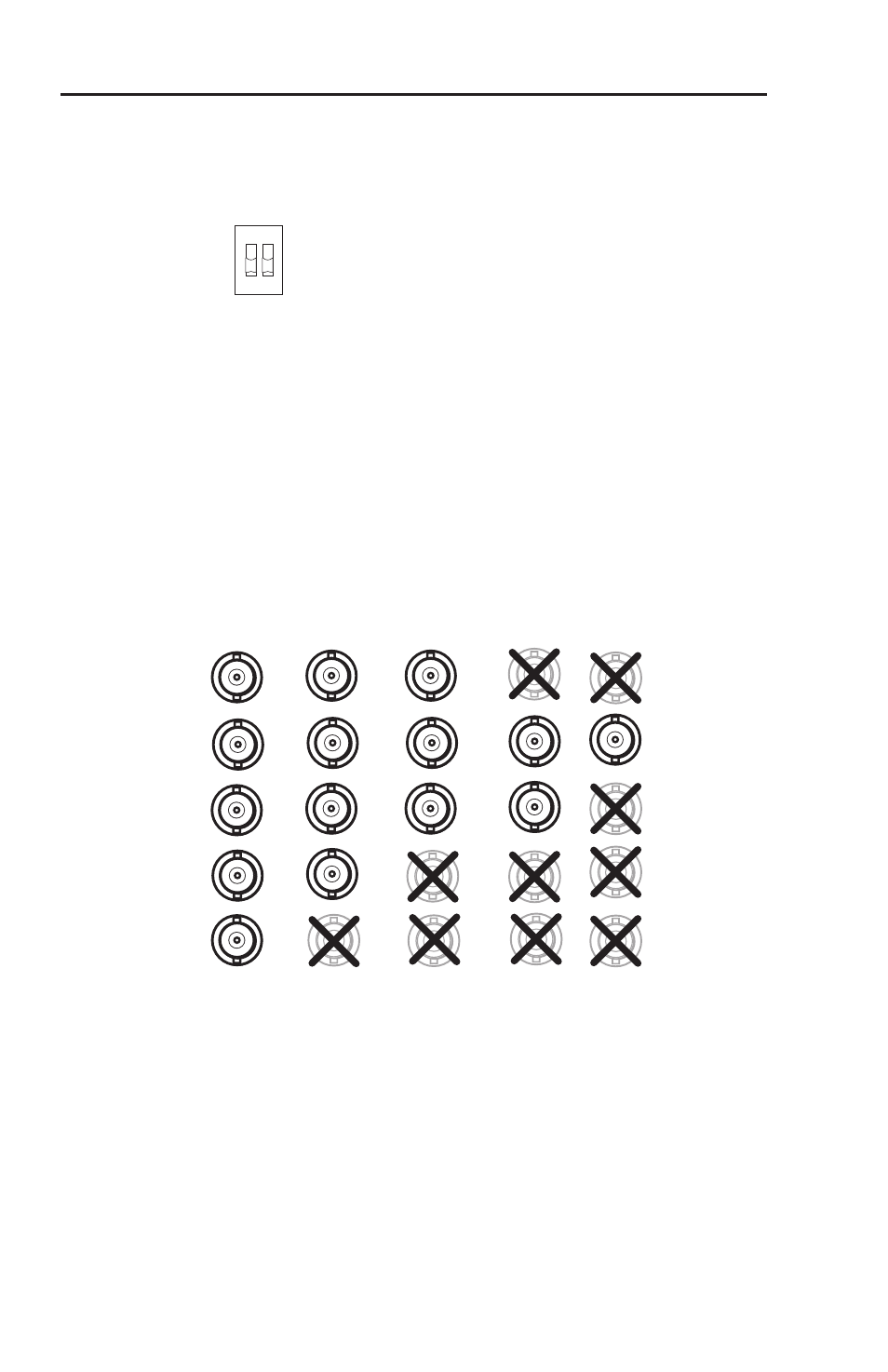

Connect the cables for the desired input or output signal, as

shown below.

R

G

B

H

V

RGBHV

RGBS

RGsB,
RsGsBs,
Component

S-Video

Composite

N

When making connections, ensure that inputs and

outputs are using the same signal (e.g., S-video BNCs

are connected on both input and output connectors).
