Specifications, Installation and operation (cont.), Video — cvda/avda 6 mx, cvda/avda 6 mx dual – Extron Electronics SVDA 6A MX User Manual
Page 4: Video — svda 6 mx

3
Extron • Audio/Video Distribution Amplifiers
2
Extron • Audio/Video Distribution Amplifiers
Installation and Operation (cont.)
L
R
2
3
L
R
Ground (Gnd). Connecting it to a negative (-) terminal will
damage audio output circuits.
___ There is no physical way to prevent you from
plugging an audio connector part in one channel and
part in the adjacent channel. This could cause
damage.
_ Use captive-screw audio connectors shown here. Additional connectors
may be ordered from Extron.

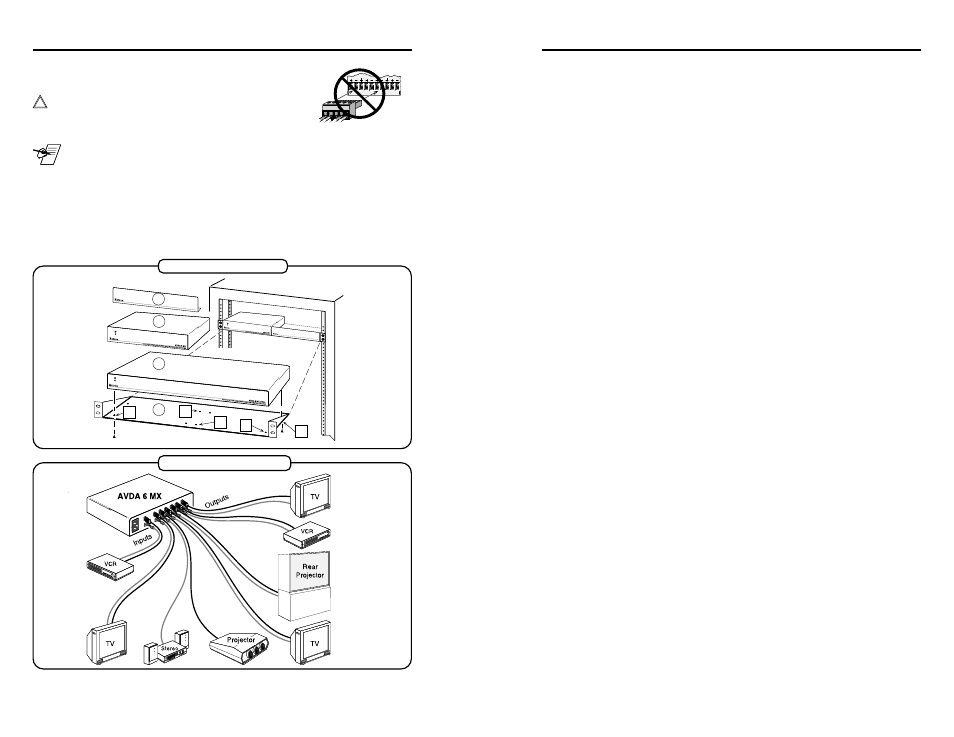

Rack-Mounting the Audio/Video Distribution Amplifier (A/V DA)
To rack-mount the A/V DA use the Rack-Mount Diagram below and do the following:
1. Remove feet from the case if previously installed.
2. Mount the A/V DA on the rack shelf (A) using two 4-40 x 3/16" screws in opposite
corners (under the shelf) to secure the case to the shelf. Use holes E1 and E2 or
F1 and E3 for a half width case (C), E1 and E3 for a full width case (B). If
necessary, use filler panel D with front two screw holes (F1 and F2).
Use the Connection Diagram above as a guide for all A/V DA connections.
A
B
C
D
E
1
F
1
F
2
E2
E3
R
ACK
M
OUNT
D
IAGRAM
C
ONNECTION
D
IAGRAM
Specifications
Video — CVDA/AVDA 6 MX, CVDA/AVDA 6 MX Dual
Bandwidth ..................................... 30 MHz (<±0.5dB)
Video — SVDA 6 MX
Gain ................................................ Unity
Bandwidth ..................................... 30 MHz (-3dB)
Differential phase error .............. 0.03°, 0 to 50 MHz
Differential gain error ................. 0.05%, 0 to 50 MHz
Crosstalk ....................................... -60dB @ 3.58 MHz
Video input — CVDA/AVDA 6 MX, CVDA/AVDA 6 MX
Dual, SVDA 6 MX
Number/signal type
CVDA/AVDA 6 MX ....... 1 composite video
CVDA/AVDA 6 MX Dual 2 composite video
CVDA 6 MX Quad ........... 4 composite video
SVDA 6 MX ....................... 1 S-video
Connectors
CVDA/AVDA models .... 1, 2, or 4 BNC female (depending on the
model)
SVDA models ................... 1 4-pin mini-DIN female
Minimum/maximum levels
CVDA/AVDA models .... Analog 0.4V to 1.4V p-p with no offset at
unity gain
SVDA 6 MX ....................... Analog 0.4V to 2.0V p-p with no offset at
unity gain
Impedance .................................... 75 ohms
Return loss .................................... -30dB @ 5 MHz
Maximum DC offset .................... ±5mV
Video output — CVDA/AVDA 6 MX, CVDA/AVDA 6
MX Dual, SVDA 6 MX
Number/signal type
CVDA/AVDA 6 MX ....... 1 x 6 composite video
CVDA/AVDA 6 MX Dual 2 x 6 composite video
CVDA 6 MX Quad ........... 4 x 6 composite video
SVDA 6 MX ....................... 6 S-video
Connectors
CVDA/AVDA 6 MX ....... 1 x 6 BNC female
