- 16 -

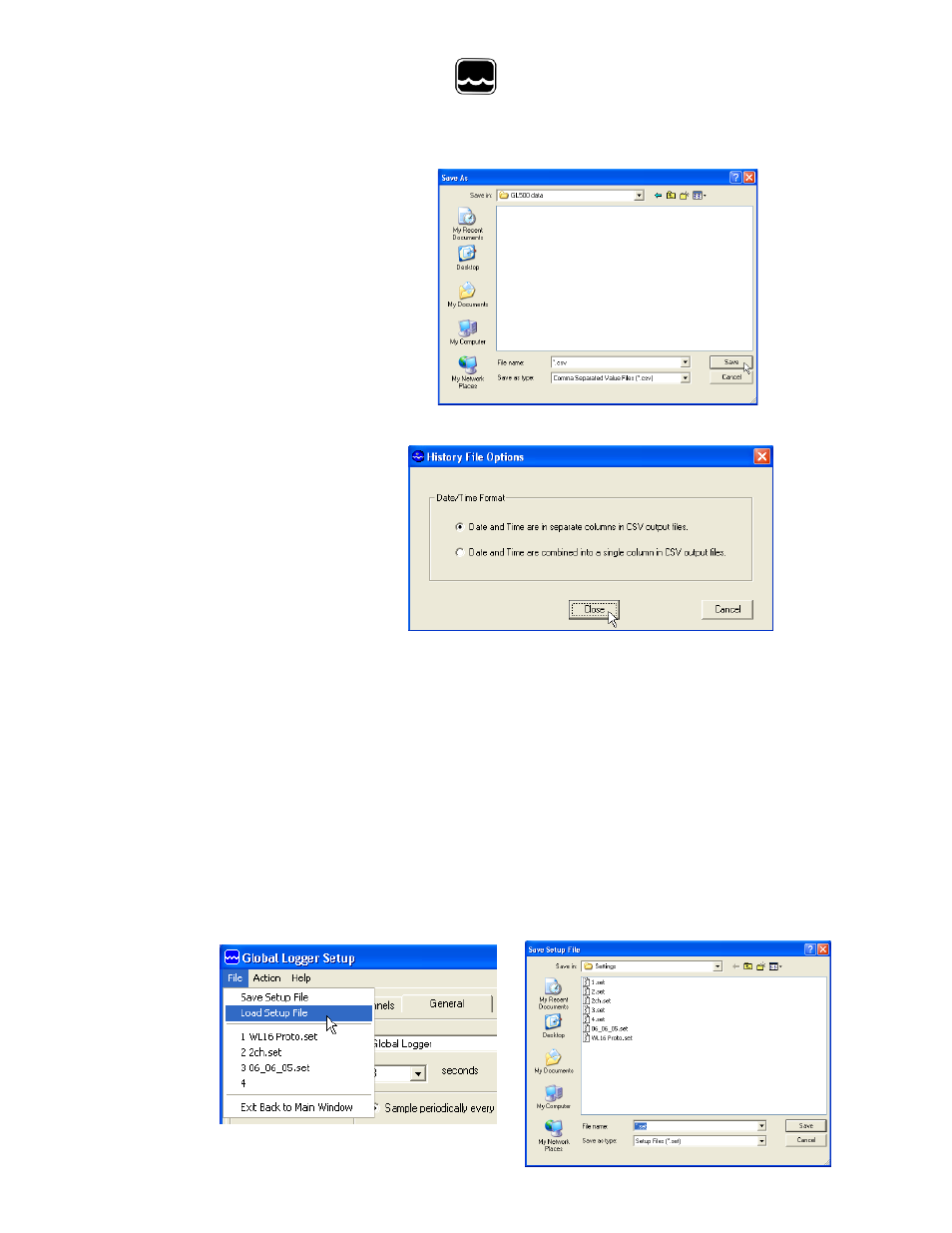

Save to File: Clicking this button
allows the data to be exported to an
Excel compatible .CSV file.
Specify the path and the file name
and click the Save button
Options: This opens a menu which
Allows you to select if you want the
Time and date in the time stamp to
Be in one column or two in the saved
.CSV file. Click Close to return.
OK: Clicking the OK button
returns you to the main screen.
XII. Setup Menus:
Clicking the Setup button enters the setup menu which is composed of three
sections, Analog, Digital and General; with the digital screen not being supported by
the PL200H logger. The first screen to appear is General Setup. At the top of the
setup screen is a toolbar with three options, File, Action and Help.
File: The File option allows you to exit the setup screen but most importantly, it
allows all of the configuration information for the logger to be saved to a file or
restored from a file. Select “Load Setup File” to restore a configuration from a file
that has been previously saved or “Save Setup File” to save the current setup and
calibration information. The last 4 files are shown for convenience. Setup files have
a .SET extension. It is advised that after you calibrate and configure the logger, you
save the configuration to a file as a backup precaution before exiting the setup
menu.
