Xylem EPR IM Electric heater-circulator unit EPR (obsolete) User Manual
Page 10

10
Instruction manual Laing Electric heater circulator unit
www.lainginc.com
The integrated microprocessor control in the housing on top of the Electric
heater circulator unit performs a variety of control functions for a large number
of applications.
The heating elements are noiselessly switched by electronic relays.

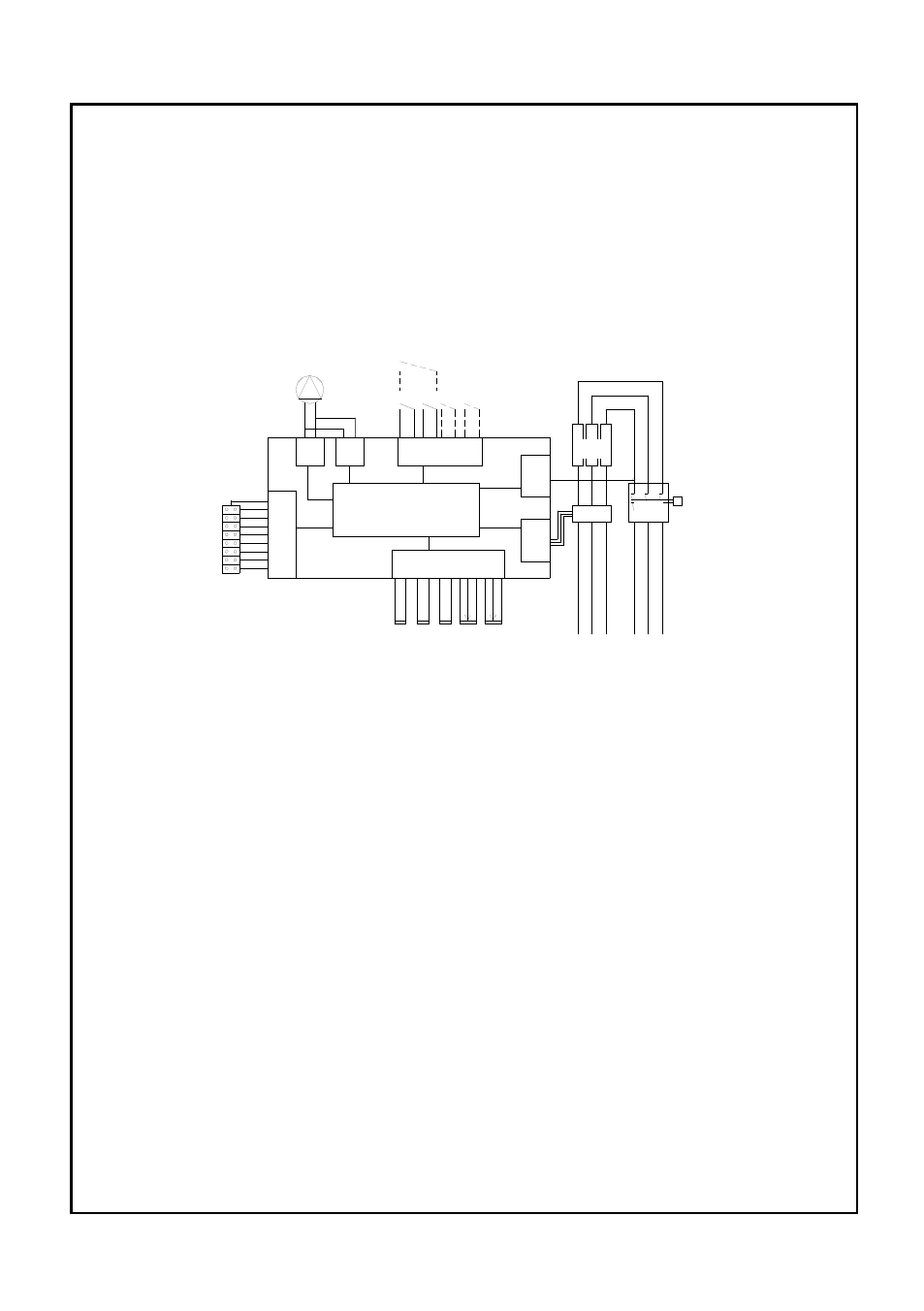

Schematics of the integrated control
The block diagram shows the control in schematic presentation
B
Temperature sensor for feed temperature
C
Temperature sensor for the safety temperature limiter
D
Temperature sensor for the semiconductor relays
G
Pump operation control logic
IS
Input for external control and remote control
MP Microprocessor
O
Control for the semiconductor relays
P
Potentiometer for constant temperature setting
PI
Pump performance control
Q
Safety temperature limiter
RA Analog inputs for temperature sensors and temperature pre-selection
T
Potentiometer for safety temperature setting
TI
Safety temperature limiter control logic
W
Heating elements
X
Semiconductor relays
Y
Jumper settings for operation mode
Temperature sensor B monitors the temperature of the feed line water and
PI G
IS
W
TI
Y
MP
X
Q
O
RA
B C D P TS
