Modem:
This page is needed for specification of a telephone number and additional initialization commands.
Modem
Connect: Connecting to a modem by dialling the previously recorded telephone number
and initialization commands
Disconnect: Disconnecting the modem
Info
Information about the software version and contact details for the company MJK is displayed.
Read-out of stored data
After initialization, a list of all available recordings is displayed.
Every recording is shown with a selection check box, a sequence number, start date and time, as well
as memory used as a percent of total memory.
The recordings to be read can be selected by checking off the box next to the recording number.

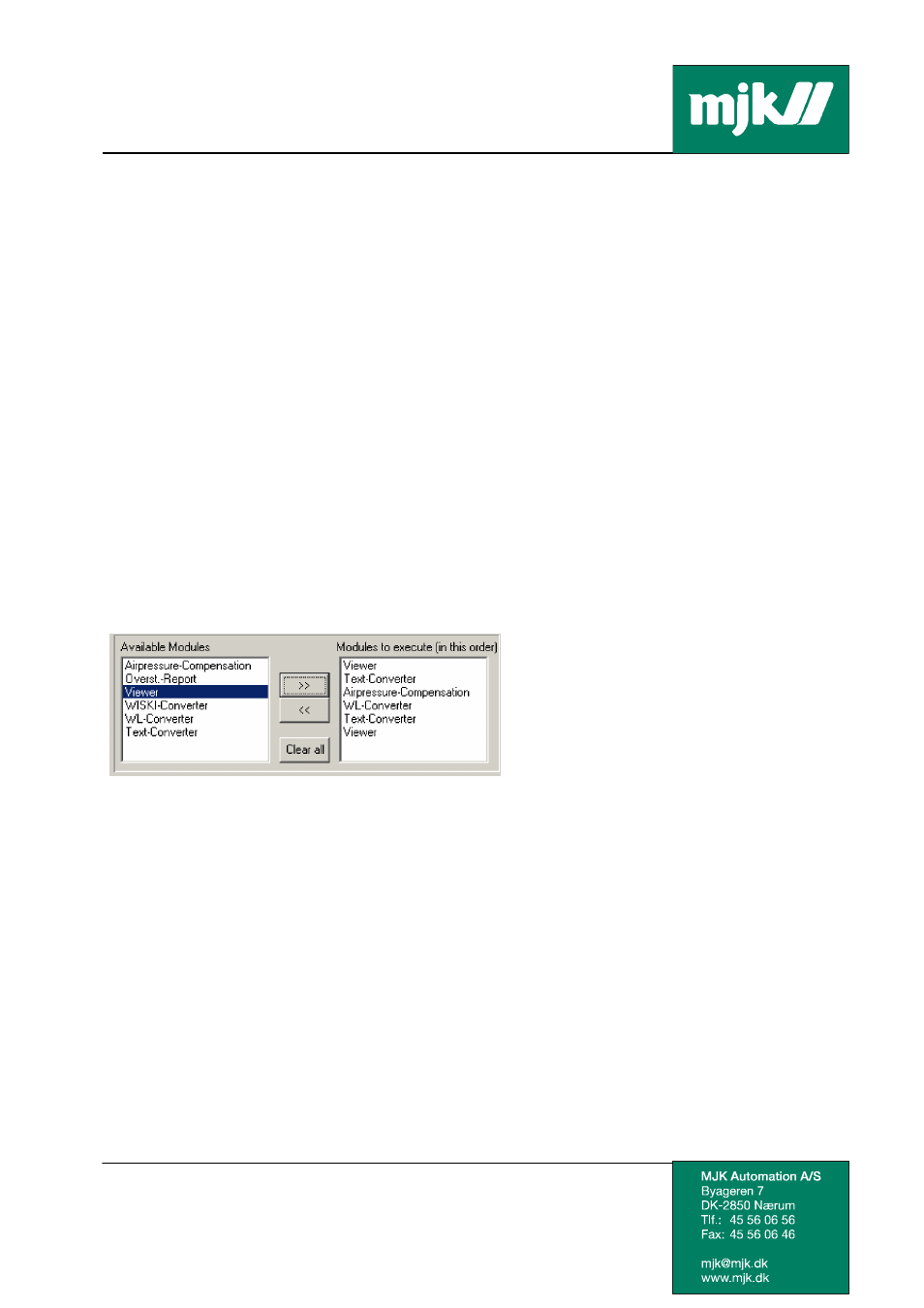

Various modules can be selected for the display or further processing of the data. The list "Modules to
be execute (in this order)" is built by clicking ">>" and "<<" and reset with "Clear All". The same
module can be invoked multiple times (see illustration).
After selecting the recordings to be read out and modules to be executed, the read-out procedure is
initiated by clicking Read Record(s).
For each recording read out, a file is created with a filename based on the following pattern:
"(Device ID+date+time+Index).idc"
The files are saved in the directory "Common Data" created during installation. This is located in the
destination directory (Default:" C:\Programmer\MJK\MJK Log Link V 4.0\CommonData”) specified at
installation.
Thereafter, all selected modules in the list are executed one after another. Depending on the module,
the user may asked to provide additional details (see module description)
Setting a mark
If a recording that was not yet stopped is read out, (only possible for recording No. 1) the following
dialog window appears:
