Display module (Viewer)

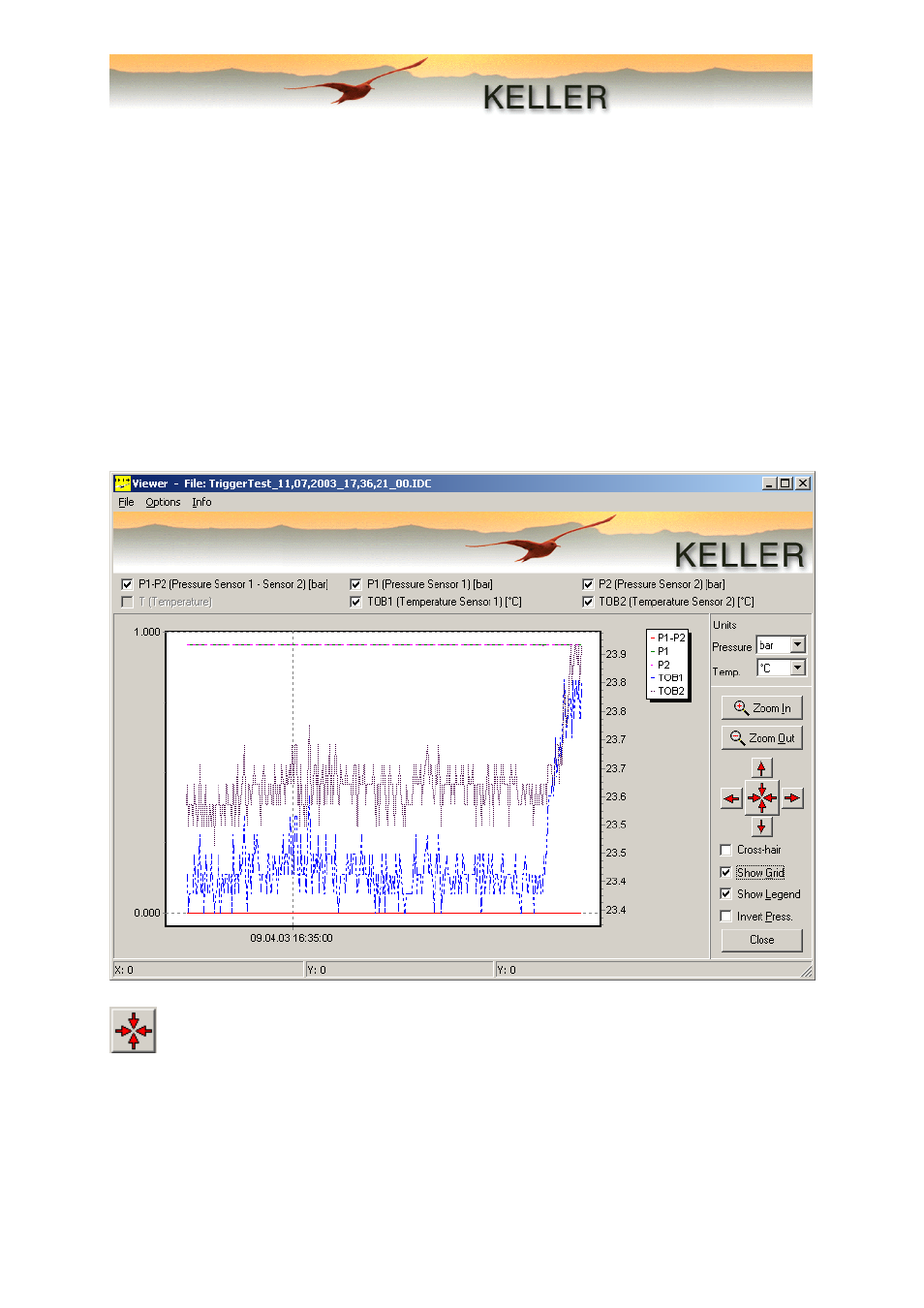

This module is used for displaying the measured values read out. The user can select the following
options to customize the view:
- Channels to be displayed
- Pressure and temperature units
- Zoom in and zoom out of the graph
- Display of cross-hair, grid and legend
- For better viewability, the pressure values can be inverted and displayed. This is especially
recommended for files with water level values (virtual representation of the water height).
Under "File – Save as Bitmap..." the graph is saved in the default format (*.bmp).
The status bar displays the x- and y-values per unit respectively.
Clicking this button resets the display to its starting state.
