Operation handylab pH 12
46 ba75368e04 01/2011
4.5.2 Recorder (analog output)
You can transmit data to a recorder via the analog output. Connect the ana-
log output to the recorder via the Z 394 interface cable.
The data output automatically switches to Recorder output.

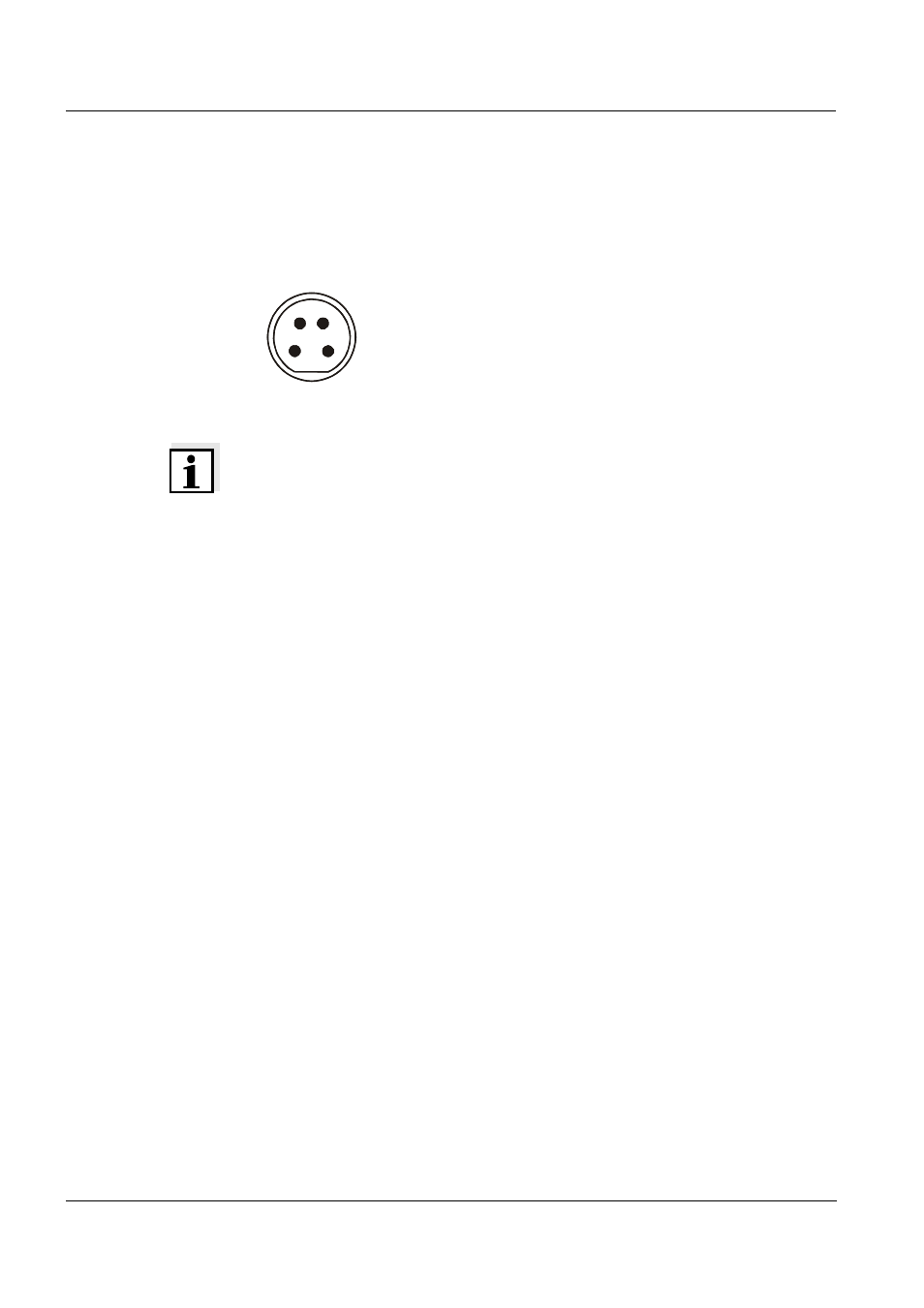

Socket
assignment
Note
The analog output is activated automatically in the cable by connecting 2 and
3.
At the analog output, there is a low-impedance electrode signal (correspond-
ing to 50 ... 62 mV/pH).
1 free
2 Plug coding
3 Ground
4 Analog output
1 2
3 4
RS 232
REC
(internal resistance < 5 Ohm)
