Page 16
14
Vortex Installation, Operation and Maintenance Manual
IV. Routine Maintenance
General
Always disconnect the pump from the mains before inspection or
disassembly.
Clean the pump thoroughly.
The motor housing can be hot when the pump is just switched off.
Maintenance Schedule
Check oil once a year. If water is present oil will be milky in color.
Lubricants
• The bearings are greased for life and need no refill.
• The oil reservoir is filled with SHELL VITREA ISO-VG 46. Viscosity: 46 c St.
• Oil quantities: 20 oz.

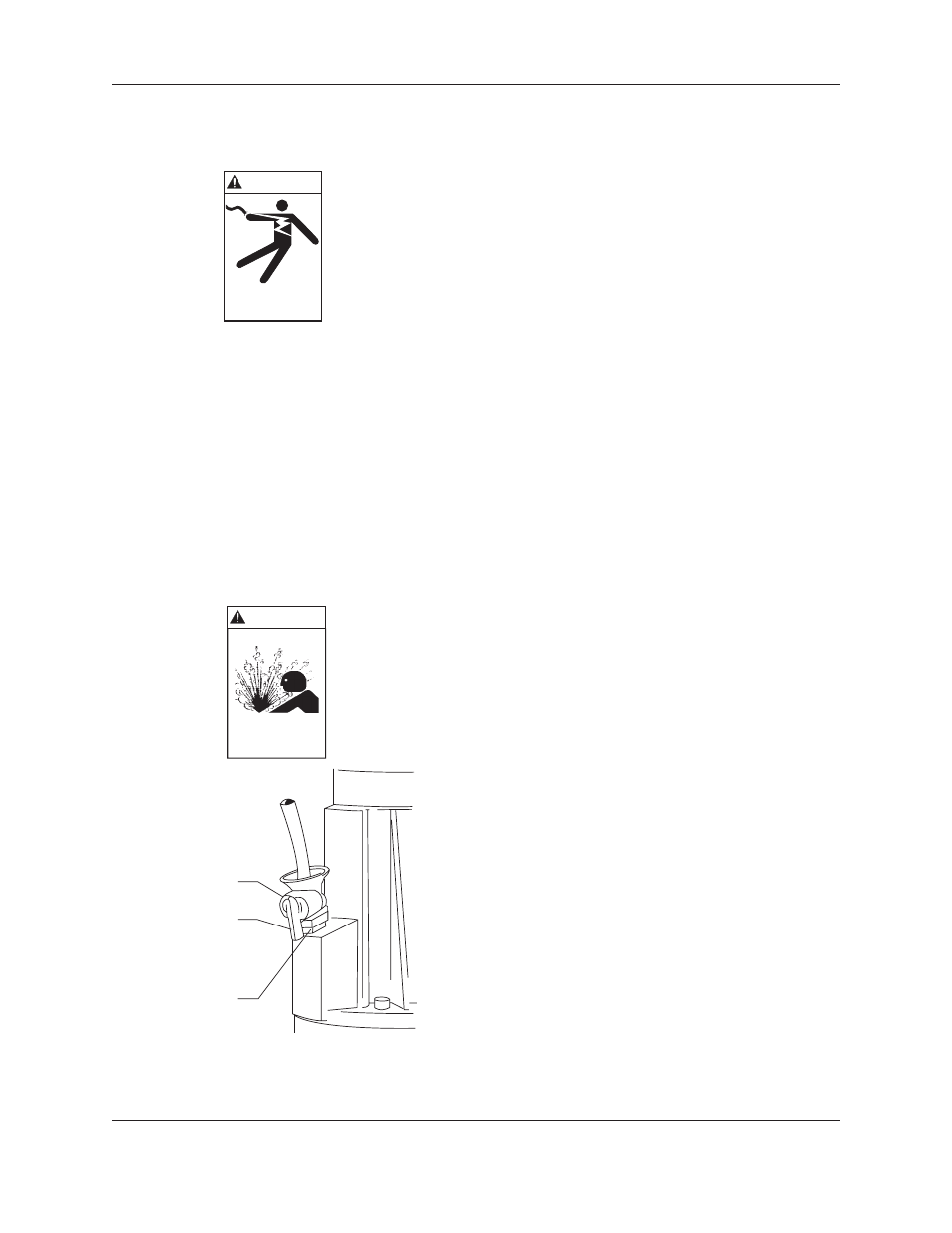

Cable Entry
Especially when the pump has been in use for a long time, the compression of the rubber
cable seal might be diminished, which can cause leakage. By screwing in the cable entry the
seal will be retained.
Screw in the 2 hexagon socket screws (1).
Figure 9
Hazardous pressure can
cause personal injury or
property damage.
CAUTION
1
2
3
WARNING
Hazardous voltage
can shock, burn or
cause death.
Routine Maintenance
