4
General Characteristics
2-pole
SSV Product Range 1SV 2SV 3SV 4SV 33SV 46SV 66SV 92SV
Nominal Flow (GPM) 15 30 60 85 150 220 350 450
Flow Range (GPM) 2 – 22 6 – 40 11 – 75 17 – 110 30 – 195 45 – 285 70 – 420 90 – 580
Max. Head (Ft) 1100 945 1005 930 1125 1210 850 715
Max. Working Pressure (PSI) 2 360 PSIG 1 360 / 580 PSIG
Temperature Range -20ºF to 250ºF (-30ºC to -121ºC)
Motor Power (HP) ½ – 5 HP ¾ – 5 HP 2 – 15 HP 5 – 20 HP 3 – 60 HP 7½ – 75 HP 10 – 75 HP 15 – 75 HP
Max. Pump Efficiency 44% 58% 64% 67% 76% 78% 78% 80%
Material of Construction
SVA
AISI 304SS – – – –
SVB AISI 304SS Cast Iron / AISI 316L
SVC AISI 304SS – – – –
SVD AISI 316LSS Cast Stainless Steel / AISI 316L
Connection Sizes
SVA – Oval NPT
1" NPT 1¼" NPT 1½" NPT
– – – – –
(female) (female) (female)
SVB – Round ANSI 1¼" 1¼" 2" 2" 2½" 3" 4" 4"
Size/Class 300# 300# 300# 300# 125/250# 1325/250# 125/250# 125/250#
SVC – Top/Bottom Round 1¼" 1¼" 2" 2"
– – – –
ANSI – Size/Class 300# 300# 300# 300#
SVD – Round ANSI 1¼" 1¼" 2" 2" 2½" 3" 4" 4"
Size/Class 300# 300# 300# 300# 150/300# 150/300# 150/200# 150/300#
Optional Connections (on request)
Victaulic (PJE)
1¼" 1¼" 2" 2"
– – – –
(Victaulic) (Victaulic) (Victaulic) (Victaulic)
1 Some staging may have MAWP of 580 psi (40 bar).
2 See pages 53-60 for specific details.

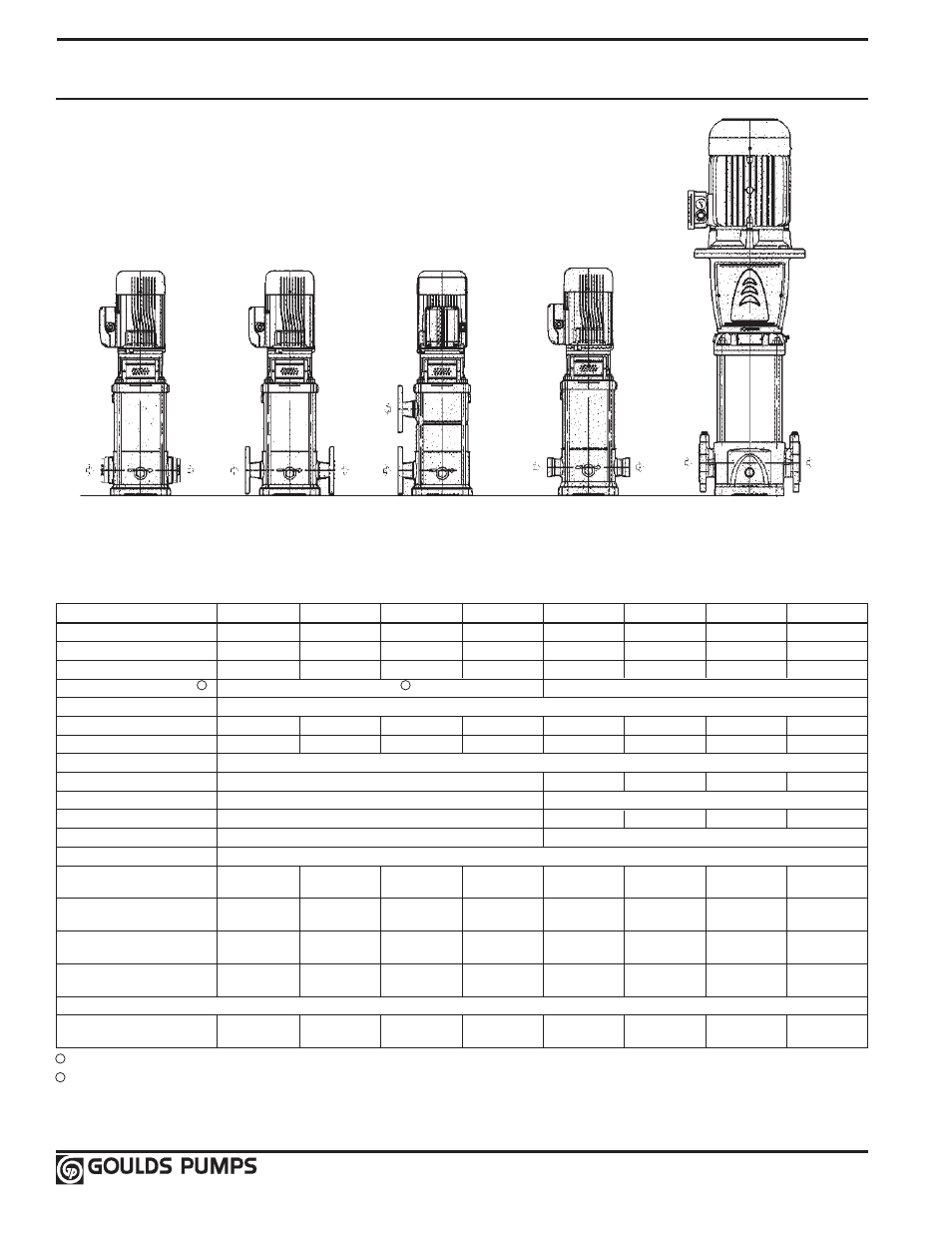

SVA
1SV, 2SV, 3SV
SVB, SVD
1SV, 2SV, 3SV, 4SV
SVC
1SV, 2SV, 3SV, 4SV
VICTAULIC
1SV, 2SV, 3SV, 4SV
SVB, SVD
33SV, 46SV, 66SV, 92SV
