ITEM NUMBER PART
NUMBER DESCRIPTION REQUIRED NUMBER
1-5 Motor with Pump Head 1 180007
4 Water Slinger 1 DP0848
5 Pump Head 1 DP0206
7 Head Gasket 1 DG0134
8 Impeller 1 DP0321
9 Case Wearing Ring 1 DP0482
9-10 Pump Case with Wearing Ring 1 DP1602
16 Head to Case Capscrews 3 DJ0077
17 Case to Receiver Gasket 1 DG0060
Seal Kit including Mechanical
Seal, Head Gasket & Case to 1 180013
Receiver Gasket
Complete Pump and
Motor Assembly
1 180005

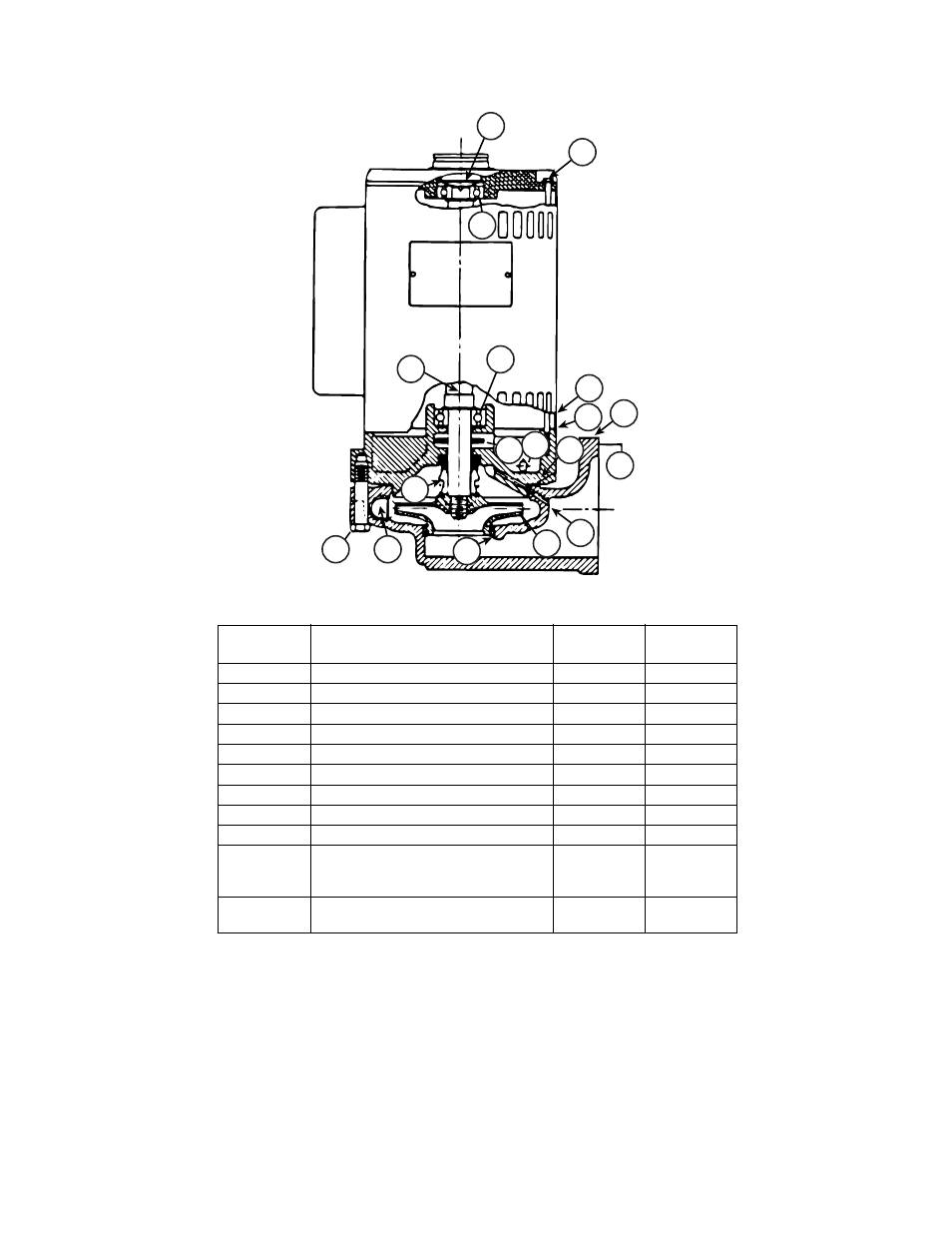

W ATCHMAN “A” DESIGN PUMP AND MOTOR ASSEMBLY
15
14
12
10
16 13
11
17
1
5
2 4
88
6
3
9
7
12
15
14
12
12
3
1
5
10
17
16 13
11
9
8
6
7
2
4
Or der Replacement Parts by Description and Part No.
Specify Serial No. shown on nameplate.
