6
LED Indicators
Installing or removing the battery
Your smartphone uses a replaceable battery to provide power. It is packed
separately from your smartphone and needs to be inserted and charged before you
can use the smartphone.

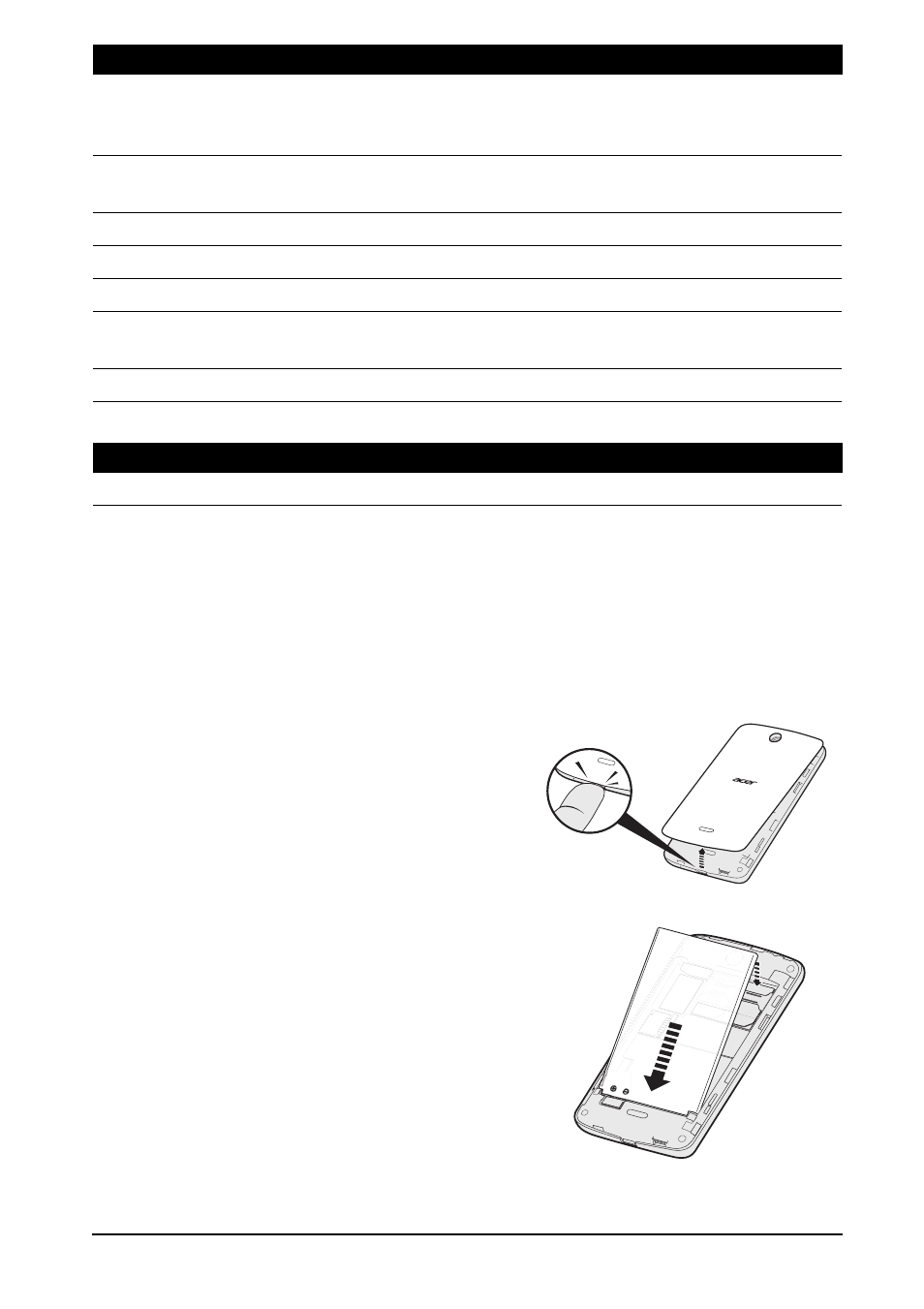

Installing the battery
Insert your fingernail into the micro USB port
between the battery cover and the phone. Put
fingers on the middle of the battery cover for
leverage. Unclip the cover with your fingernail
and lift it off the phone.
Place the battery into the battery compartment,
lining up the battery connectors with those at
the bottom of the compartment.
4 Touchscreen 3.5-inch, 320 x 480 pixel capacitive touchscreen
to display data, phone content and enter
information.
5 Phone speaker Emits audio from your smartphone; suitable for
holding to your ear.
6 Micro USB connector Connects to a USB cable/charger.
7 Microphone Internal microphone.
8 Camera A camera for taking high-resolution images.
9 Handsfree stereo speakers Emit stereo audio from your smartphone; suitable
for handsfree use.
10 Volume up/down buttons Increases or decreases the phone volume.
Status Description
Red Charging.
No. Item Description
