PAM8008
A Product Line of
Diodes Incorporated

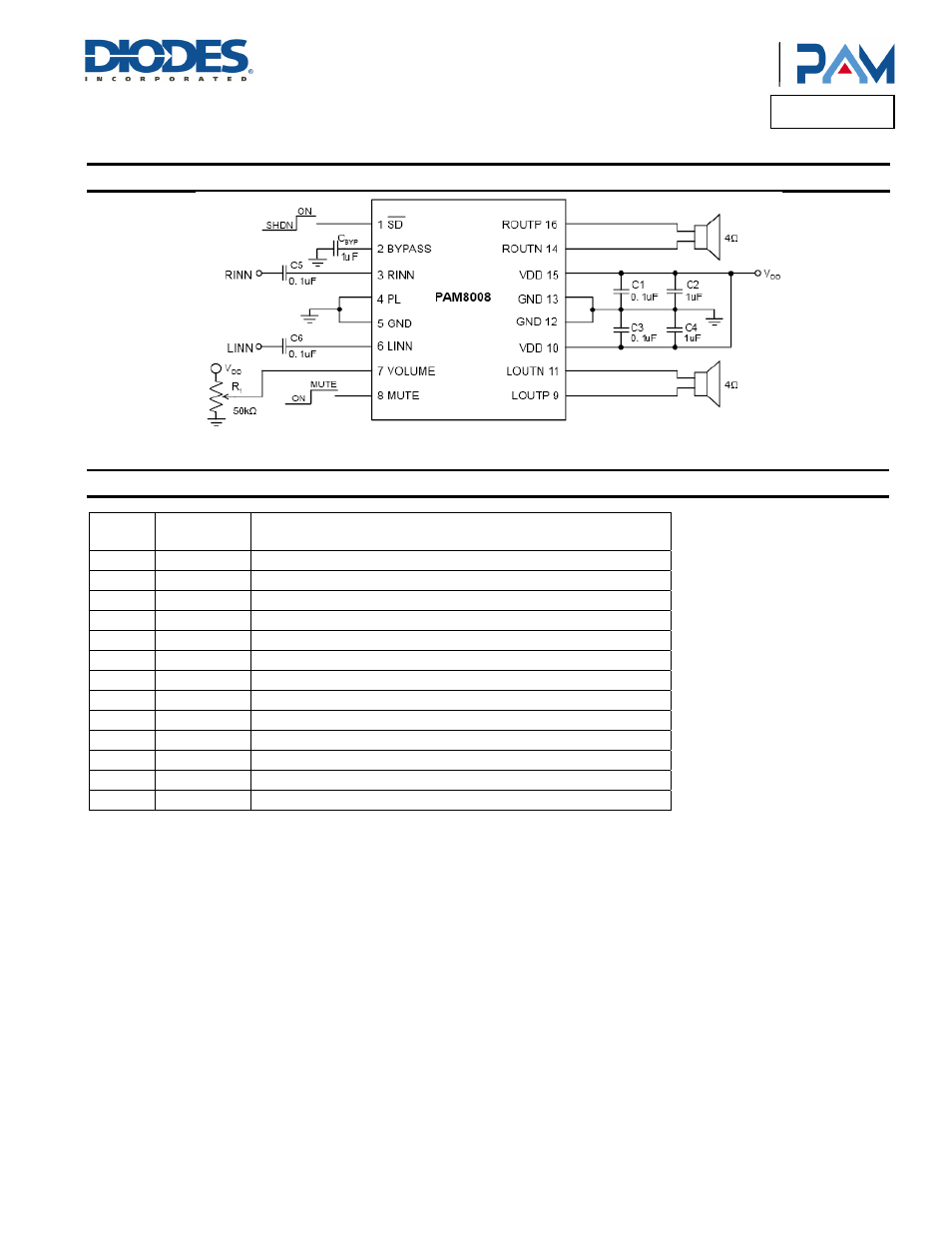

Typical Applications Circuit
Pin Descriptions
Pin
Number
Pin
Name
Function
1 SD Full Chip ShutdownControl Input (active low).
2 BYPASS Bias Voltage for Power Amplifiers.
3 RINN Negative Input of Right Channel Power Amplifier.
4 PL Connect PL to GND for Power Limit Setting.
5, 12, 13 GND Ground Connection.
6 LINN Negative Input of Left Channel Power Amplifier.
7 VOLUME DC Volume Control to Set the Gain of Class-D.
8 MUTE Mute Control Input (active high).
9 LOUTP Positive Output of Left Channel Power Amplifier.
10, 15 VDD Power Supply.
11 LOUTN Negative Output of Lef t Channel Power Amplifier.
14 ROUTN Negative Output of Right Channel Power Amplifier.
16 ROUTP Positive Output of Right Channel Power Amplifier.
