PAM2845
Document number: DSxxxxx Rev. 1 - 2
3 of 14
www.diodes.com
October 2012
© Diodes Incorporated
PAM2845
A Product Line of
Diodes Incorporated

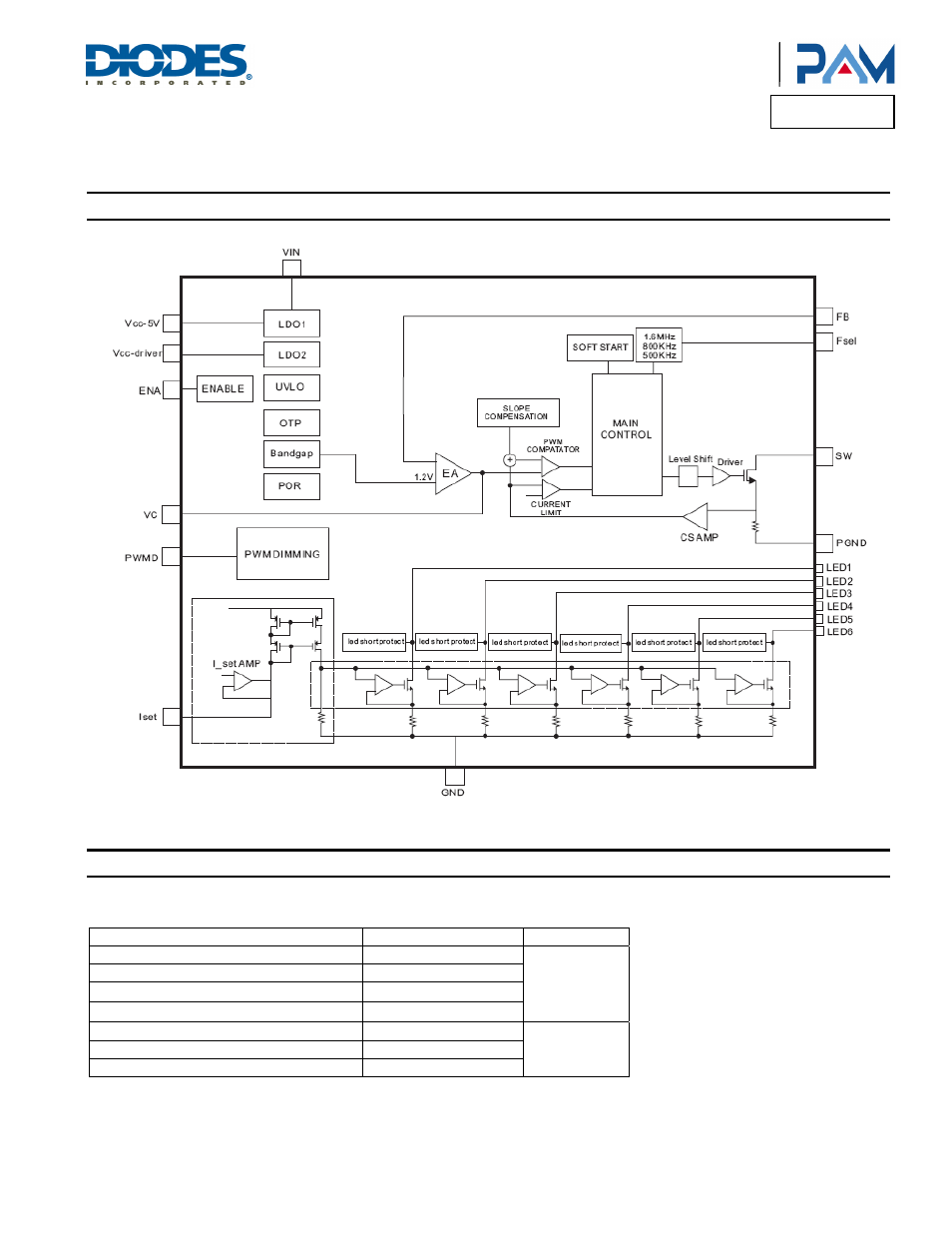

Functional Block Diagram
Absolute Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
These are stress ratings only and functional operation is not implied. Exposure to absolute maximum ratings for prolonged time periods may
affect device reliability. All voltages are with respect to ground.
Parameter Rating Unit
VIN, ENA -0.3 to +30
V
SW, LED -0.3 to +40
V
CC
-5V, V
CC
–Driver, VC -0.3 to +6.0
PWMD. F
SEL
, FB, I
SET
-0.3 to +6.0
Storage Temperature -65 to +170
°C Maximum Junction Temperature 170
Soldering Temperature 300, 5sec
