PAM2803
Document number: DSxxxxx Rev. 1 - 1
2 of 9
July 2013
© Diodes Incorporated
PAM2803
A Product Line of
Diodes Incorporated
Pin Description
Pin
Number
Pin
Name
Function
1
SW Switch
2
GND Ground
3
FB Feedback
4
SHDN Shut
Down
5 VOUT
Output
6 VIN
Input

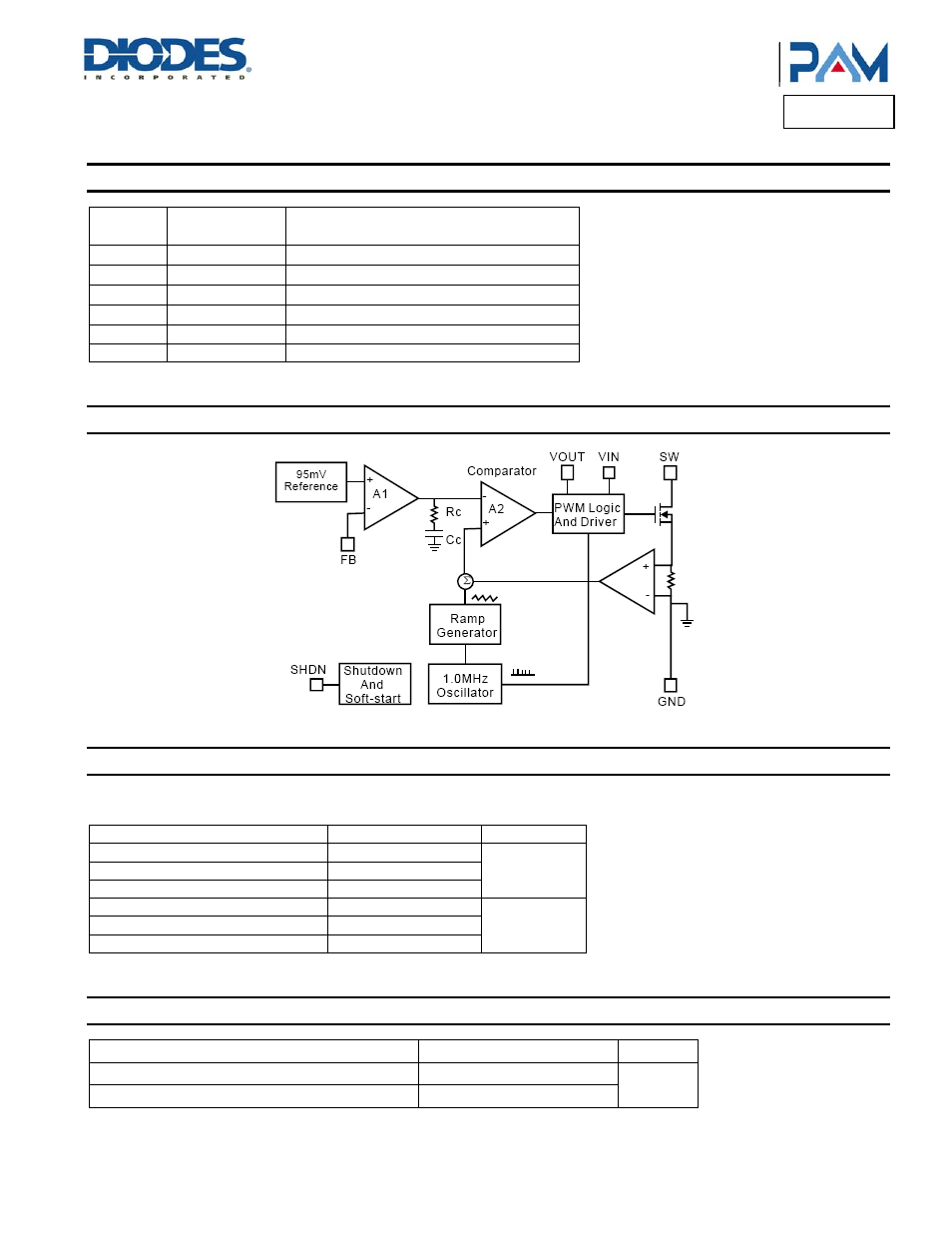

Block Diagram
Absolute Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
These are stress ratings only and functional operation is not implied. Exposure to absolute maximum ratings for prolonged time periods may
affect device reliability. All voltages are with respect to ground.
Parameter Rating
Unit
Input Pin Voltage
-0.3 to +6
V
SW Pin Voltage
-0.3 to +6
SHDN, FB Pin Voltage
-0.3 to +6
Operating Temperature Range
-40 to +85
°C
Storage Temperature Range
-65 to +125
Lead Temperature (Soldering, 5 sec)
300
Recommended Operating Conditions
(@T
A
= +25°C, unless otherwise specified.)
Parameter Rating
Unit
Junction Temperature
-40 to +125
°C
Ambient Temperature
-40 to +85
