PAM2808
A Product Line of
Diodes Incorporated
Pin Description
Pin
Number
Pin
Name
Function
1 NC Not Connected
2 VIN Input Voltage
3 EN Enabled
4 GND Ground
5 NC Not Connected
6 FB Feedback
7 VOUT Output Voltage
8 NC Not Connected

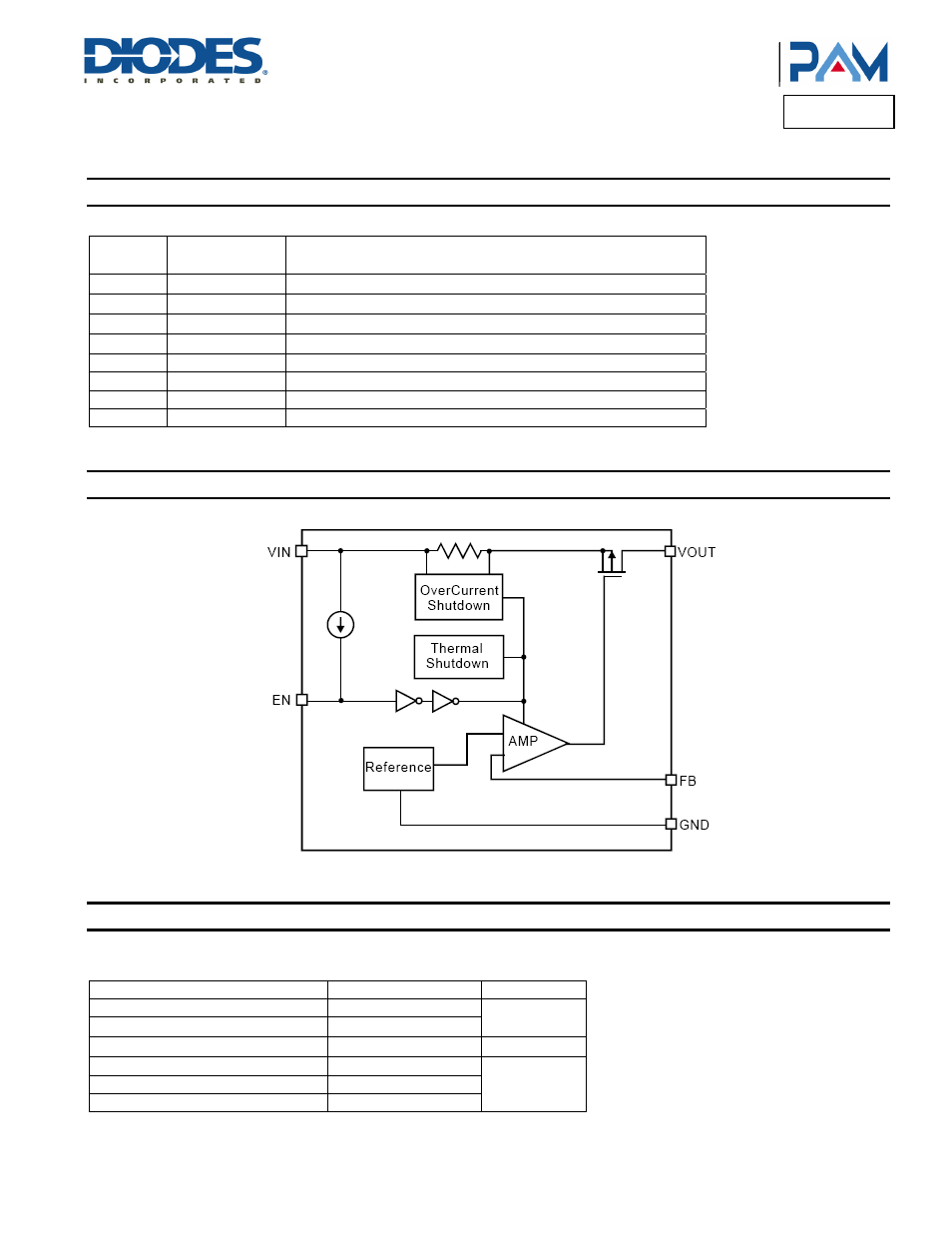

Block Diagram
Absolute Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
These are stress ratings only and functional operation is not implied. Exposure to absolute maximum ratings for prolonged time periods may
affect device reliability. All voltages are with respect to ground.
Parameter Rating Unit
Input Pin Voltage 6.5
V
EN, FB VOUT Pin Voltage -0.3 to V
IN
+0.3
Maximum Output Current P
D
/(V
IN
– V
O
) —
Storage Temperature -65 to +150
°C Maximum Junction Temperature 150
Lead Soldering Temperature 300
