PAM2800
Document number: DSxxxxx Rev. 1 - 3
1 of 7
www.diodes.com
October 2012
© Diodes Incorporated
PAM2800
A Product Line of
Diodes Incorporated
HIGH POWER WHITE LED DRIVER
Description
The PAM2800 is a high power white LED driver with 350mA constant
rated source current. It features high efficiency and low quiescent
current, making it ideal for battery powered applications.
Features
• High Efficiency 92%
• Up to 350mA Constant Source Current
• Low Quiescent Current: Typ. 65µA
• 0.5µA Shutdown Current
• Short Circuit Protection
• Open Load LED Protection
• Thermal Protection
• Space Saving Package SOT23-5
• Pb-Free Package
Pin Assignments
Applications
• High Power White LED Driver

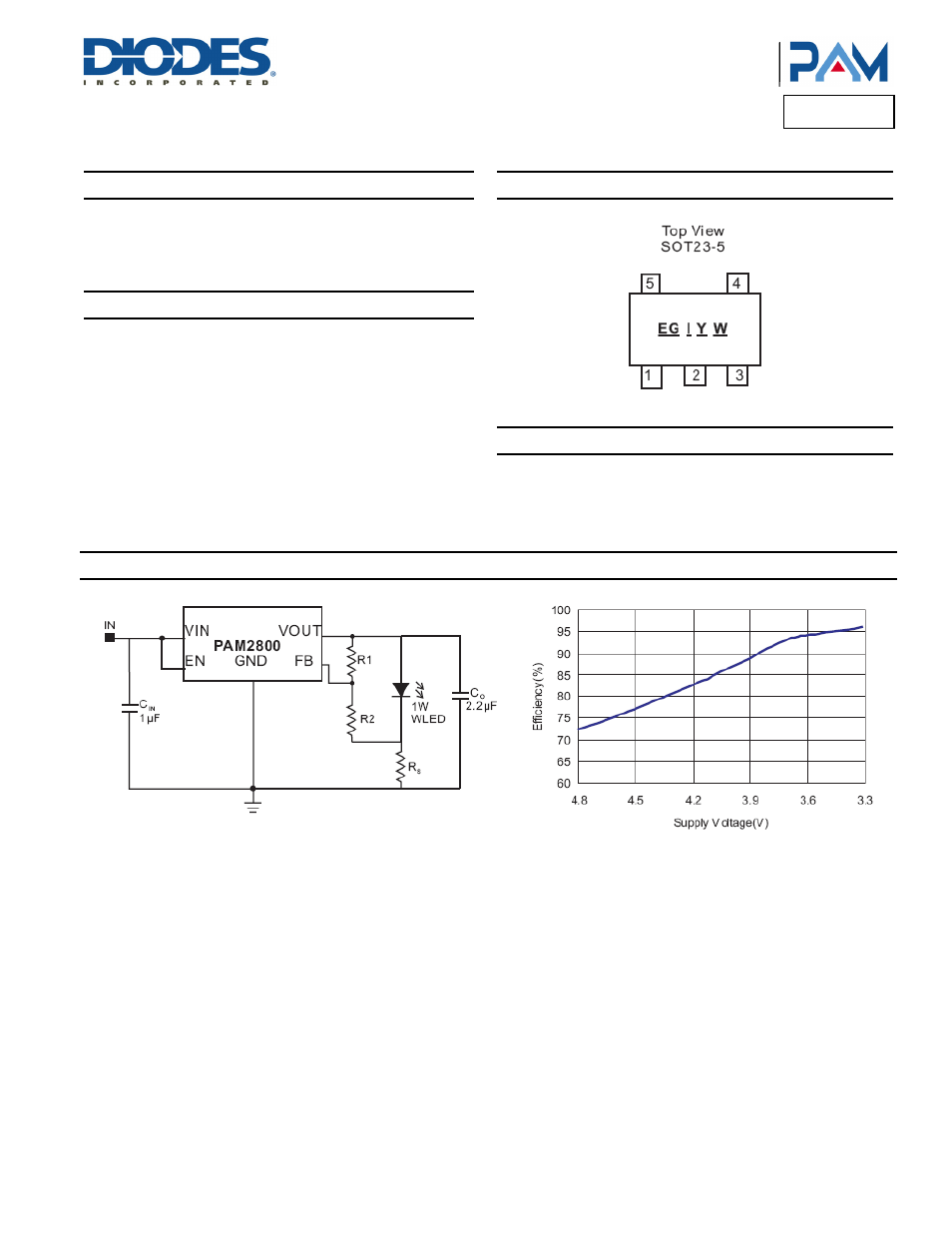

Typical Applications Circuit
Figure 1
