Application Information
(cont.)
Setting the Output Voltage
The internal reference is 0.8V (Typical). The output voltage is calculated as below:
⎟
⎠
⎞
⎜
⎝
⎛ +
=
2 R
1 R
1 x 8 . 0 V
O
The output voltage is given by Table 1.
Table 1: Resistor selection for output voltage setting.
V
O
R1 R2
1.2V 56k 110k
1.5V 130k 150k
1.8V 150k 120k
2.5V 215k 100k
3.3V 374k 120k
5.0V 620k 120k

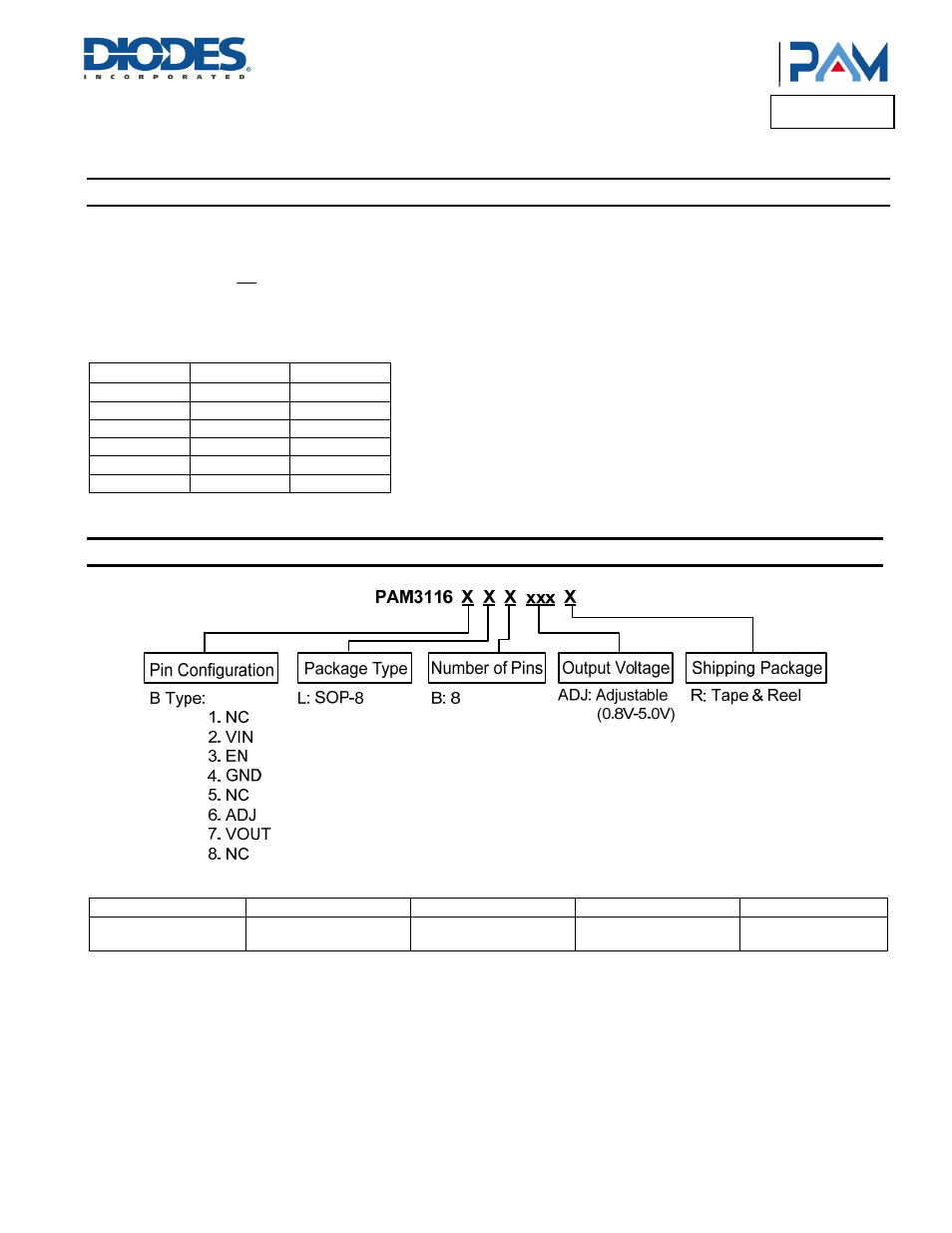

Ordering Information
Part Number Output Voltage Marking Package Type Standard Package
PAM3116BLBADJR Adjustable
P3116
XXXYW
SOP-8 2500 Units/Tape&Reel
