PAM3102
Document number: DSxxxxx Rev. 1 - 2
2 of 12
www.diodes.com
July 2013
© Diodes Incorporated
PAM3102
A Product Line of
Diodes Incorporated
Pin Descriptions
Pin
Number
Pin
Name
Function
1 CE1 Output 1 Enable
2 VIN Input
3 CE2 Output 2 Enable
4 VOUT2 Output 2
5 GND Ground
6 VOUT1 Output 1

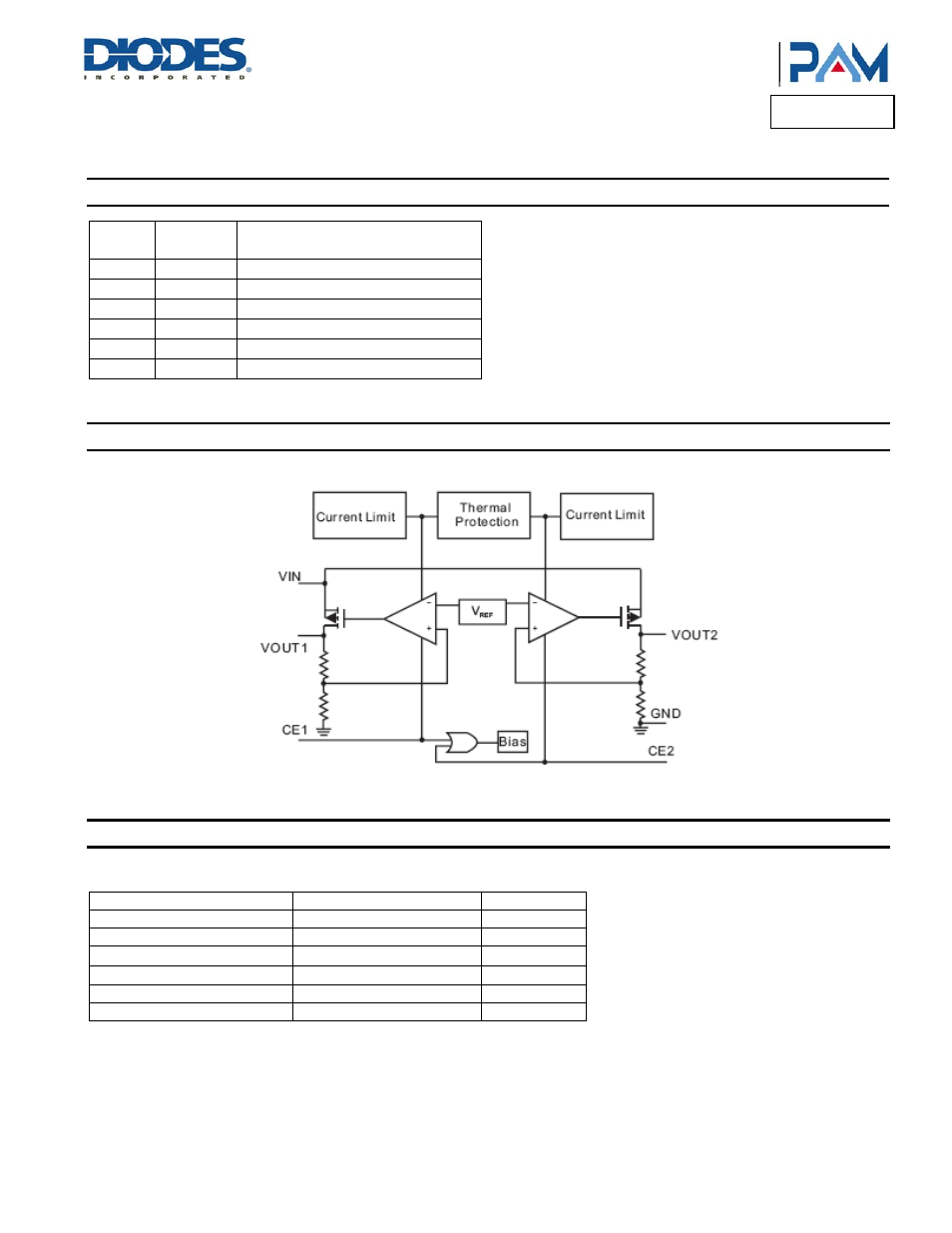

Functional Block Diagram
Absolute Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
These are stress ratings only and functional operation is not implied. Exposure to absolute maximum ratings for prolonged time periods may
affect device reliability. All voltages are with respect to ground.
Parameter Rating Unit
Input Voltage 6.0 V
Output Current 150/150 mA
Output Pin Voltage GND -0.3 to V
IN
+0.3V V
Storage Temperature -40 to +125 °C
ESD Rating (HBM) 2 kV
Lead Soldering Temperature 300, (5sec) °C
