PAM2306
Document number: DSxxxxx Rev. 1 - 2
1 of 15
www.diodes.com
November 2012
© Diodes Incorporated
PAM2306
A Product Line of
Diodes Incorporated
DUAL HIGH-EFFICIENCY PWM STEP-DOWN DC-DC CONVERTER
Description
The PAM2306 is a dual step-down current-mode, DC-DC converter.
At heavy load, the constant frequency PWM control provides
excellent stability and transient response. To ensure the longest
battery life in portable applications, the PAM2306 provides a power -
saving Pulse-Skipping Modulation (PSM) mode to reduce quiescent
current under light load operation.
The PAM2306 supports a range of input voltages from 2.5V to 5.5V,
allowing the use of a single Li+/Li-polymer cell, multiple Alkaline/NiMH
cell, USB, and other standard power sources. The dual output
voltages are available for 3.3V, 2.8V, 2.5V, 1.8V, 1.5V, 1.2V or
adjustable. All versions employ internal power switch and
synchronous rectifier to minimize external part count and realize high
efficiency. During shutdown, the input is disconnected from the output
and the shutdown current is less than 0.1A. Other key features
include under-voltage lockout to prevent deep battery discharge.
Features
Efficiency up to 96%
Only
40μA (typ per channel) Quiescent Current
Output Current: Up to 1A per Channel
Internal Synchronous Rectifier
1.5MHz Switching Frequency
Soft
Start
Under-Voltage
Lockout
Short Circuit Protection
Thermal
Shutdown
Small 12L WDFN3x3 Package
Pb-Free Package and RoHS Compliant

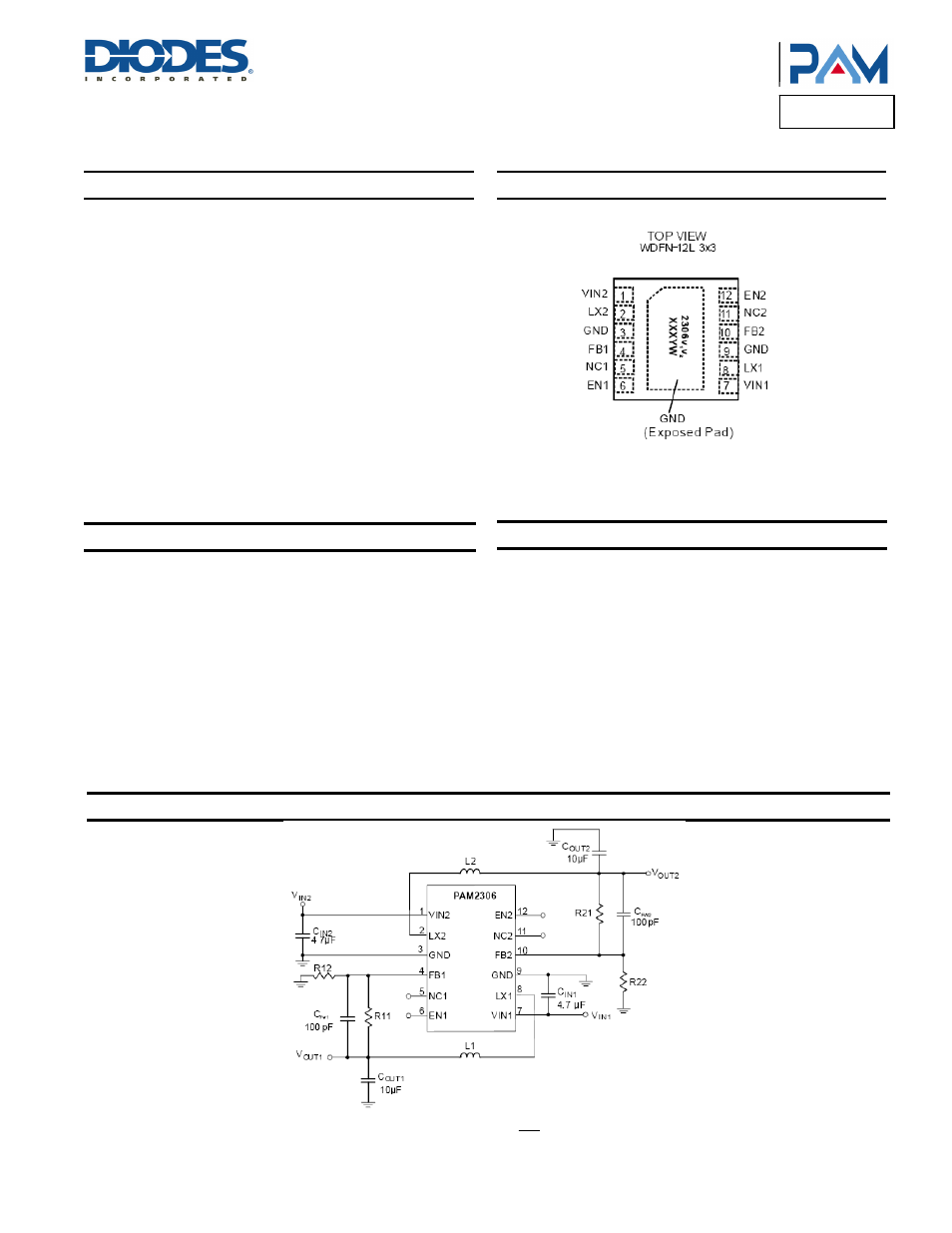

Pin Assignments
Applications
Cellular
Phone
Portable
Electronics
Personal Information Appliances
Wireless and DSL Modems
MP3
Players
Typical Applications Circuit
V
V
2
Rx
1
Rx
1
REF
OUT
Figure 1. Adjustable Voltage Regulator
