MMBZ15VDL, MMBZ27VCL

Document number: DS30352 Rev. 15 - 2

1 of 5

www.diodes.com

October 2013

© Diodes Incorporated

MMBZ15VDL, MMBZ27VCL


40W PEAK POWER DUAL SURFACE MOUNT TVS

Features

Dual TVS in Common Cathode Configuration for ESD Protection

40 Watt Peak Power Dissipation @1.0ms (Unidirectional)

 225mW

Power

Dissipation

Ideally Suited for Automated Insertion

 Low

Leakage

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3 & 4)

Mechanical Data

 Case:

SOT23

Case Material: Molded Plastic. UL Flammability Rating
Classification 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Solderable per MIL-STD-202, Method 208 Lead Free
Plating (Matte Tin Finish annealed over Alloy 42 leadframe).

Polarity: See Diagram

Weight: 0.008 grams (approximate)
















Ordering Information

(Note 5 & 6)

Part Number

Compliance Case

Packaging

MMBZ15VDL-7-F

Standard

SOT23

3000/Tape & Reel

MMBZ27VCL-7-F

Standard

SOT23

3000/Tape & Reel

MMBZ15VDLQ-7-F

Automotive

SOT23

3000/Tape & Reel

MMBZ27VCLQ-7-F

Automotive

SOT23

3000/Tape & Reel

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.
4. Product manufactured with Date Code V9 (week 33, 2008) and newer are built with Green Molding Compound. Product manufactured prior to Date

Code V9 are built with Non-Green Molding Compound and may contain Halogens or Sb

2

O

3

Fire Retardants.

5. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally

the same, except where specified.

6. For packaging details, go to our website at http://www.diodes.com/products/packages.html.



Marking Information











Date Code Key

Year

2006

2007

2008

2009

2010

2011

2012

2013 2014 2015 2016 2017

Code T U V W X Y Z A B C D E

Month

Jan

Feb

Mar

Apr

May

Jun

Jul

Aug

Sep

Oct

Nov

Dec

Code 1 2 3 4 5 6 7 8 9 O N D




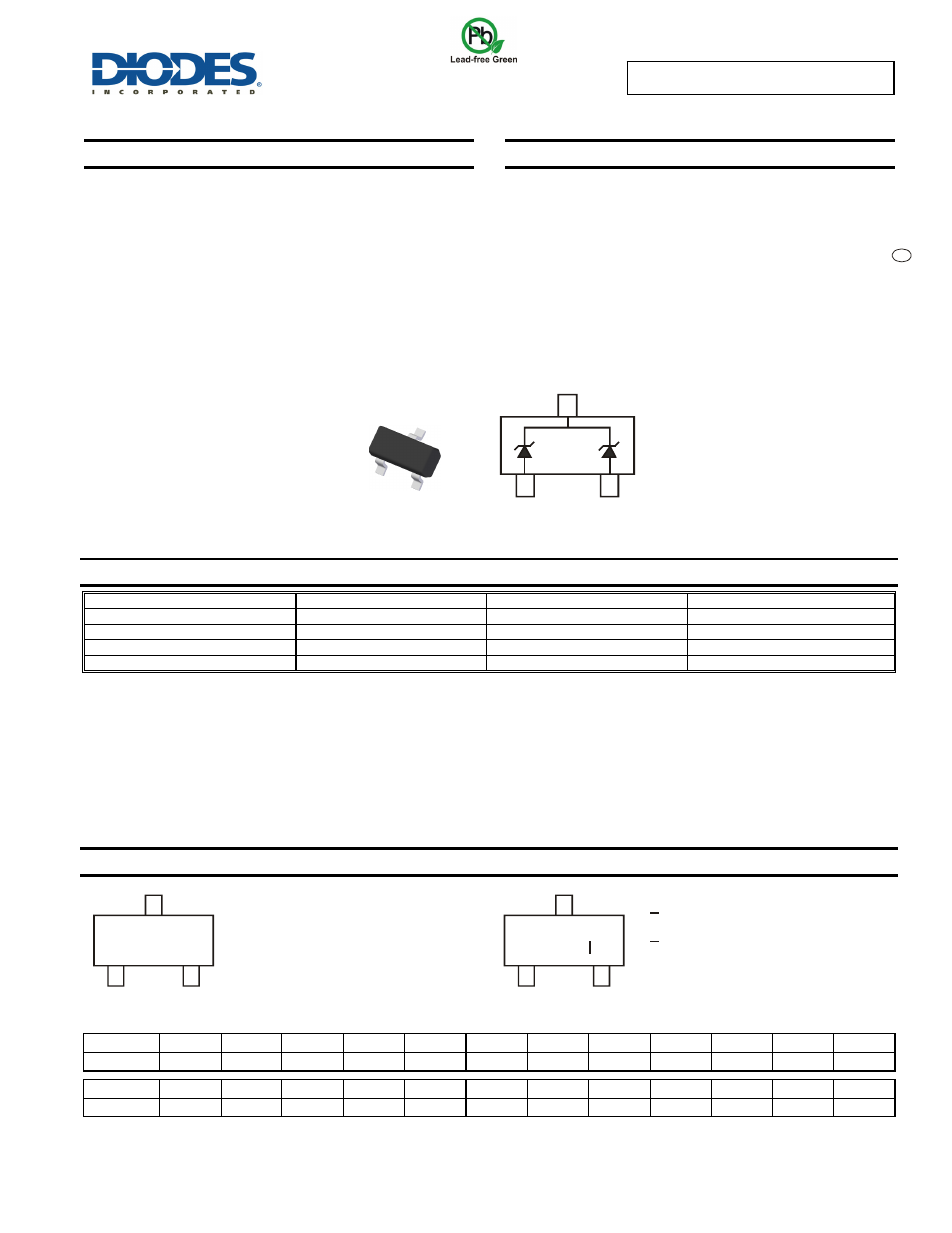

Top View

Device Schematic

SOT23

xx = Product Type Marking Code
YM = Date Code Marking for Shanghai
Assembly / Test site
Y = Year (ex: A = 2013)
M = Month (ex: 9 = September)

xx = Product Type Marking Code
= Date Code Marking for Chengdu
Assembly / Test site
= Year (ex: A = 2013)
M = Month (ex: 9 = September)

e3

Kxx

YM

Kxx

YM

YM

Y
