ZXTPS720MC
Document Number DS31938 Rev. 3 - 2
1 of 10
www.diodes.com
April 2011
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXTPS720MC
40V PNP LOW SATURATION TRANSISTOR AND
40V, 1A SCHOTTKY DIODE COMBINATION
Features and Benefits
PNP Transistor
• BV
CEO > -40V
•
I C = -3A Continuous Collector Current
• Low Saturation Voltage (-220mV max @ -1A)
•
R
SAT
= 104m Ω for a low equivalent On-Resistance
• h
FE
characterized up to -3A for high current gain hold up
Schottky Diode
• BV
R
> 40V
•
I
FAV
= 3A Average Peak Forward Current
• Low
V
F
< 500mV (@1A) for reduced power loss
• Fast switching due to Schottky barrier
•
Low profile 0.8mm high package for thin applications
•
R θJA efficient, 40% lower than SOT26
• 6mm 2 footprint, 50% smaller than TSOP6 and SOT26
• Lead-Free, RoHS Compliant (Note 1)
•
Halogen and Antimony Free. “Green” Device (Note 2)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case: DFN3020B-8
•
Case Material: Molded Plastic, “Green” Molding Component
•
Terminals: Pre-Plated NiPdAu leadframe
• Nominal package height: 0.8mm
• UL Flammability Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Weight: 0.013 grams (approximate)
Applications
• DC – DC Converters
• Charging circuits
• Mobile
phones
• Motor
control
• Portable applications
Ordering Information
(Note 3)
Product Marking Reel size (inches) Tape width (mm) Quantity per reel
ZXTPS720MCTA 3S1 7 8 3000
Notes: 1. No purposefully added lead.
2. Diodes Inc’s “Green” Policy can be found on our website http://www.diodes.com
3. For packaging details, go to our website http://www.diodes.com
Marking Information
3S1 = Product type marking code
Top view, dot denotes pin 1

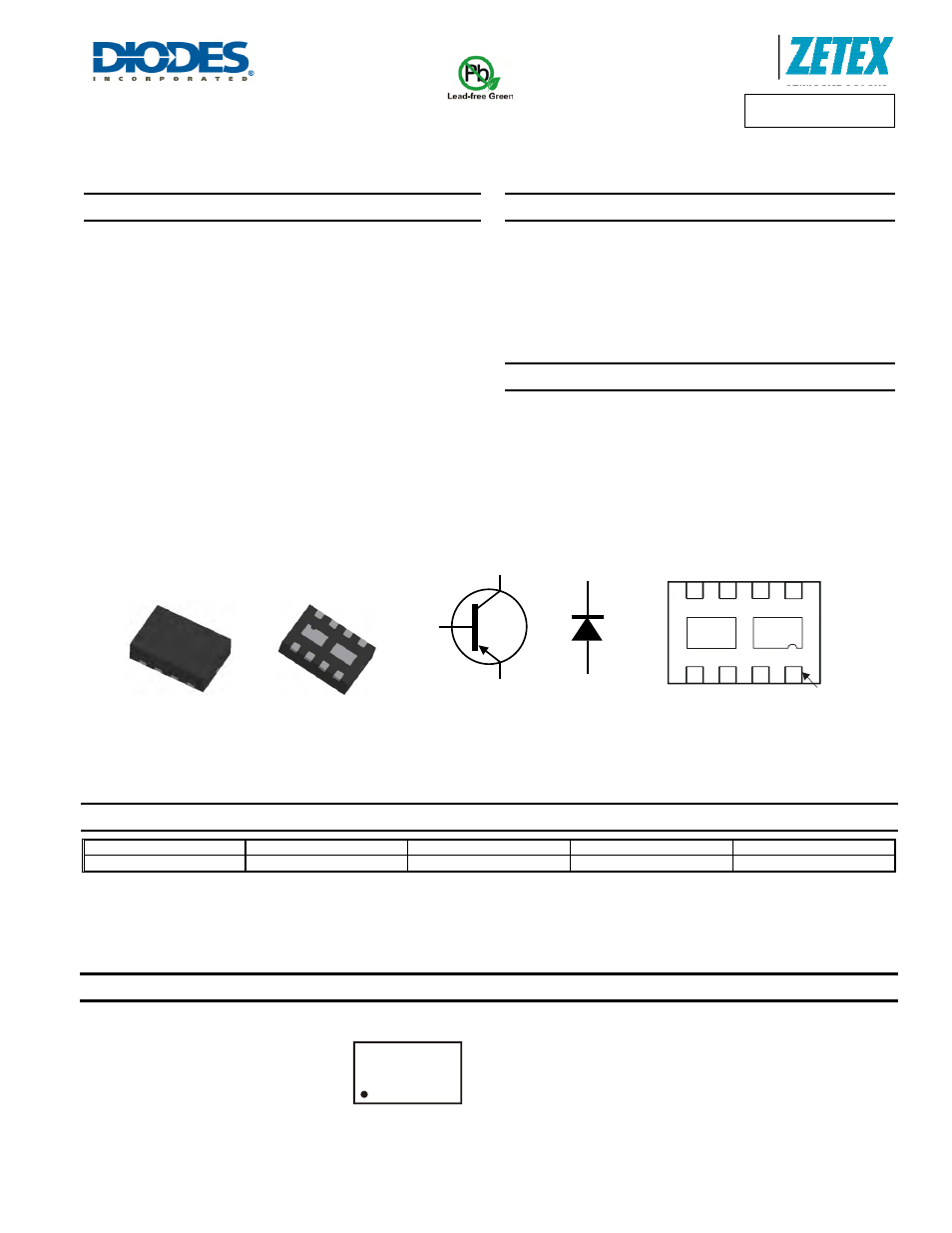

Equivalent Circuit
Top View Bottom View
DFN3020B-8
PNP Transistor Schottky Diode Bottom View
Pin-Out
n/c = Not Connected internally
C1
E1
B1
K2
A2
K2 K2 C1 C1
A2 n/c E1 B1
K2 C1
Pin 1
3S1
