ZXTPS718MC
Document Number DS31937 Rev. 3 - 2
9 of 10
www.diodes.com
April 2011
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXTPS718MC

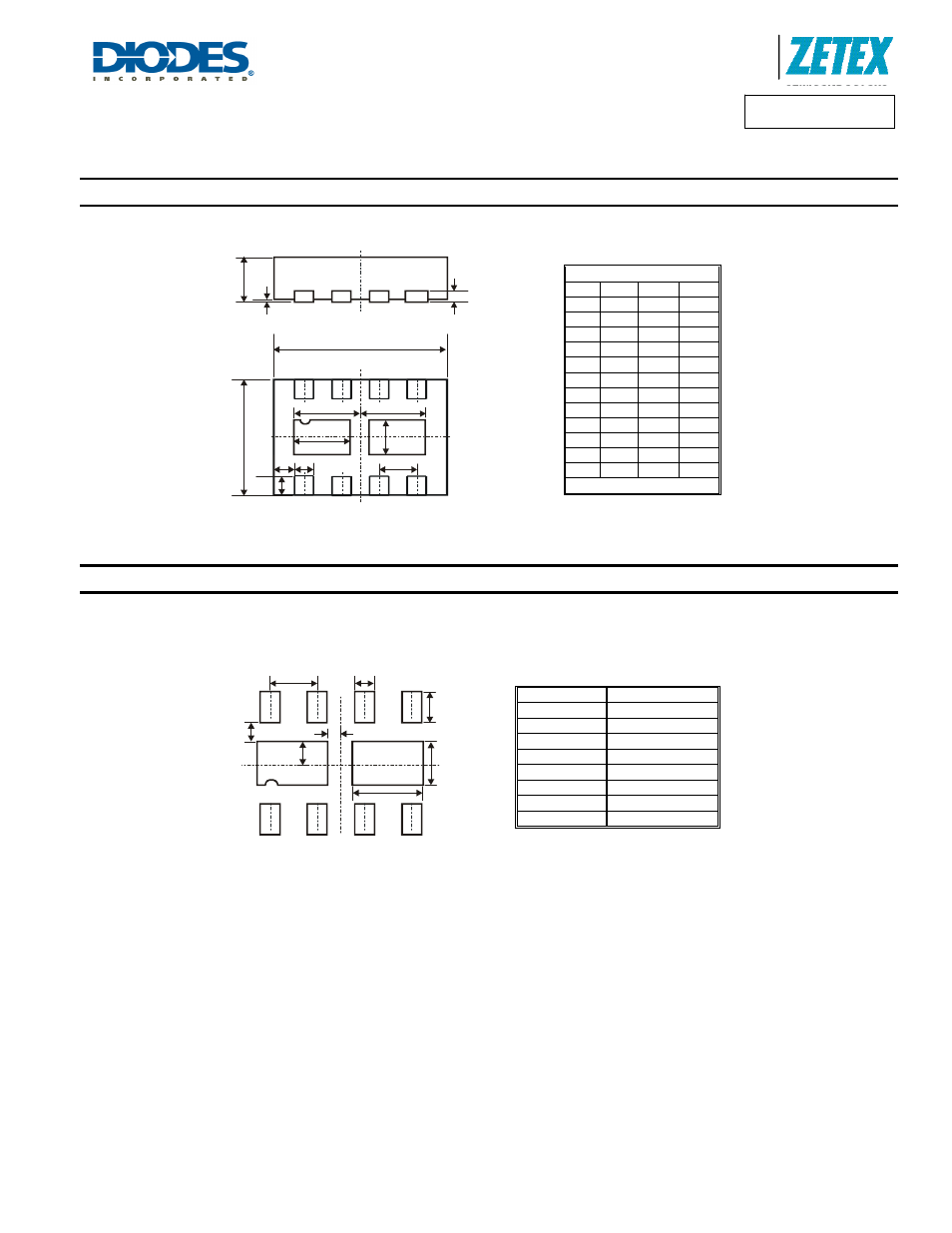

Package Outline Dimensions
Suggested Pad Layout
DFN3020B-8
Dim Min Max Typ
A 0.77 0.83 0.80
A1 0 0.05 0.02
A3 - - 0.15
b 0.25 0.35 0.30
D 2.95 3.075 3.00
D2 0.82 1.02 0.92
D4 1.01 1.21 1.11
e - - 0.65
E 1.95 2.075 2.00
E2 0.43 0.63 0.53
L 0.25 0.35 0.30
Z - - 0.375
All Dimensions in mm
Dimensions Value (in mm)
C 0.650
G 0.285
G1 0.090
X 0.400
X1 1.120
Y 0.730
Y1 0.500
Y2 0.365
b e
E2
D2
L
D
E
A
Z
A1
A3
D4 D4
C
X1
G1
X
Y1
Y
Y2
G
