ZXTR2005K
Document number: DS36328 Rev. 2 - 2
1 of 7
December 2013
© Diodes Incorporated
ZXTR2005K
A Product Line of
Diodes Incorporated
100V INPUT, 5V 50mA REGULATOR TRANSISTOR
Description
The ZXTR2005K monolithically integrates a transistor, Zener diode
and resistor to function as a high voltage linear regulator. The device
regulates with a 5V nominal output at 15mA. It is designed for use in
high voltage applications where standard linear regulators cannot be
used. This function is fully integrated into a TO252 package,
minimizing PCB area and reducing number of components when
compared with a multi-chip discrete solution.
Applications
Supply voltage regulation in:
Networking
Telecom
Power Over Ethernet (PoE)
Features
Series Linear Regulator Using Emitter-Follower Stage
Input Voltage = 10 to 100V
Output Voltage = 5V ± 10%
Fully Integrated Into a TO252 Package
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case: TO252 (DPAK)
Case Material: Molded Plastic. “Green” Molding Compound
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
Weight: 0.34 grams (approximate)
Ordering Information
(Note 4)
Product
Package
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZXTR2005K-13
TO252 (DPAK)
ZXTR 2005
13
16
2,500
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S more information about Diodes Incorporated’s definitions of Halogen and Antimony free,"Green"
and Lead-Free.
3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at

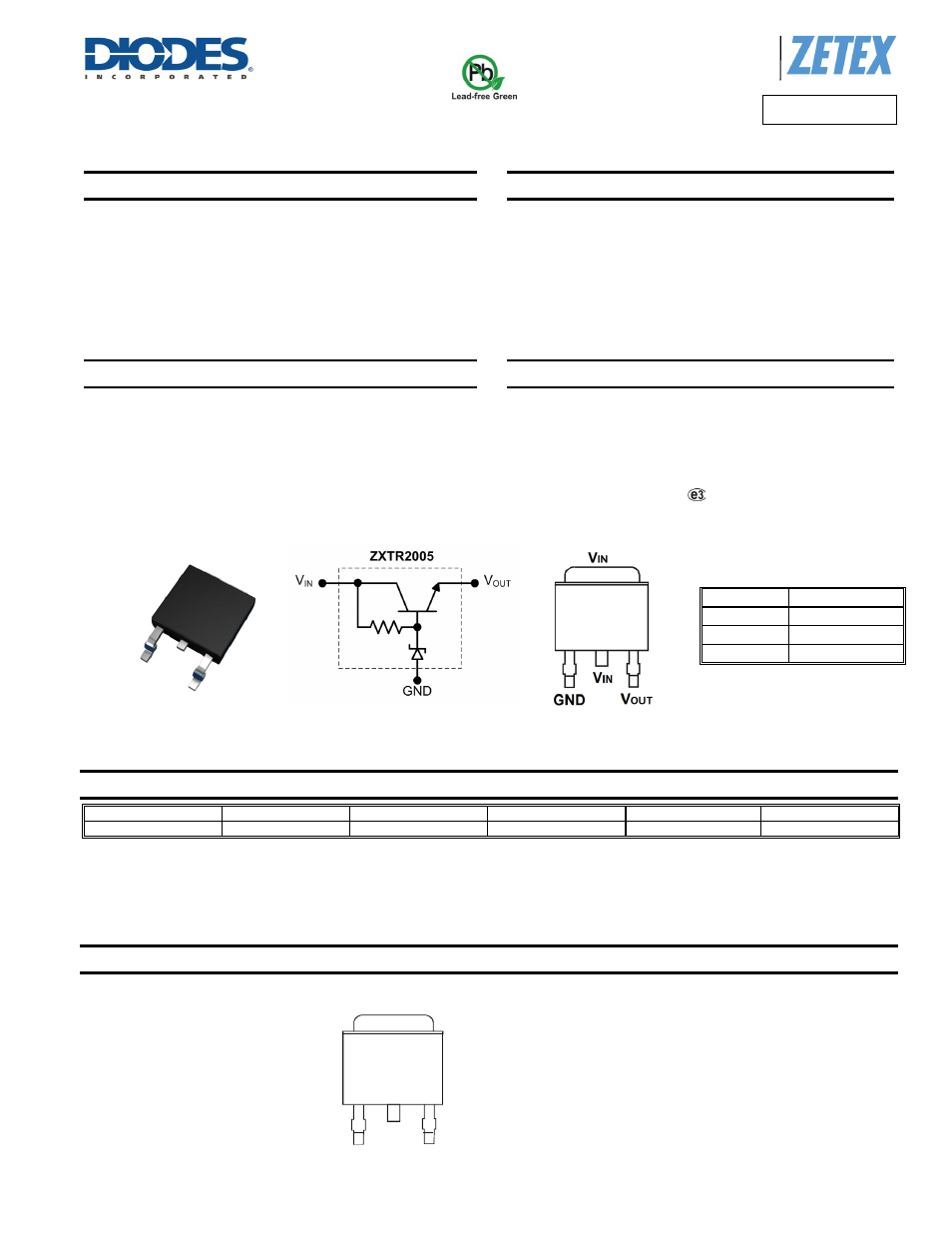

Marking Information
Pin Name
Pin Function
V
IN
Input
Supply
GND Power
Ground
V
OUT
Voltage
Output
Top View
Pin-Out
TO252 (DPAK)
Top View
Top View
Pin-Out
ZXTR
2005
YYWW
ZXTR 2005 = Product Type Marking Code
YYWW = Date Code Marking
YY = Last Digit of Year, (ex: 13 = 2013)
WW = Week Code 01 - 52
